Description

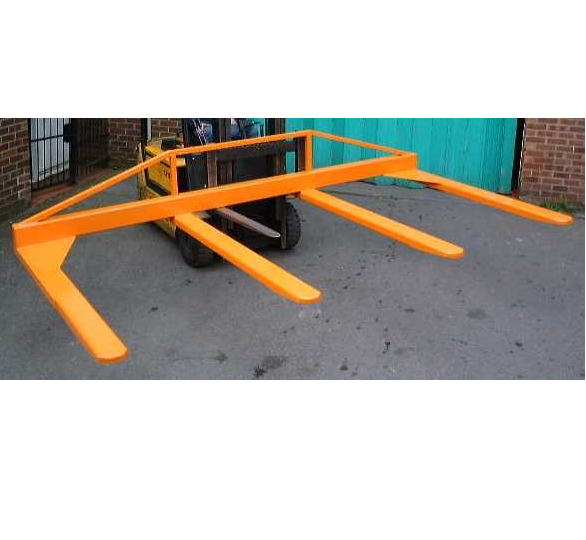

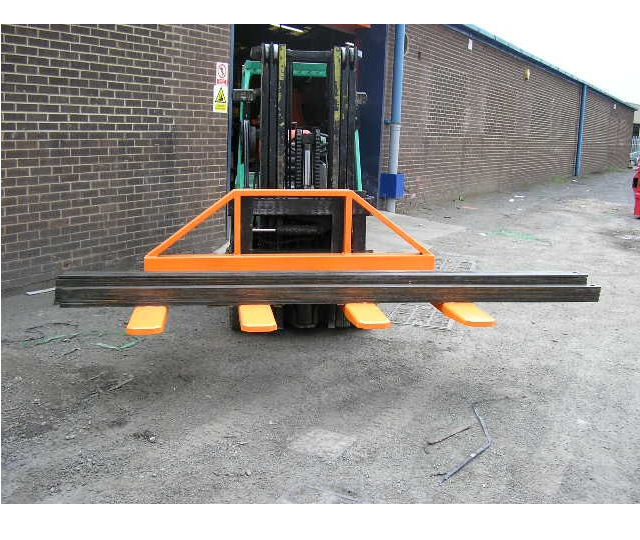

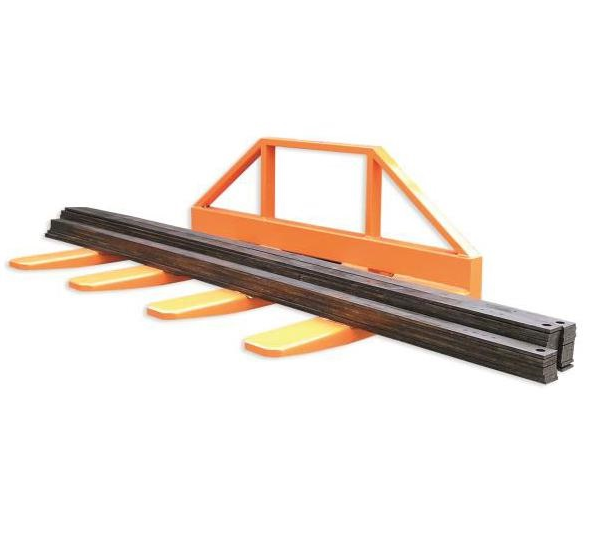

Designed to provide a method of lifting and moving unpalletised loads such as timber planks, sheet steel and tubing, plastic pipes and concrete lintels safely and in turn minimizing the potential of damaging the product.
Standard Features:
• Inner fork pocket positioned to suit site application (advise on placement of order otherwise set at 683mm centres as standard)
• Smooth profiled fork pockets to ensure product care
• Zinc plated heel pins for safe attachment to truck
• Painted bright orange for safety
Prices shown exclude transport. Please contact our sales dept on 0121 454 7514 x 1 for delivery charges.
DOWNLOAD PDF
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Model |
Attachment
width |
Pocket
length |
Max Fork |
Capacity at
600mm LC |
Weight |
C of G |
LLC |
| 8333w |
1500mm |
1200mm |
150 x 50mm |
1500kg |
140kg |
335mm |
100mm |
| 8334w |
2000mm |
1200mm |
150 x 50mm |
2000kg |
160kg |
295mm |
100mm |
| 8335w |
2500mm |
1200mm |
150 x 50mm |
2500kg |
178kg |
265mm |
100mm |
| 8336w |
3000mm |
1200mm |
150 x 50mm |
3000kg |
230kg |
235mm |
100mm |
