Description

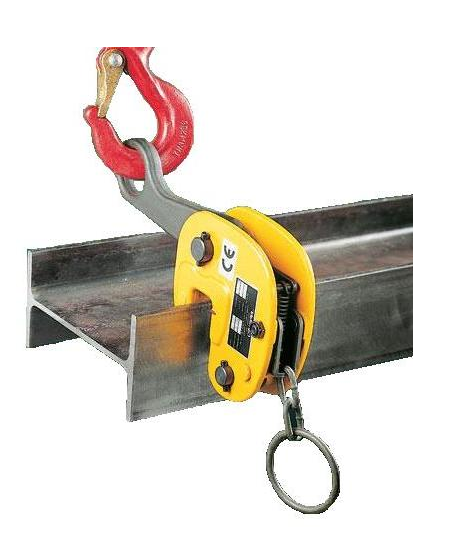

> For lifting and transporting beams in the vertical position
> Capacity 1000kg & 2000kg available
> Clamps have a safety lever to ensure clamp remains locked in operation
> Compact heavy duty design.
Lifting Clamps
Price on Application
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Capacity | Range | D | H | H2 | L | L1 | L2 | T | T2 | Weight | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000kg | 0-20mm | 40mm | 186mm | 53.5mm | 255mm | 131mm | 31mm | 48mm | 16mm | 3kg | 2078w |
| 2000kg | 0-25mm | 40mm | 206mm | 65mm | 280mm | 160mm | 42.5mm | 63mm | 16mm | 6kg | 2079w |
