Bar and Plate Handling Trucks

Price on Application

Category:

Description

Ideal truck for the workshop or factory

> 500kg or 750kg capacity available
> Frame height 1175mm
> Overall 2250 long x 700mm wide
> Rubber cushion wheels

Available as an Open Frame or Plywood Deck

Supplied fully welded and assembled

Please see PDF below for full specification

DOWNLOAD PDF

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-v0zy{font-weight:bold;background-color:#efefef;color:#000000;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

Capacity 500kg 750kg
Overall height 1500mm 1570mm
Frame height 1175mm
Max load depth 450mm
Overall L x W 2250 x 700mm
Rubber cushion wheels 200mm dia 250mm dia

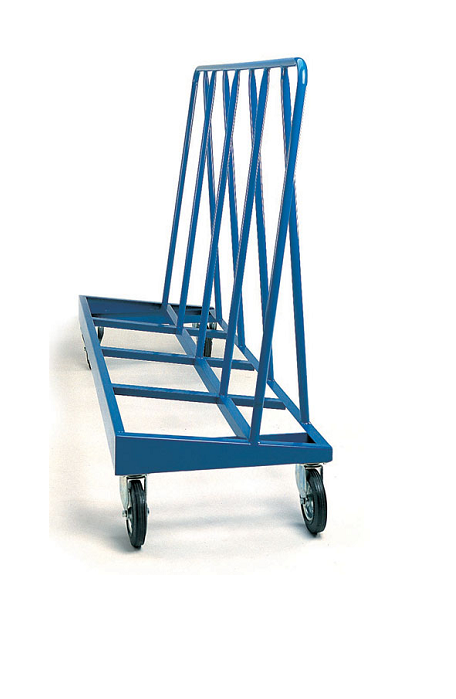

Open Frame
Platform height 285mm 355mm
Weight 84kg 92kg
Type 2001w 2002w
Plywood Deck
Platform height 300mm 370mm
Weight 94kg 104kg
Type 2003w 2004w
