Bunded Enclosed IBC Stores

Price on Application

Description

The base of the bunded store is manufactured from 3mm mild steel sheet with RHS cross members and pressed ribs.

The corner posts, shelf frame and main rails are all made from rolled hollow section.

The back, sides and door are pressed from 2mm mild steel sheet (corrugated as required for additional strength) while the roof is pressed with suitable bracing.

The store is welded around the perimeter, fitted with crane lifting points (maximum 2000kg per lift point), high and low level vents, double hinged doors, a fully seam welded sump with removable mesh decking and is shot blasted before being painted.

The sump fully complies with all the UK regulations relating to sump capacities.

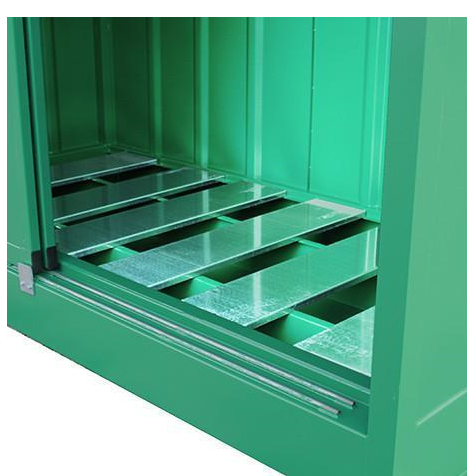

NOTE: The “floor” area above the sump (all stores except 2870w) is covered with galvanised steel channel sections so that loose drums or pallets can be stored directly on to it, while the upper shelf is an open, box section construction designed to support pallets. Grid mesh shelving is available for the upper shelf as a chargeable option for those who wish to have it fitted with a full “floor”. Please contact us for further information.



Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-c3ow{border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-fymr{font-weight:bold;border-color:inherit;text-align:left;vertical-align:top}
.tg .tg-7btt{font-weight:bold;border-color:inherit;text-align:center;vertical-align:top}

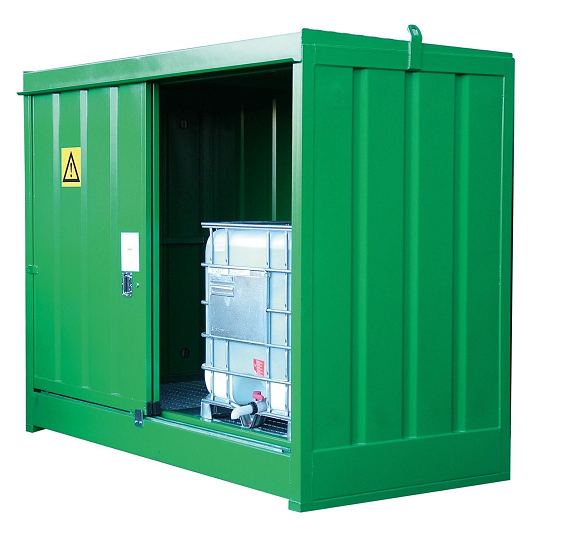

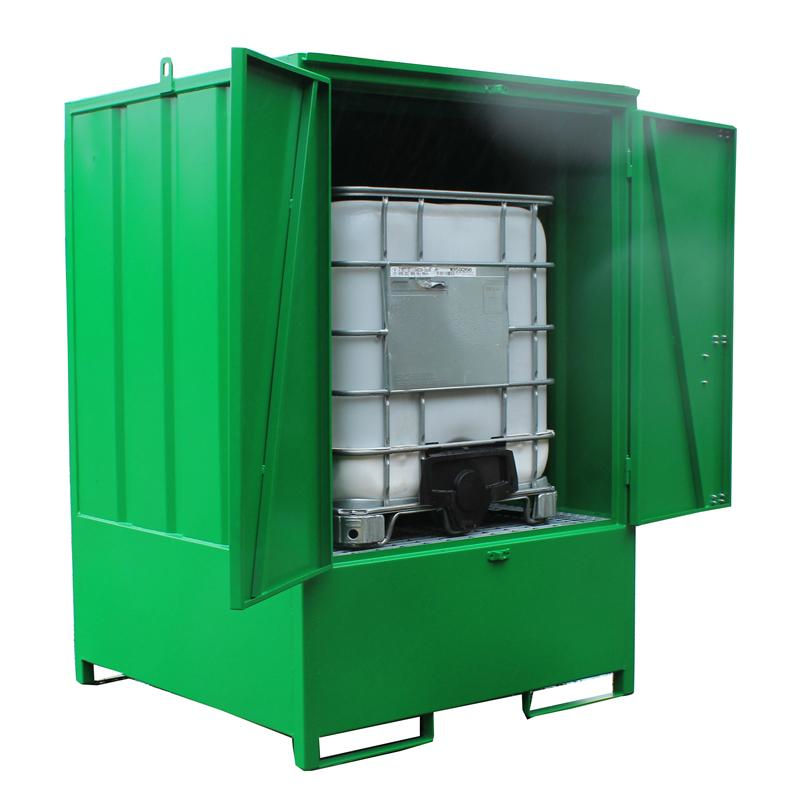

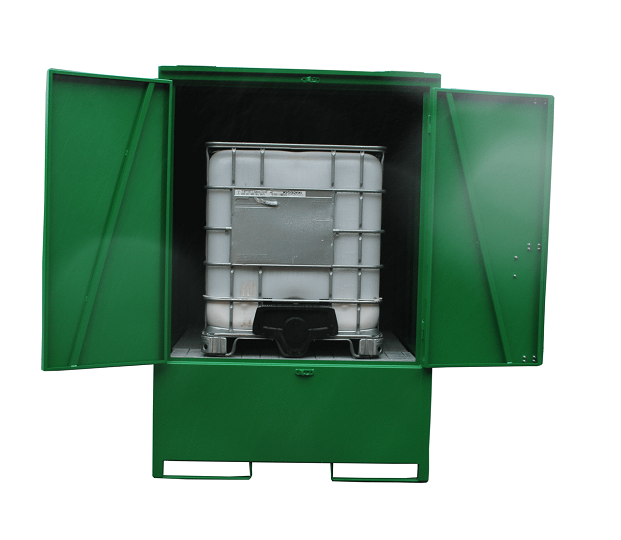

Type 2870w 2871w 2872w
External size L x W 1500 x 1400mm 3000 x 1500 3000 x 1500mm
Overall height
(at highest point on unit)
2414mm 2450mm 3295mm
Nº of containers 1 x 1000L IBC 2 x 1000L IBC 4 x 1000L IBC
Sump capacity 1470L 1125L 1125L
Colour Green RAL 6029 Green RAL 6029 Green RAL 6029
Distributed load 560kg 965kg 1160kg
