Description
°Cable/Hose Protection Ramps – LARGE

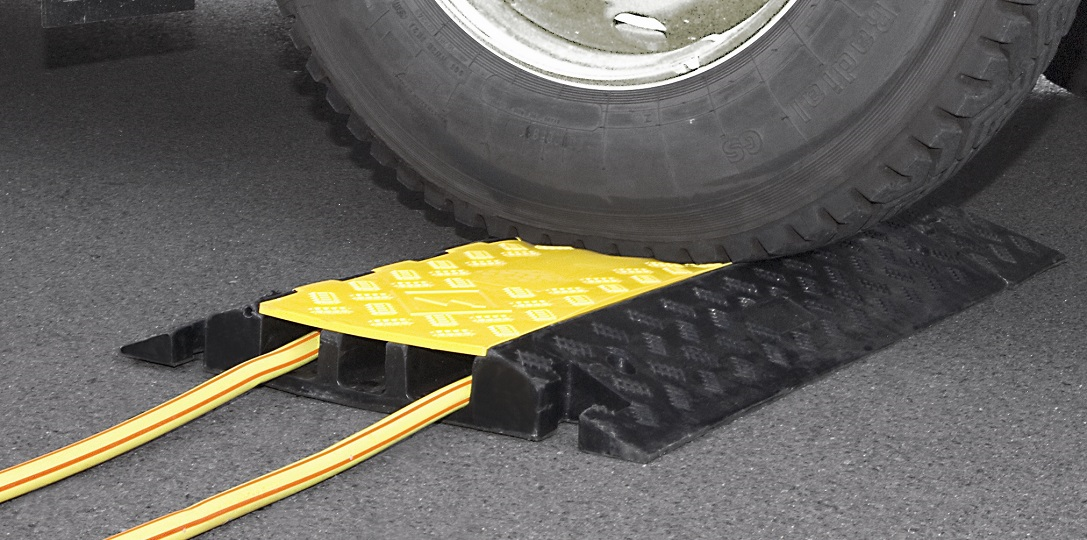

Drive over cables, hoses and pipes without causing them damage.
• Easily and quickly deployed.
• Three top loading channels for cables/hoses.
• Anti-slip hinged top panel.
• Interlocking design feature.
• Strong robust construction.
• Suitable for use with HGV’s and forklift trucks.
Applications: Construction sites, distribution depots, emergency works, road works, etc
Specification:
Centre section
45° angle
End sections made up of tongue & groove sections
Material – Body: Hard rubber.
Material Cover: Polypropylene.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-s6z2{text-align:center}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-e3zv{font-weight:bold}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-yw4l{vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Description |
L x W x H |
Weight |
Type |

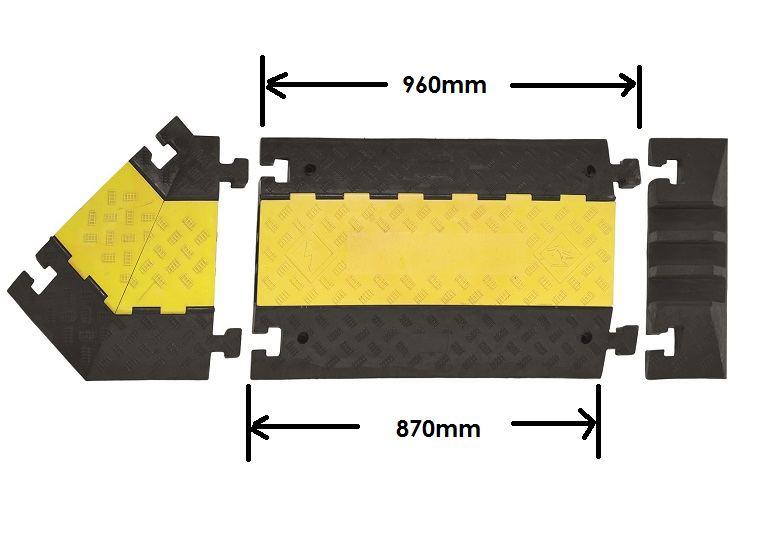

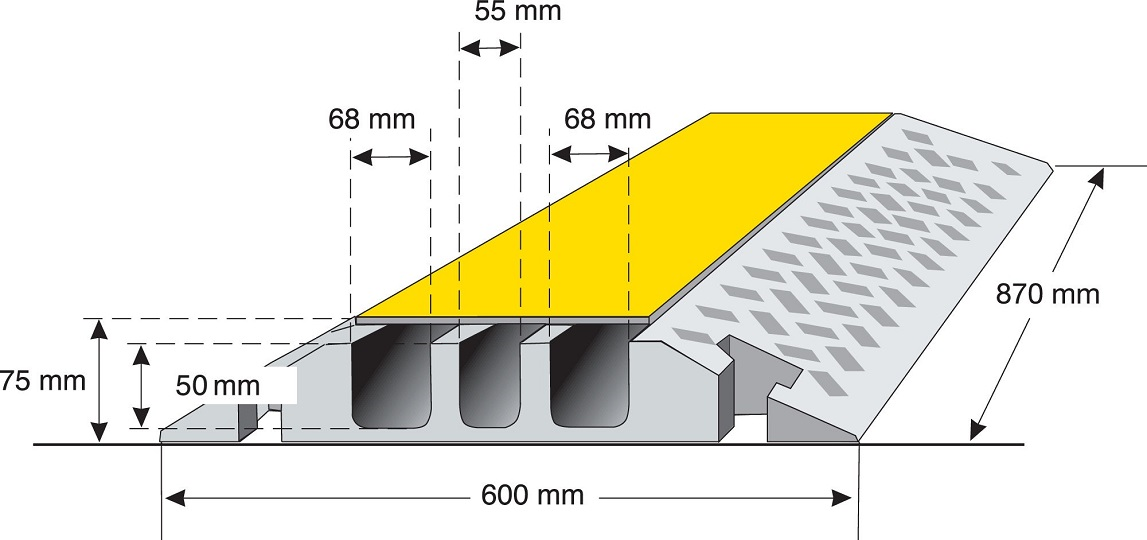

| Centre section |
870 x 600 x 75mm |
26.5kg |
5854w |

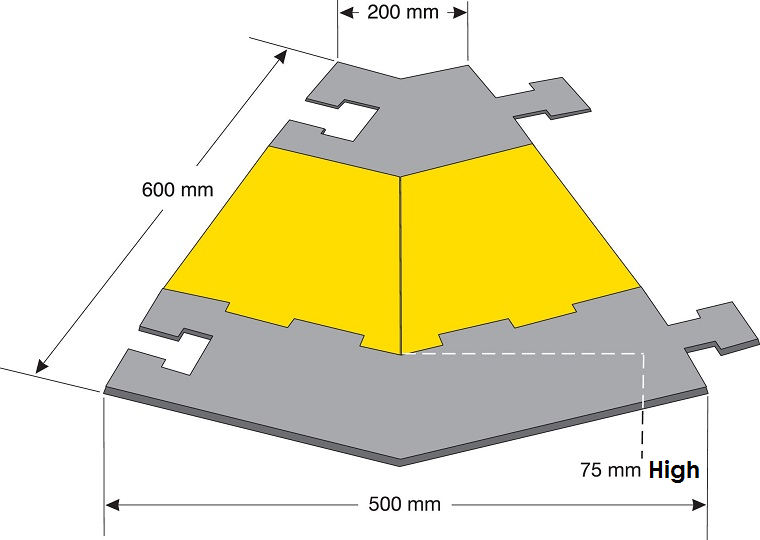

| 45 degree – Left |
500/200 x 600 x 75mm |
12kg |
5855w |
| 45 degree – right |
500/200 x 600 x 75mm |
12kg |
5856w |

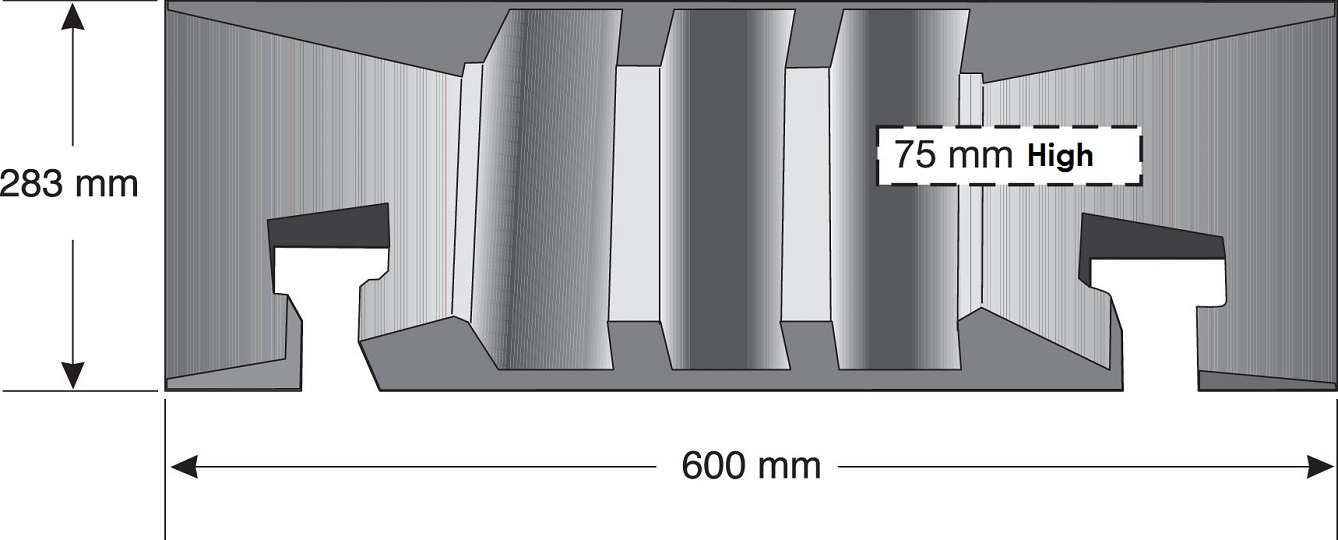

| End section – groove |
283 x 600 x 75mm |
3kg |
5857w |
| End section – tongue |
283 x 600 x 75mm |
3kg |
5858w |
