Classic Boltless Shelving – 400kg*

Price on Application

Category:

Description

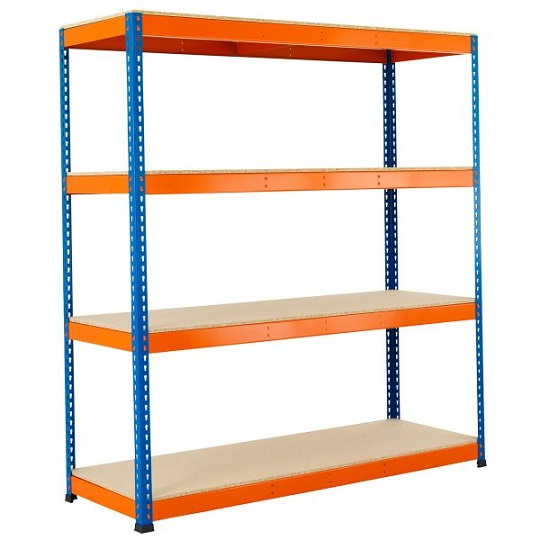

Blue & Orange Racking With Chipboard Shelves

  • Industrial-grade racking designed for intensive use and larger-sized loads
  • Manufactured to certified FEM standards
  • Profiled European-steel frame
  • 4 x 15mm thick chipboard decks with steel central supports
  • Powder-coated Blue and Orange finish
  • Load capacity per shelf: up to 400kg UDL*
  • Shelf adjustment levels: every 38mm (1.5 inches)
  • Simple stud-and-keyhole assembly, adjustment and extension
  • Requires no cross bracing so suitable for double-sided access
  • Powder coated in Blue and Orange
  • Supplied with protective plastic feet
  • Metal feet, tie plates and wall brackets are all available separately



* UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-wr85{font-weight:bold;background-color:#efefef;text-align:center}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-erlg{font-weight:bold;background-color:#efefef;vertical-align:top}
.tg .tg-yzt1{background-color:#efefef;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}
.tg .tg-hgcj{font-weight:bold;text-align:center}

1980mm high racking with 4 levels – 400kg udl per level 2440mm high racking,with 4 levels – 300kg udl per level
H x W x D Bay Type Extra shelf Type H x W x D Bay Type Extra shelf Type
1980 x 1220 x 455mm 6307w 6327w 2440 x 1525 x 455mm 6347w 6362w
1980 x 1220 x 610mm 6308w 6328w 2440 x 1525 x 610mm 6348w 6363w
1980 x 1220 x 760mm 6309w 6329w 2440 x 1525 x 760mm 6349w 6364w
1980 x 1220 x 915mm 6310w 6330w 2440 x 1525 x 915mm 6350w 6365w
1980 x 1220 x 1220mm 6311w 6331w 2440 x 1525 x 220mm 6351w 6366w
1980 x 1525 x 455mm 6312w 6332w 2440 x 1830 x 455mm 6352w 6367w
1980 x 1525 x 610mm 6313w 6333w 2440 x 1830 x 610mm 6353w 6368w
1980 x 1525 x 760mm 6314w 6334w 2440 x 1830 x 760mm 6354w 6369w
1980 x 1525 x 915mm 6315w 6335w 2440 x 1830 x 915mm 6355w 6370w
1980 x 1525 x 1220mm 6316w 6336w 2440 x 1830 x 1220mm 6356w 6371w
1980 x 1830 x 455mm 6317w 6337w 2440 x 2440 x 455mm 6357w 6372w
1980 x 1830 x 610mm 6318w 6338w 2440 x 2440 x 610mm 6358w 6373w
1980 x 1830 x 760mm 6319w 6339w 2440 x 2440 x 760mm 6359w 6374w
1980 x 1830 x 915mm 6320w 6340w 2440 x 2440 x 915mm 6360w 6395w
1980 x 1830 x 1220mm 6321w 6341w 2440 x 2440 x 1220mm 6361w 6396w
1980 x 2440 x 455mm 6322w 6342w ACCESSORIES TO SUIT ALL BAYS
1980 x 2440 x 610mm 6323w 6343w
1980 x 2440 x 760mm 6324w 6344w Description Type

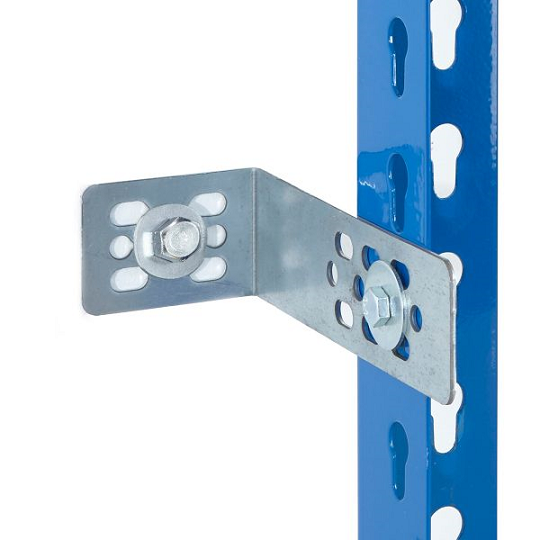

1980 x 2440 x 915mm 6325w 6345w Wall Tie – use a minimum of 2 to fix a bay to the wall, 100mm deep 6375w

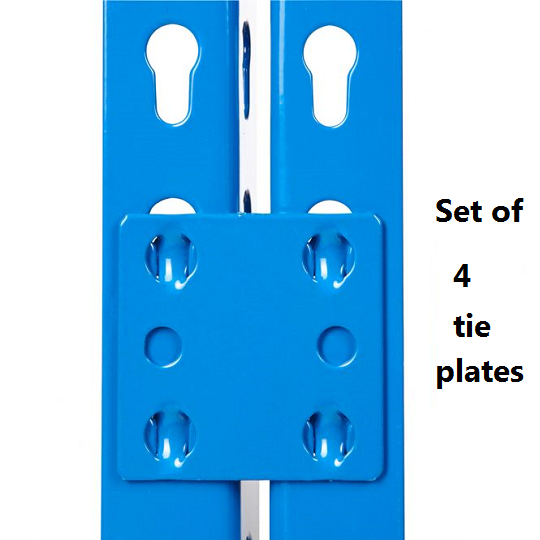

1980 x 2440 x 1220mm 6326w 6346w Tie Plates – set of 4, joins 2 bays side by side or back to back 6376w

* UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.
