Drum Positioner with Tines

£1,239.00£1,657.00

£1,239.00
£1,657.00

Description

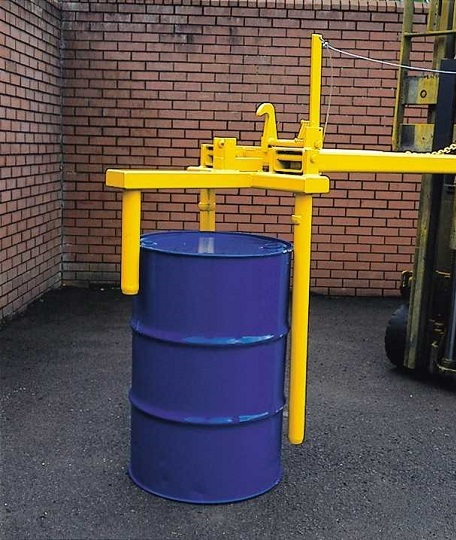

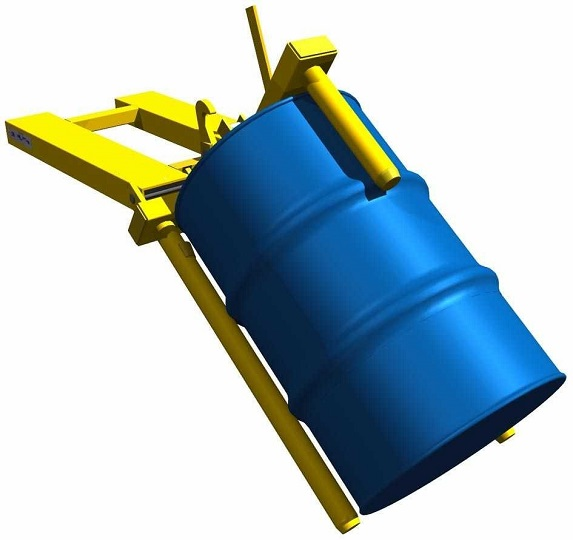

This forklift drum positioner offers a unique means of manipulating drums from horizontal to vertical and vice-versa without leaving the seat of the fork truck.
Completely mechanical in operation, it can be used for transporting drums and for unloading and loading vehicles, drum stands, drum racks etc.
Suitable for use with steel, “L” and “XL” plastic drums of 210L capacity.

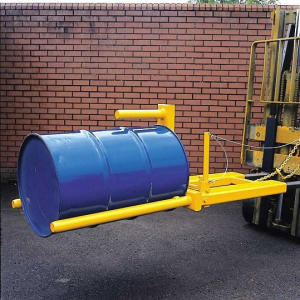

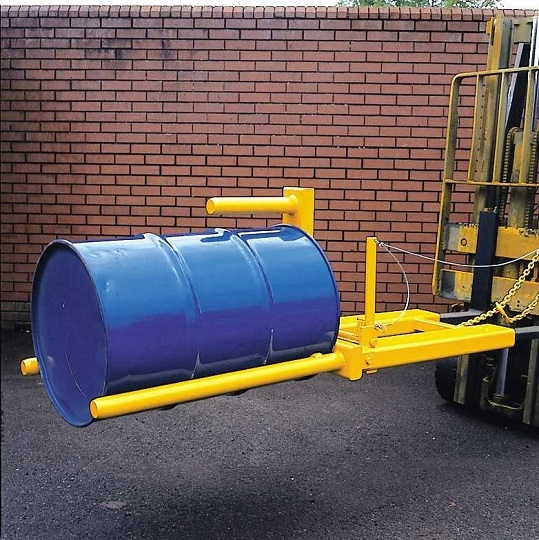

Will allow all four drums to be taken off a pallet from the corners and positioned horizontally. Is also suitable for pyramid-stacking of drums.

Available in the following options:

>  3 tine model – Type 4930w.

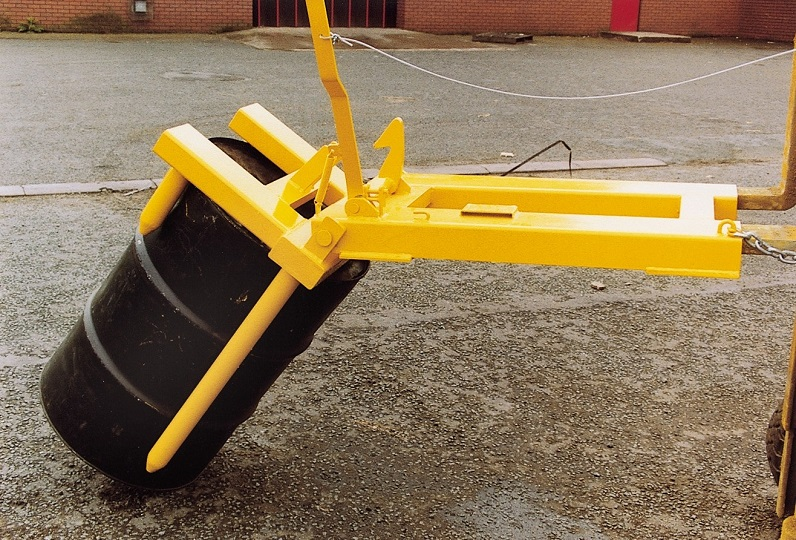

> 4 tine model – Type 4931w. (This allows drums to be stacked in racking where clearance above the drums is minimal. It also allows 4 drums to be placed on or removed from a pallet when approached from the sides)

DOWNLOAD PDF

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

Type No of
Drums
Drum Types Load
Capacity
Lost Load
Centre
Max Fork
size
Max Fork
Spread
C of G
Min
Product
weight
4930w 1 1, 2 400kg 165mm 140 x 50mm 567mm 770mm 95kg
4931w 1 1, 2 400kg 164mm 140 x 50mm 567mm 850mm 106kg
