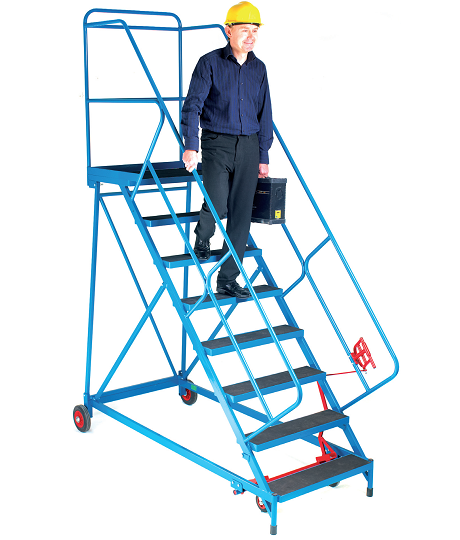

Easy Slope Mobile Safety Steps – 750mm treads



Price on Application

Description

• Easy slope Mobile Safety Steps have a reduced angle of 48° which enables safer access. The user can comfortably walk forward down the steps

• Expanded steel treads 750mm wide x 180mm deep.

• Platform handrail height: 1000mm

• Ideal for stock picking in stores, the warehouse and industrial applications

• Steps are manoeuvrable yet immobile when in use

• 6 to 12 tread steps are supplied folded for delivery. Easy to erect.

• Platform 800mm wide x 500mm deep has double safety bars & kickplate around 3 sides of the deck

• 2 x Ø200mm black rubber tyred front wheels & 2 x Ø125mm rubber tyred swivel castors



Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-s6z2{text-align:center}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

No of Treads Platform Height Overall *H x W x D Weight Type
3 690mm 1790 x 960 x 1195mm 42kg 3142w
4 920mm 2020 x 960 x 1380mm 51kg 3143w
5 1150mm 2250 x 960 x 1585mm 69kg 3144w
6 1380mm 2480 x 980 x 1795mm 82kg 3145w
7 1610mm 2710 x 1030 x 1835mm 96kg 3146w
8 1840mm 2940 x 1080 x 2000mm 109kg 3147w
9 2070mm 3170 x 1130 x 2165mm 123kg 3148w
10 2300mm 3400 x 1180 x 2335mm 136kg 3149w
11 2530mm 3630 x 1230 x 2500mm 154kg 3150w
12 2760mm 3860 x 1280 x 2670mm 173kg 3151w

* Please check overall height before ordering
