Description
• Comfortable unit for safe working at height.
• SWL: 150kg
• All welded steel construction
• 45° angle steps – forward descent design
• Lever brake locking system immobilises front castors
• Extra wide 1000mm treads
• Punched metal treads 250mm deep
• Handrails either side of steps and 914mm over platform
• Platform area: 1000mm wide x 500mm deep
• Rear wheels: back axle mounted rubber
• Front wheels: swivel nylon castors
• Colour: Blue only

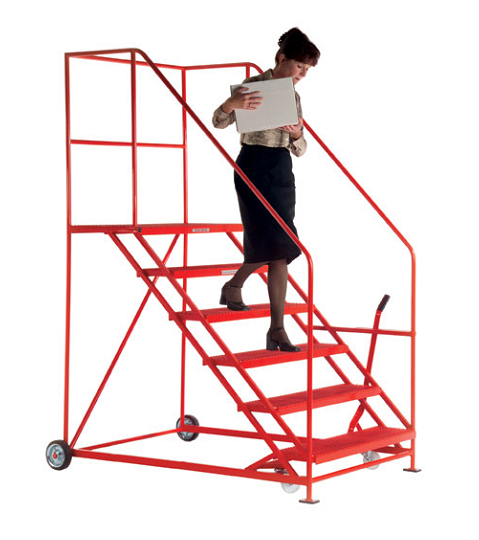

Please note: image shown is for illustration purposes only and product supplied may differ in appearance to image shown.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}
Easy Slope Safety Steps – 1000mm wide treads
Platform size: 1000 x 500mm
|
| Treads |
Platform Height |
Overall H x W x L |
Type |
| 3 |
648mm |
1598 x 1200 x 1040mm |
9287w |
| 4 |
864mm |
1814 x 1200 x 1240mm |
9288w |
| 5 |
1080mm |
2030 x 1200 x 1440mm |
9289w |
| 6 |
1295mm |
2245 x 1200 x 1640mm |
9290w |
| 7 |
1511mm |
2461 x 1200 x 1840mm |
9291w |
| 8 |
1727mm |
2677 x 1200 x 2040mm |
9292w |
| 9 |
1943mm |
2893 x 1250 x 2240mm |
9293w |
| 10 |
2159mm |
3109 x 1300 x 2440mm |
9294w |
| 11 |
2375mm |
3325 x 1350 x 2640mm |
9295w |
| 12 |
2591mm |
3541 x 1400 x 2840mm |
9296w |
| Accessories |
| Description |
Type |
| Additional 250mm platform length* |
9298w |
| Lift & lock rail* |
9299w |
| Chain* |
9300w |
* Factory fitted
