Description

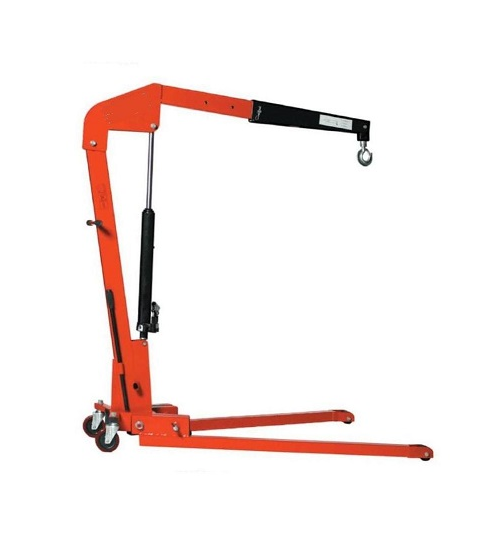

> Heavy duty folding mobile crane with a maximum capacity of 1000kg or 2000kg
> Gap between legs: 960mm widest point; 370mm narrowest point

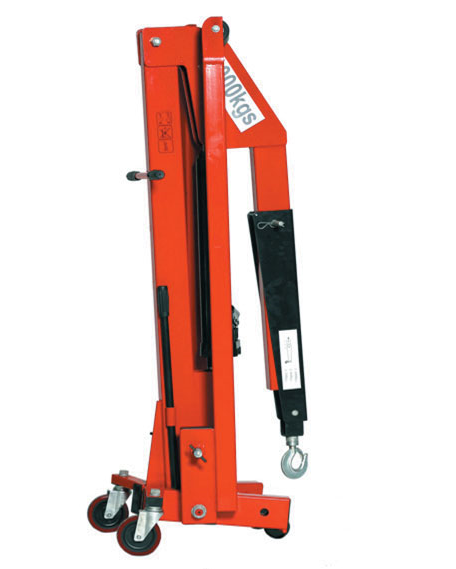

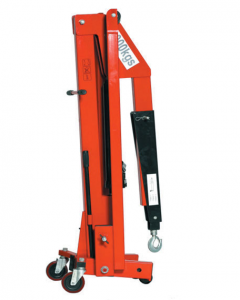

> Can be folded down in workshop to save space
> Three position telescopic jib
> Manufactured from hollow steel box section
> Double acting quick lifting hydraulic hand pump unit
> Relief valve prevents overloading
> Heavy duty forged swivel hook with safety catch turns 360°
> Tested to 125% overload
DOWNLOAD PDF
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-yla0{font-weight:bold;text-align:left;vertical-align:middle}
Model |
2584w |
2585w |
Rated capacity |
Position 1 |
1000kg @ 1230mm |
2000kg @ 1290mm |
Position 2 |
800kg @ 1380mm |
1700kg @ 1440mm |
Position 3 |
700kg @ 1530mm |
1500kg @ 1590mm |
Dimension |
A |
1675mm |
1690mm |
B |
90mm |
205mm |
C |
1630mm |
1900mm |
D |
1230mm |
1290mm |
E |
150mm |
150mm |
F |
2445mm |
2705mm |
G |
2330mm |
2505mm |
H |
– |
– |
I |
245mm |
230mm |
Overall width |
1120mm |
1165mm |
Folded down dimensions |
1700 x 460 x 550mm |
1900 x 590 x 580mm |
Roller dia (front) |
78mm |
200mm |
Wheel dia (rear) |
125mm |
125mm |
Nett weight |
115kg approx |
165kg approx |
