Description

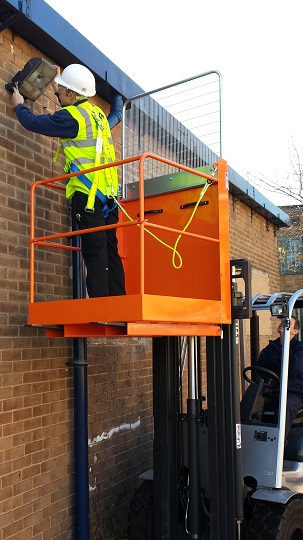

- 2 Man fork lift working platform provides safe working access for maintenance and stock checking purposes
- Anti-slip working platform deck with kickboard surround
- Folding back guard for ease of storage & transportation
- Automatic locking & unlocking gates on 1150w & 1151w
- Safety harness attachment rings
- Platform is secured to the forks with zinc plated heel pins
- Compliant to HSE Document PM28 4th edition
Please see PDF below for full specification
DOWNLOAD PDF
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Description |
Folding Backguard Forklift Work Platform |
| Personal access |
Lift-up bar |
Side gate |
Side gate |
| SWL / Capacity |
250kg |
250kg |
250kg |
| Overall L x W x H |
950 x 950 x 2120mm |
950 x 950 x 2120mm |
1250 x 950 x 2120mm |
| Fork centres |
525mm |
525mm |
525mm |
| Maximum fork size |
150 x 50mm |
150 x 50mm |
150 x 50mm |
| C of G |
525mm |
525mm |
585mm |
| Weight |
102kg |
104kg |
125kg |
| Type |
1149w |
1150w |
1151w |
