Fort Atlas Mobile Steps

Price on Application

Category:

Description

  • Tread size: 500mm wide x 160mm deep
  • Rated capacity: 150kg
  • Platform size: 550mm wide x 380mm deep
  • Handrail height above platform: 1000mm
  • Mobile on 160mm dia rubber tyred rear castors, and spring loaded swivel castors



  • Expanded Steel Mesh Treads
  • Unique grip lift mechanism facilitating movement on retractable castors
  • Durable powder coated finish
  • Supplied fully assembled.



  • Factory fitted inward opening gate available for rear of platform at extra cost. Please select Type 8132w from options at same time as ordering the steps.



Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-l2oz{font-weight:bold;text-align:right;vertical-align:top}

No of steps Platform height Overall H x W x D Type
2 750mm 1750 x 690 x 810mm 8119w
3 1000mm 2000 x 690 x 870mm 8120w

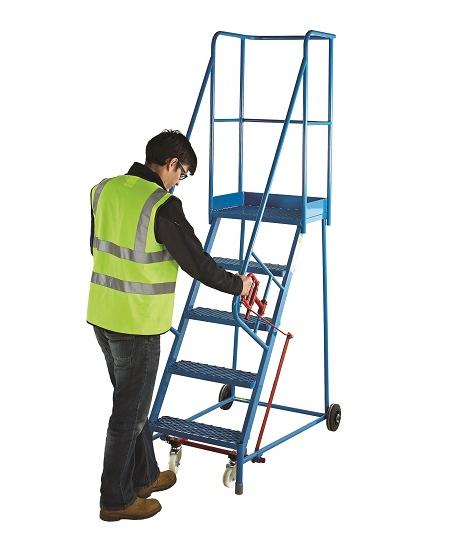

4 1250mm 2250 x 780 x 1130mm 8121w
5 1500mm 2500 x 780 x 1290mm 8122w
6 1750mm 2750 x 880 x 1450mm 8123w
7 2000mm 3000 x 930 x 1610mm 8124w
8 2250mm 3250 x 980 x 1770mm 8125w

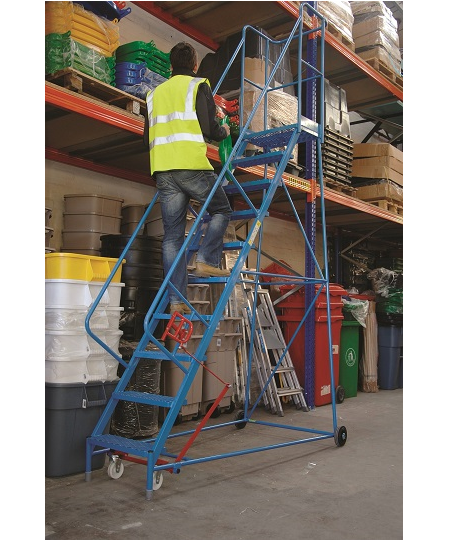

9 2500mm 3500 x 1030 x 1930mm 8126w
10 2750mm 3750 x 1080 x 2090mm 8127w
11 3000mm 4000 x 1130 x 2250mm 8128w
12 3250mm 4250 x 1180 x 2410mm 8129w
13 3500mm 4500 x 1230 x 2570mm 8130w
15 3750mm 4750 x 1280 x 2730mm 8131w

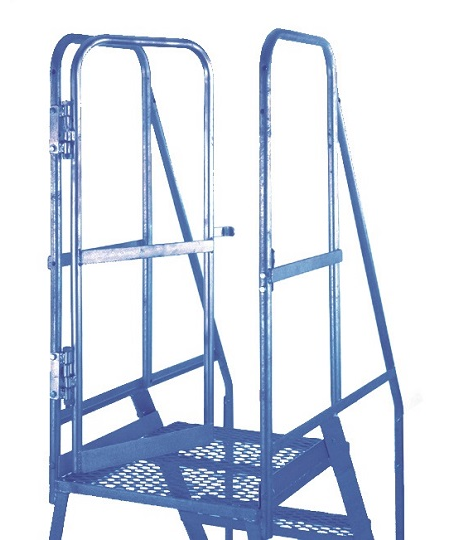

Rear Inward Opening Gate 8132w
