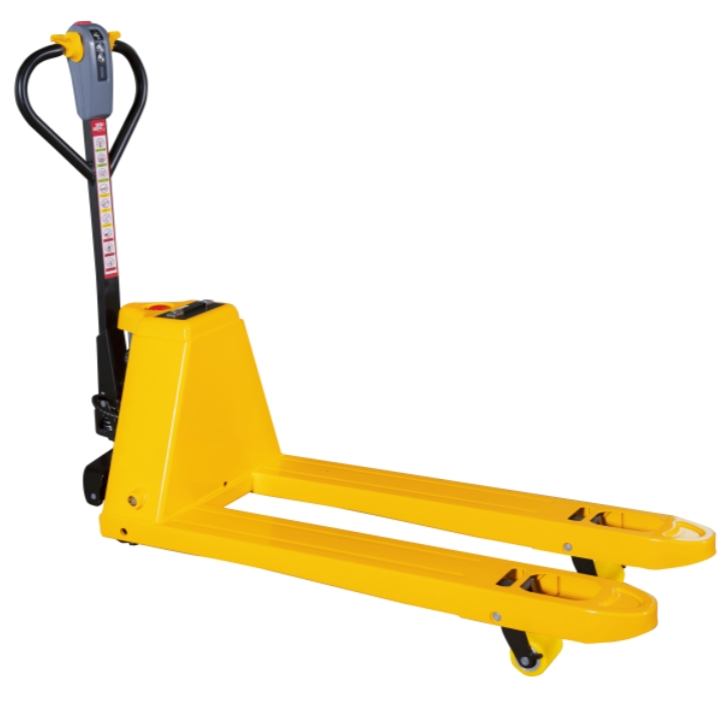

Fully Electric Pallet Truck – 1800kg



Price on application

SKU: 9792w Category:

Description

Based upon our best selling fully electric pallet truck, this model features a larger 0.85kw brushless motor that increases the capacity 1800kg for heavier duty users. Again the motor is brushless design so maintenance free. Coupled with it’s efficient lithium battery it offers maximum running time between charges.

If the truck is required to be operated continuously, you also have the option of purchasing an extra battery which are very easy to change – in fact in seconds. These allow the truck to be used on a fully charged battery, whilst the spent battery is being charged with the supplied external battery charger.

Rated at 1800kg capacity and a slope/climbing gradeability of 6% laden, 20% unladen—this is a powerful machine with average life 3 times greater than a manual pallet truck. Despite this, it’s a compact unit, only 32mm longer than a standard pallet truck.

Features a multi-function handle for forward/reverse, lifting and lowering which also has an LCD display, horn and emergency stock button.

Dimensions across the forks are 550x1150mm, this is by far the most common size used for the most common Euro Pallets of 120x80cm – but it will also fit wider pallets.

Please note this machine is not IP rated against direct contact with water. It is designed to be used in a warehouse type environment and should not be stored or operated in damp or wet conditions – as this will void the warranty.



Specification

.tg {border-collapse:collapse;border-spacing:0;} .tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; overflow:hidden;padding:10px 5px;word-break:normal;} .tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;} .tg .tg-baqh{text-align:center;vertical-align:top} .tg .tg-0lax{text-align:left;vertical-align:top}
Type 9792w
Capacity 1800kg
Load centre 600mm
Fork L x W 1150mm x 550mm
Fork section W x D 160mm x 58mm
Lowered fork height 82mm +/-2mm
Raised fork height 197mm
Overall L x W 1552mm x 550mm
Overall height with tiller 1276mm
Overall height without tiller 520mm
Minimum radius 1353mm
Minimum aisle width required (800 x 1200mm) 1887mm
Minimum aisle width required (1000 x 1200mm) 1918mm
Maximum travelling speed – laden / unladen 4kmh / 5kmh
Maximum lifting speed – laden / unladen 19kmh / 19kmh
Gradeability – laden / unladen 6% / 20%
Drive (steer) wheel – Polyurethane 130 x 55mm
Loading wheel – polyurethane 80 x 70mm
Travel motor DC 0.85kw brushless
Lifting motor DC 0.5kw
Battery 24v
Charger 20ah lithium
