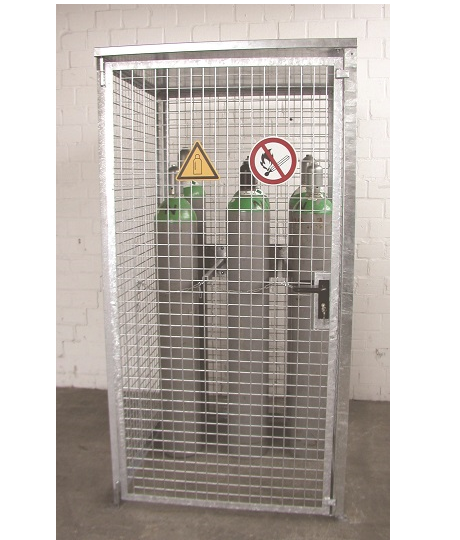

Gas Cylinder Storage Cages for external use

Price on application

Category:

Description

> Gas Cylinder Storage Cages are ideal for storing a variety of Cylinders in an external environment
> Heavy duty mesh panels have a galvanised finish
> Mesh size 50 x 50mm

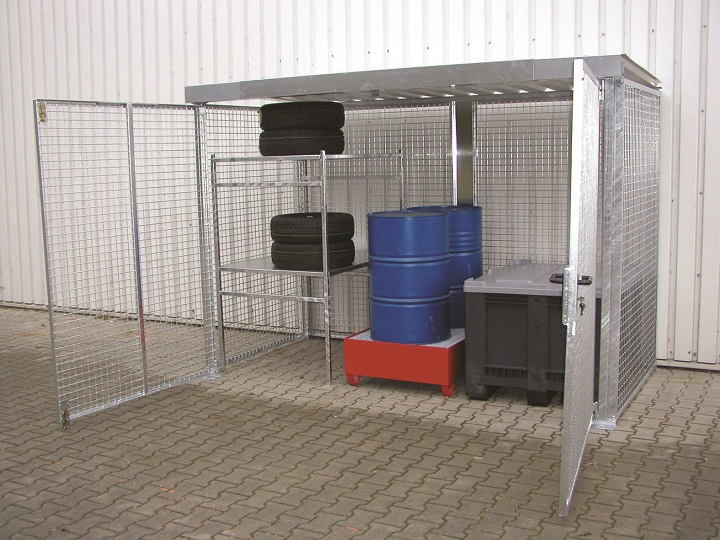

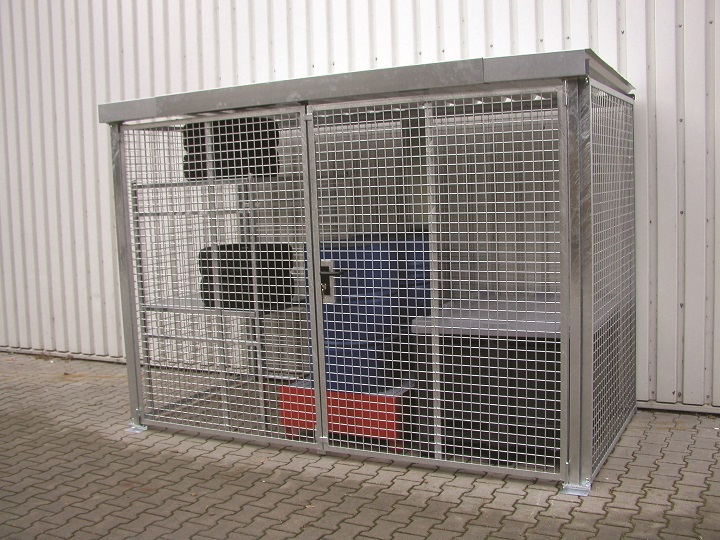

> Units are supplied with a lockable single wing door to provide extra security as standard but double doors option is available.
> Mesh floors are available on request
> All items supplied Knock-Down with full instructions for quick assembly



https://www.wilmat.co.uk/wp-content/uploads/2017/11/2373w-2383w-gas-cylinder-storage-cage.pdf

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}

Cylinders
stored
Ø200mm 		Overall
L x W		 Cage without roof
(Single Door)		 Double
doors		 Cage with roof
(Single Door)		 Double
doors
Height Weight Type Type Height Weight Type Type
16 1085 x 1085mm 2060mm – – 2180mm 124kg 2373w 2373DD
32 2100 x 1085mm 2060mm 155kg 2374w 2374DD 2180mm 171kg 2375w 2375DD
48 2100 x 1500mm 2060mm 167kg 2376w 2376DD 2180mm 184kg 2377w 2377DD
60 2400 x 1500mm 2060mm 195kg 2378w 2378DD 2180mm 215kg 2379w 2376DD
78 3100 x 1500mm 2060mm 217kg 2380w 2380DD 2180mm 239kg 2381w 2381DD
104 3100 x 2100mm 2060mm 254kg 2382w 2382DD 2180mm 280kg 2383w 2383DD
Optional Accessories
Description Overall size Type

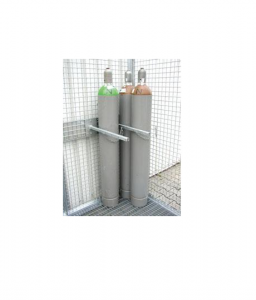

Gas cylinder supports 623mm long 2384w

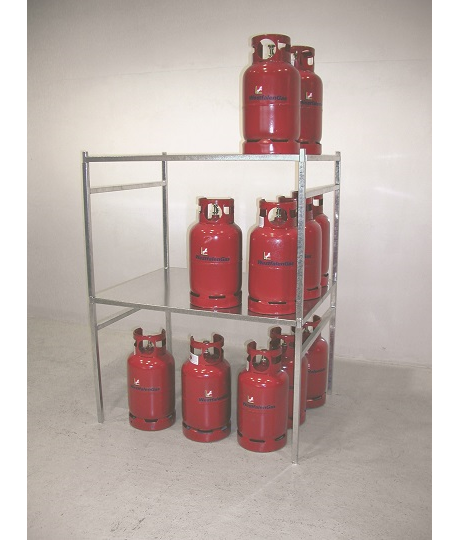

LPG storage rack
(Stores upto 12 x Ø300mm LPG cylinders)		 1300 x 1000 x 850mm 2385w
