Price on Application

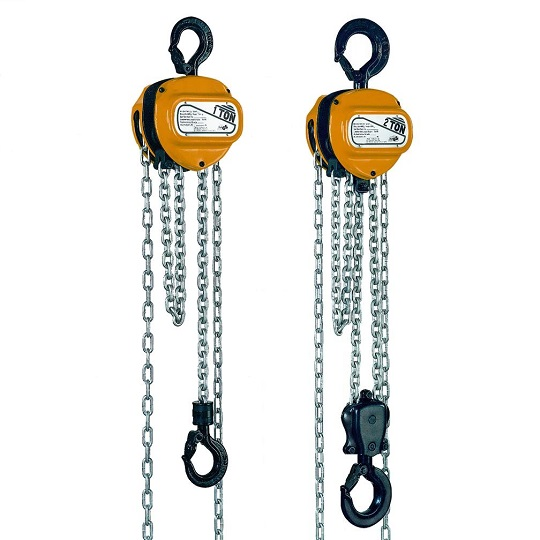

> Heavy duty lightweight hand operated chain hoists
> Capacities available from 500kg to 3000kg – see dimensions below.
> Minimum effort required to lift load
> Reliable safety brake holds load in any position
> Supplied with safety hook complete with spring load catch
> 3m long galvanised high tensile chain
> Roller and ball bearing parts
> Automatically activated load pressure brake
> Tested to 25% overload – test certificate supplied
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Capacity | Force on chain | Chain Falls | Type |
|---|---|---|---|
| 500kg | 26 daN | 1 | 1720w |
| 1000kg | 36 daN | 1 | 1721w |
| 2000kg | 37 daN | 2 | 1722w |
| 3000kg | 42 daN | 1 | 1723w |
