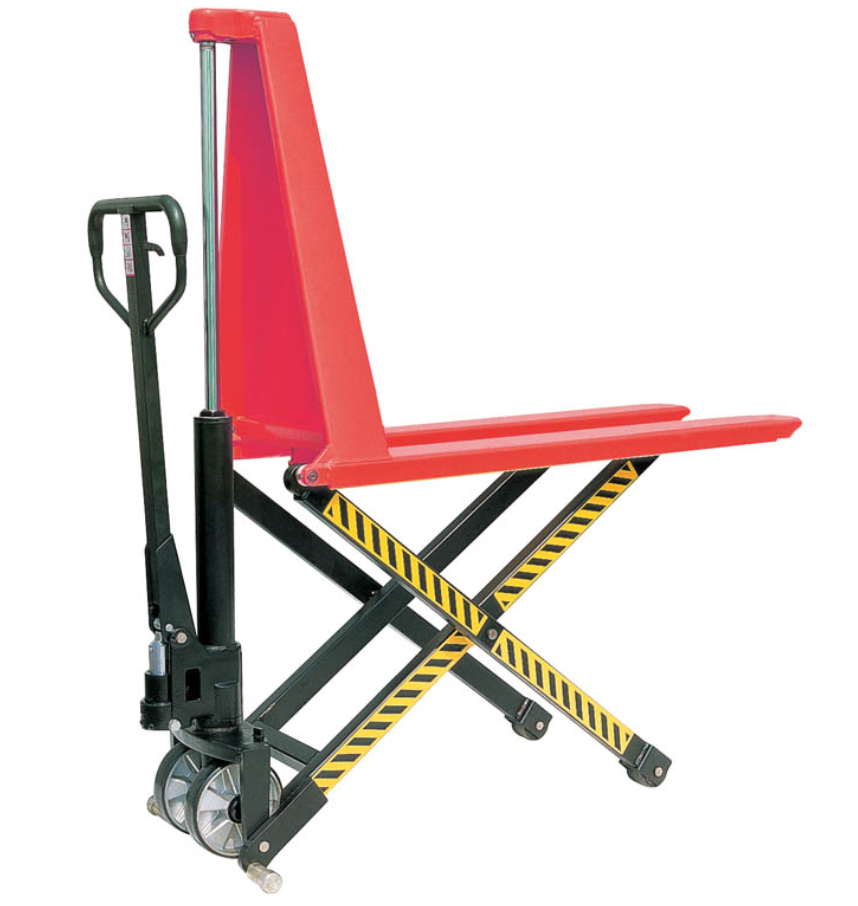

Description
> Capacity 1000kg
> Maximum lift height 800mm
> Minimum fork height 85mm
> Fork length x width 1170 x 160mm
> Width over forks option 540mm or 680mm
> Robust powder coated steel construction
> Ideal for use as feeder/off loader
> Single hydraulic ram
> Suitable with open bottomed pallets only
> Single constant lifting speed (has a quick lift below 250kg)
> Sensory valve automatically controls lowering speed when loaded
> Support legs have stabilisers which come into effect when forks are 420mm above ground
> Polyurethane wheels & rollers
PLEASE NOTE: COLOUR/APPEARANCE MAY DIFFER TO IMAGE SHOWN ABOVE
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 20px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 20px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-6f4q{font-weight:bold;font-size:14px;font-family:Arial, Helvetica, sans-serif !important;;text-align:center}
.tg .tg-tvby{font-size:14px;font-family:Arial, Helvetica, sans-serif !important;;vertical-align:top}
.tg .tg-3a3g{font-size:14px;font-family:Arial, Helvetica, sans-serif !important;;text-align:center;vertical-align:top}
.tg .tg-w7zc{font-weight:bold;font-size:14px;font-family:Arial, Helvetica, sans-serif !important;}
| Type
| 2517w
| 2518w
|
| Capacity |
1000kg |
1000kg |
| Fork length |
1170mm |
1170mm |
| Fork spread – overall |
540mm |
680mm |
| Fork section |
160 x 50mm |
160 x 50mm |
| Lowered fork height |
85mm |
85mm |
| Raised fork height |
800mm |
800mm |
| Steer wheels – polyurethane |
180 x 50mm |
180 x 50mm |
| Load rollers – polyurethane |
75 x 50mm |
75 x 50mm |
