HD Impact Protection Railing System

Price on Application

Category:

Description

The BLACK BULL HD Impact Protection Railing System is engineered for heavy duty protection of pedestrian walkways etc.

• Provides protection for pedestrians from vehicular traffic.
• Superior build quality and strength.
• Modular design for quick and easy installation.

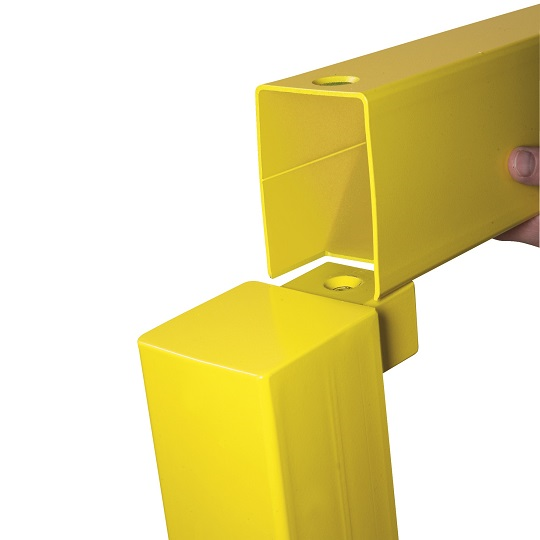

• Counter sunk bolts secure rails to posts.
• Ideal for customised applications.
• Can be easily extended at any stage.
• Damaged sections are easily replaced.
• Easily secured with bolts (supplied separately).

Applications:
Segregate traffic lanes from pedestrians (forklift lanes/pedestrian paths), ideal for protecting work areas, equipment, machinery and plant.

Specifications:

Posts
• Size: 100 x 100mm square
• Height: 500mm and 1,000mm
• Base plate: 200 x200 x 10mm thick (drilled 4 fixing holes)

Lateral rails
• Size: 120mm x 80mm x 4mm wall
• Lengths: 1,000, 1,200, 1,500, or 2,000mm

Finishes:
• Interior: Powder coated yellow
• Exterior: Hot Dip Galv., powder coated yellow



Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-va2a{background-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-ee30{background-color:#ffffff;border-color:inherit;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-wa1i{font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-7bjv{background-color:#680100;border-color:inherit;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-4px2{background-color:#680100;border-color:inherit;color:#ffffff;text-align:center;vertical-align:top}
.tg .tg-3xi5{background-color:#ffffff;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-rq3n{background-color:#ffffff;border-color:inherit;text-align:center;vertical-align:middle}
.tg .tg-7g6k{background-color:#ffffff;border-color:inherit;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-nrix{text-align:center;vertical-align:middle}

Impact Protection Railing System
Posts – 1,000mm High, Yellow 		Description Finish Height Width Depth Weight Type

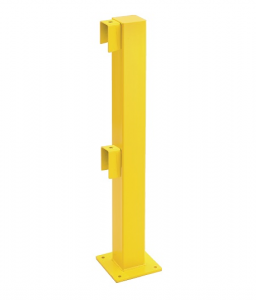

Image Upright post for start/end powder coated 1000mm 100mm 100mm 17kg 5827w
Image Upright centre post 1000mm 100mm 100mm 18kg 5828w

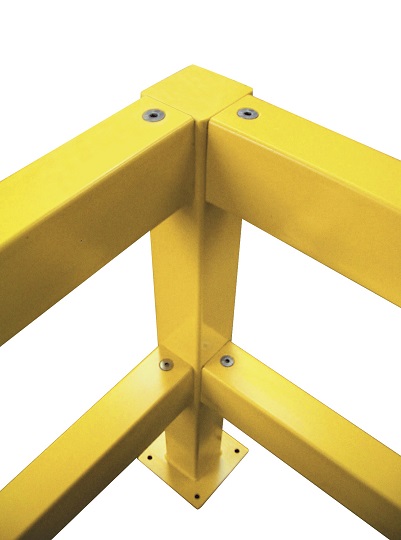

Image Upright corner post 1000mm 100mm 100mm 18kg 5829w
Impact Protection Railing System
Lateral Rails, Yellow		 Description Finish Height Width Depth Weight Type
Image Traverse bar powder coated 120mm 1000mm 80mm 9kg 5831w
120mm 1200mm 80mm 11.5kg 5832w
120mm 1500mm 80mm 14kg 5834w
120mm 2000mm 80mm 18kg 5835w
Fixings Description Type
Image Rawl Bolts 8 x 100mm (pack of 4) 5830w
Image Through Bolt Anchors 12 x 120mm (pack of 4) 7646w
