Heavy Duty Bollards

Price on Application

Category:

Description

A comprehensive range of heavy duty bollards with a wide spread of protective capabilities that meet most eventualities.

• Heavy duty protection.
• Manufactured from high grade steels.
• Highly visible finish

Applications:

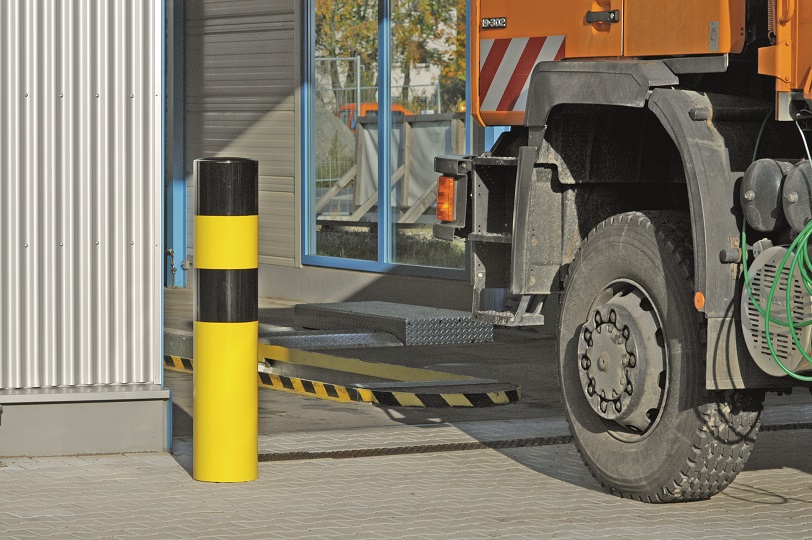

Use 159mm dia bollards in traffic areas where lorries and forklifts operate, loading bays, site entrances, corners of buildings etc.

The use of 90mm dia bollard is recommended where space is restricted.

Specifications:
Height: 1,200mm above surface.

Fixing:
Surface: Surface plate drilled 4 fixing holes.
Sub-surface: 400mm depth with ground anchor.

Finish: Hot Dip Galv. Powder coated yellow with black bands.

Dimensions:

Protection Bollard 90mm dia
Suitability: Medium to heavy impacts.

Protection Bollard 159mm
Suitability: Heavy impacts.

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-9wq8{border-color:inherit;text-align:center;vertical-align:middle}
.tg .tg-ee30{background-color:#ffffff;border-color:inherit;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-c3ow{border-color:inherit;color:#000000;text-align:center;vertical-align:middle}
.tg .tg-7bjv{background-color:#680100;border-color:inherit;color:#ffffff;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-3xho{border-color:inherit;color:#000000;text-align:center;vertical-align:middle}
.tg .tg-4px2{background-color:#680100;border-color:inherit;color:#ffffff;text-align:center;vertical-align:middle}
.tg .tg-rq3n{background-color:#ffffff;border-color:inherit;text-align:center;vertical-align:middle}
.tg .tg-uzvj{border-color:inherit;font-weight:bold;text-align:center;vertical-align:middle}

Heavy Duty Bollards,
Hot Dip Galvanised and
Powder Coated 		Fixture Overall Height Ø Thickness Colour Weight Type

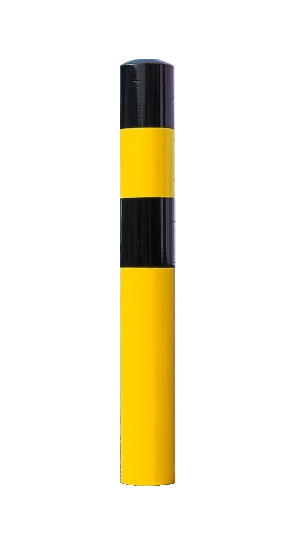

Image for embedding in concrete 1600mm 90mm 3.6mm yellow/black 16.50kg 5823w
159mm 4.5mm 35.50kg 5825w

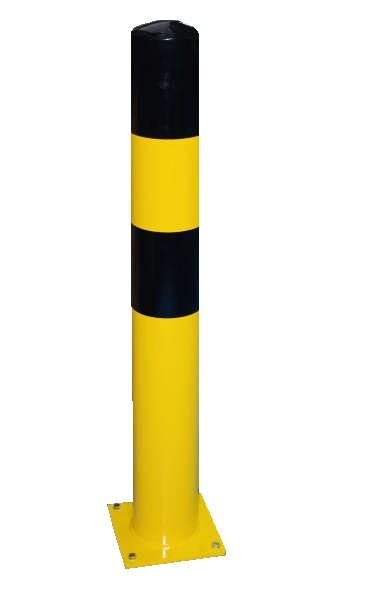

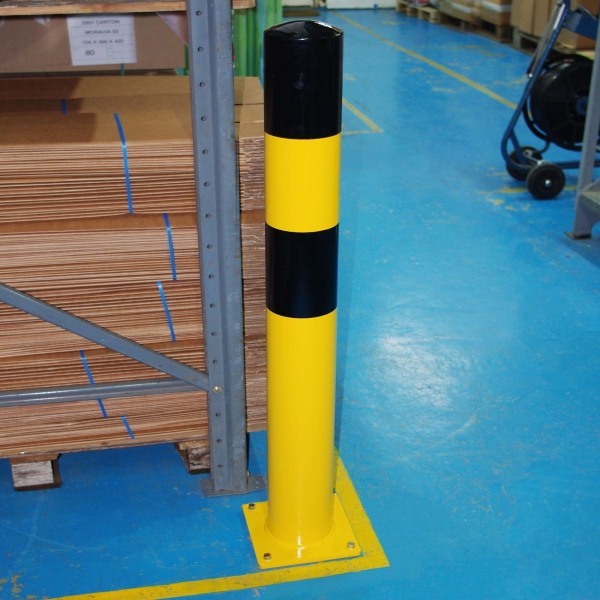

Image for screw anchoring 1200mm 90mm 3.6mm 14.50kg 5822w
159mm 4.5mm 33.50kg 5824w
Fixings Description Type
Image Rawl Bolts 14 x 110mm
(pack of 4)		 5826w
Image Through Bolts 16 x 140mm
(pack of 4)		 9818w
