Price on Application

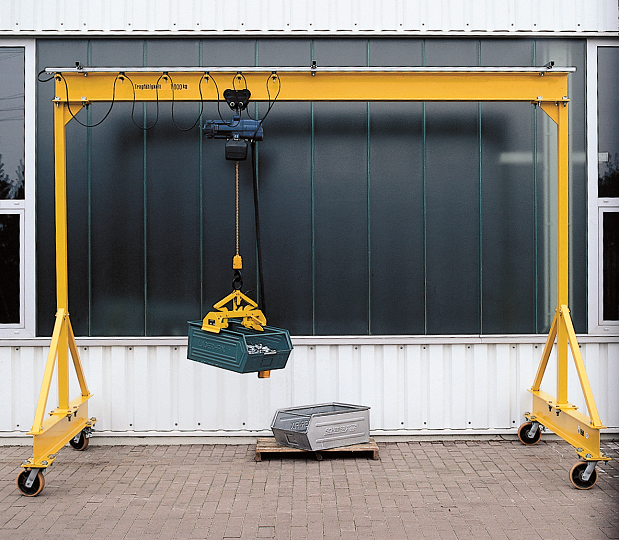

> Heavy duty mobile cranes supplied in 3 pieces for easy assembly
> Capacity 500kg to 2000kg available
> Clear span 3000mm and 4000mm available
> Suitable for manual or electric hoists
> Supplied with polyamide wheels. Solid rubber and vulkolan wheels are available on request
> Tested to 25% overload
> Supplied with all test certification
Gantries supplied without hoists or trolleys as standard
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| SWL | 500kg | 1000kg | 2000kg | |||
|---|---|---|---|---|---|---|
| Clear span | 3000mm | 4000mm | 3000mm | 4000mm | 3000mm | 4000mm |
| Overall length | 3540mm | 4540mm | 3540mm | 4540mm | 3660mm | 4660mm |
| Clear height | 3000mm | 3500mm | 3000mm | 3500mm | 3000mm | 3500mm |
| Total height | 3170mm | 3670mm | 3210mm | 3710mm | 3250mm | 4250mm |
| Wheelbase height | 1500mm | 2000mm | 1500mm | 2000mm | 1500mm | 2000mm |
| Flange width | 82mm | 91mm | 100mm | 120mm | 135mm | 150mm |
| Type | 1591w | 1592w | 1593w | 1594w | 1595w | 1596w |
