Description

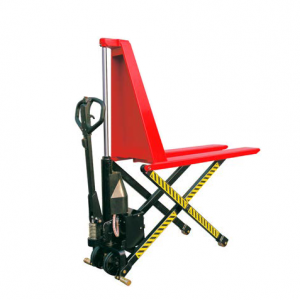

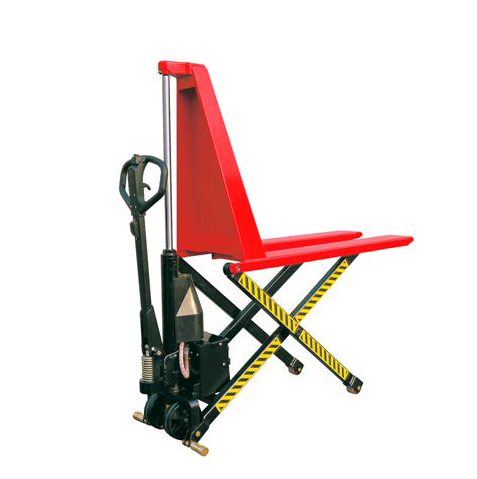

The high lift pallet truck (also sometimes referred to as a ‘Hi-lifter truck’ or ‘Scissor Lift Pallet Truck’) is designed to eliminate repetitive back strain when loading or offloading pallets by hand. The high lift pallet truck has a scissor action to lift pallets to a working height of 800mm. These scissor lift pallet trucks conform to the latest applicable health and safety regulations and can help to reduce the chances of a back strain or injury.
– The high lifter easily lifts up to 1500kg
– Automatically braked when raised above 400mm
– Three position control lever
– Quick lift as standard
– Automatic descending speed control
– Full warranty on all models
– Ergonomic design handle
– Can work manually when the battery has been charged
– Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-s6z2{text-align:center}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-e3zv{font-weight:bold}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-yw4l{vertical-align:top}
| Type |
7988w |
7989w |
| Capacity |
1500kg |
1500kg |
| Fork length |
1170mm |
1170mm |
| Fork width – overall |
560mm |
680mm |
| Fork section |
160 x 50mm |
160 x 50mm |
| Lowered fork height |
85mm |
85mm |
| Raised fork height |
800mm |
800mm |
| Battery |
12v, 75AH |
12v, 75AH |
| Charger – free standing |
230v |
230v |
| Steer wheels – polyurethane |
180 x 50mm |
180 x 50mm |
| Front rollers – polyurethane |
75 x 50mm |
75 x 50mm |
| Weight |
158kg |
163kg |
