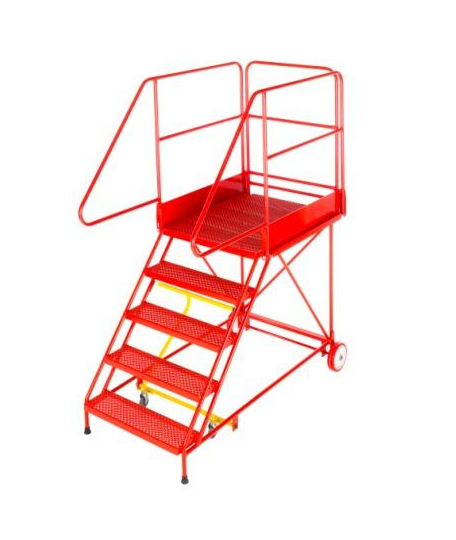

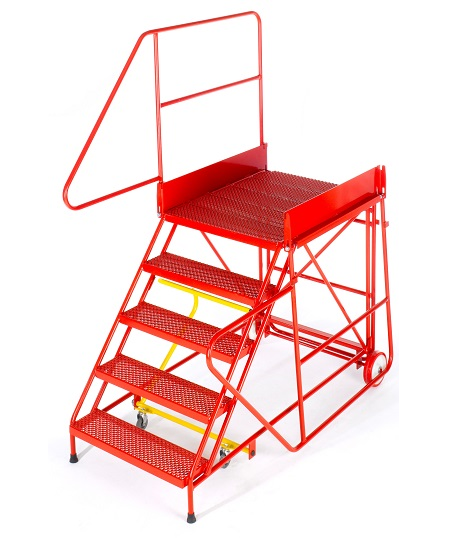

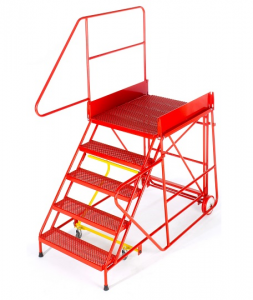

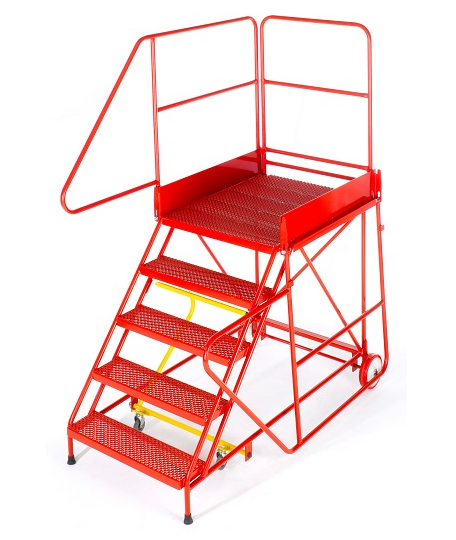

Heavy Duty Truck Dock Steps – Multi-position Guardrail

Price on Application

Category:

Description

Ideal for safe access to flatbed trucks and lorries. Locking device secures the step for climbing at a comfortable slope that allows user to turn and descend the steps facing forward. Access is provided at the top of the step to all sides for ease of use and can be configured by the operator on site.

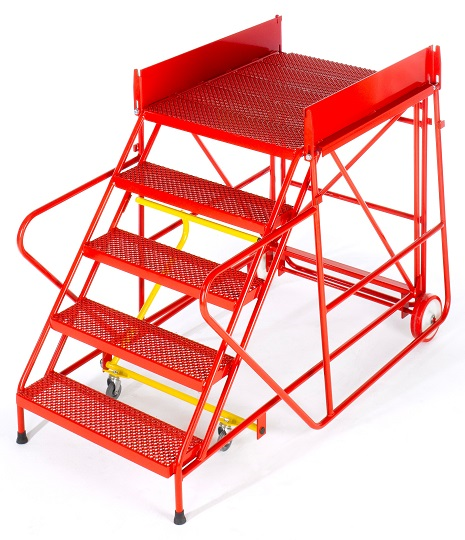

• Unique easy to operation multi-position guardrail system – sides fold-down individually (no bolts required)
• Comfortable staircase like climbing angle
• Positive lock anti-ascent safety system
• Extra heavy duty construction tested to 250kg
• Scratch resistant powder coated finish
• Double punched treads for maximum slip resistance & drainage
• Wide treads for safety and stability
• Large working platform 750 x 962mm
• 250kg work load capacity
• 1-year warranty

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

Treads Platform height Overall height Overall footprint Weight Type
5 tread 1.10m 2.11m 1.00m x 1.78m 90kg 6118w
6 tread 1.33m 2.33m 1.00m x 1.96m 95kg 6119w
7 tread 1.55m 2.55m 1.00m x 2.15m 100kg 6120w
8 tread 1.77m 2.77m 1.00m x 2.33m 305kg 6121w
