Hydraulic Pallet Stackers – 1000kg



Price on application

Category:

Description

  • Pallet stackers are fitted with ergonomic pump handles and foot pumps, giving you a choice of operation.
  • The stackers are sturdy, compact and constructed from robust steel profiles.
  • The lowering speed is fully adjustable.
  • Ideal for companies who wish to lift and handle euro pallets in a warehouse environment.

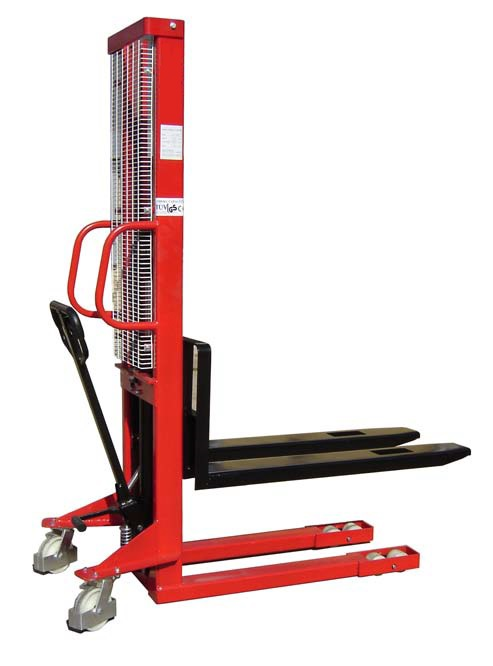

  • These stackers available with four different lift heights – 1200mm, 1600mm, 2500mm or 3000mm.

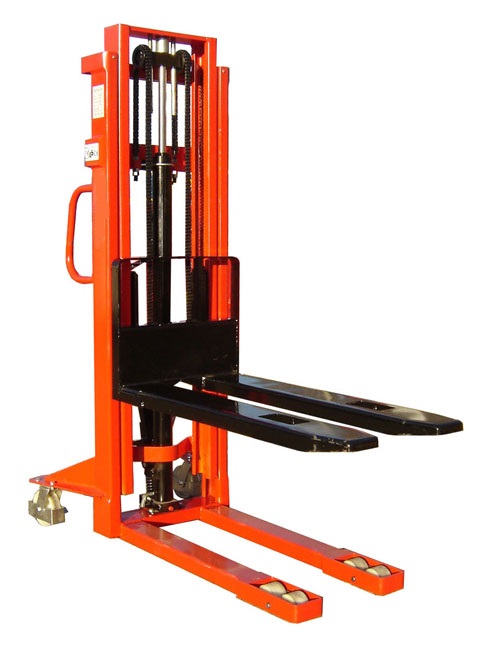

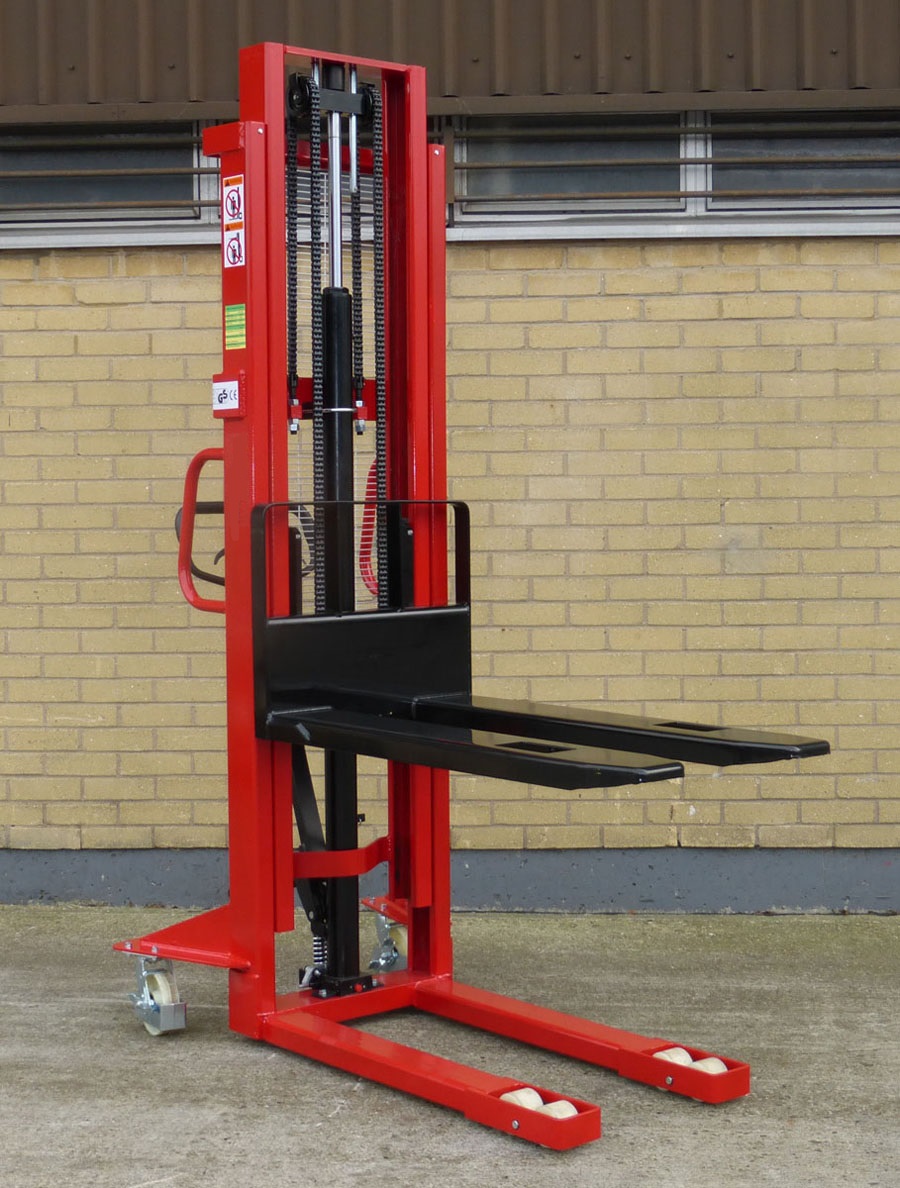

  • The first two models are single masted, whilst the 2500 and 3000mm models are double masted (duplex) versions, which allows for a lower overall closed height.

Specification

.tg {border-collapse:collapse;border-spacing:0;} .tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; overflow:hidden;padding:10px 5px;word-break:normal;} .tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;} .tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top} .tg .tg-baqh{text-align:center;vertical-align:top} .tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
Type 8891w 2566w 9771w 2567w
Capacity 1000kg
Load Centre 600mm
Max. Lift Height 1200mm 1600mm 2500mm 3000mm
Lowered Fork Height 85mm
Fork Length 1150mm
Width over Forks 550mm 550mm 580mm 580mm
Overall Length 1640mm
Overall width 740mm 740mm 840mm 840mm
Overall Closed Height 1720mm 2080mm 1840mm 2080mm
Mast Type Single Single Duplex Duplex
Wheels Nylon ΓΈ 150 / 80mm
Approx. Weight 210kg 230kg 276kg 307kg
