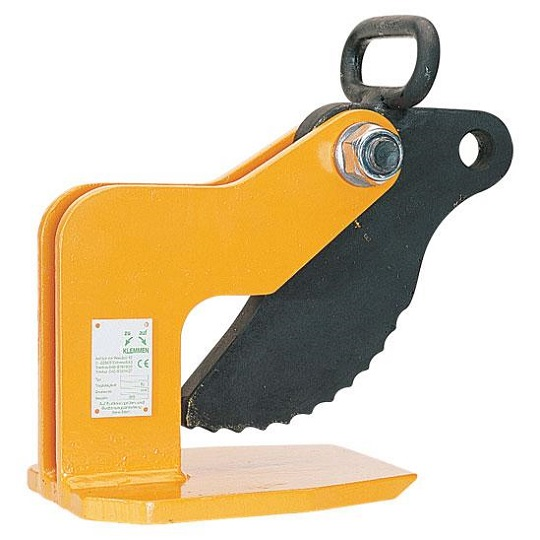

Description
> Clamps are used in pairs. Designed for transporting rigid sheets or stacks of sheets
> Long sheets will need two clamps to lift safely
> Prices quoted are per pair of clamps
DOWNLOAD PDF
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

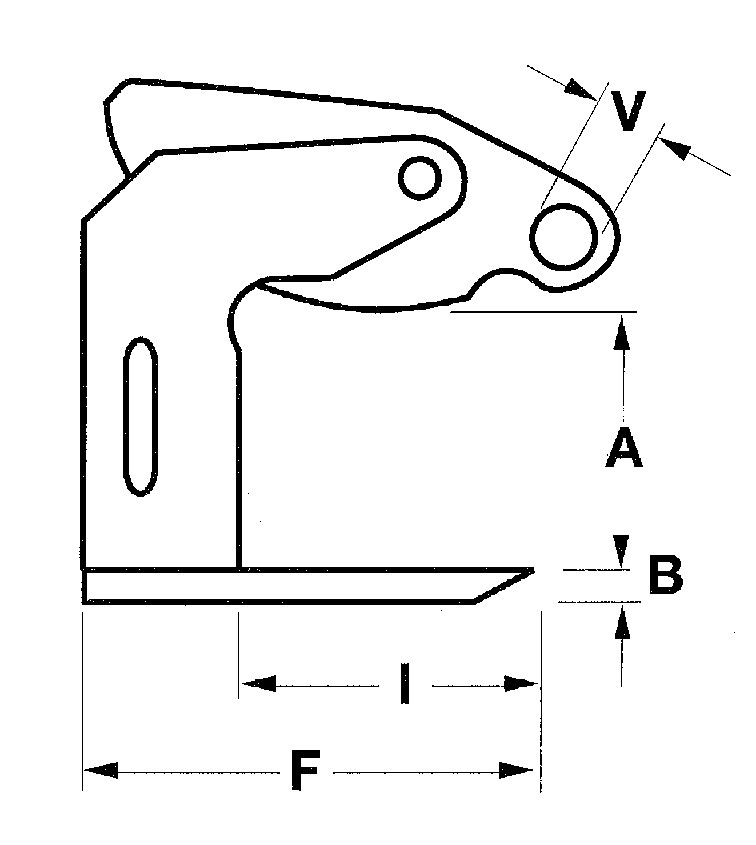

Capacity/pair |
A |
B |
F |
I |
V |
Weight |
Type |
2500kg |
5-100mm |
15mm |
230mm |
140mm |
25mm |
13kg |
2072w |
2500kg |
50-150mm |
15mm |
230mm |
140mm |
25mm |
15kg |
2073w |
5000kg |
5-100mm |
20mm |
250mm |
140mm |
31mm |
20kg |
2074w |
5000kg |
50-150mm |
30mm |
270mm |
165mm |
31mm |
25kg |
2075w |
5000kg |
100-250mm |
30mm |
270mm |
165mm |
31mm |
30kg |
2076w |
7500kg |
100-250mm |
50mm |
290mm |
170mm |
36mm |
35kg |
2077w |
