Low Profile Static Lift Table with Ramp – 1000kg



Price on application

SKU: 2546w Category:

Description

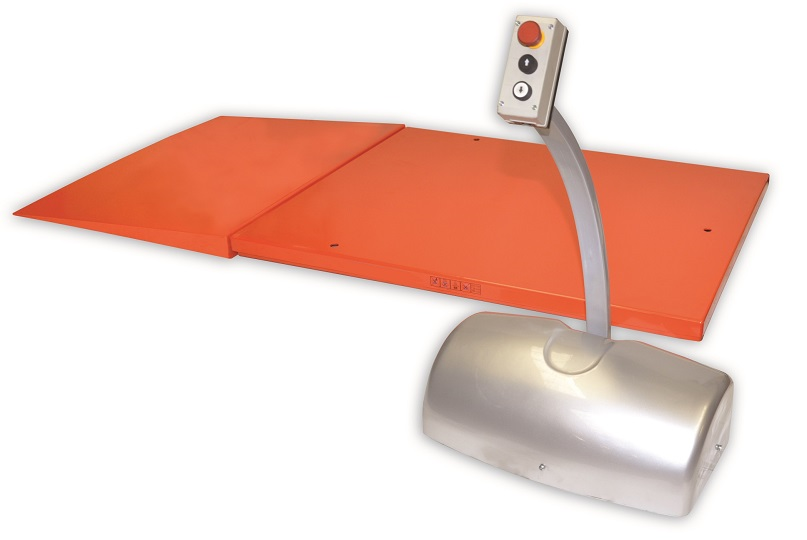

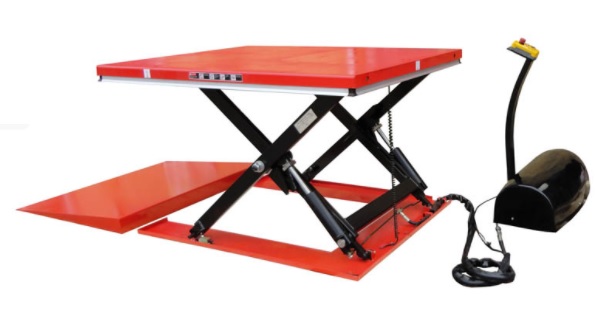

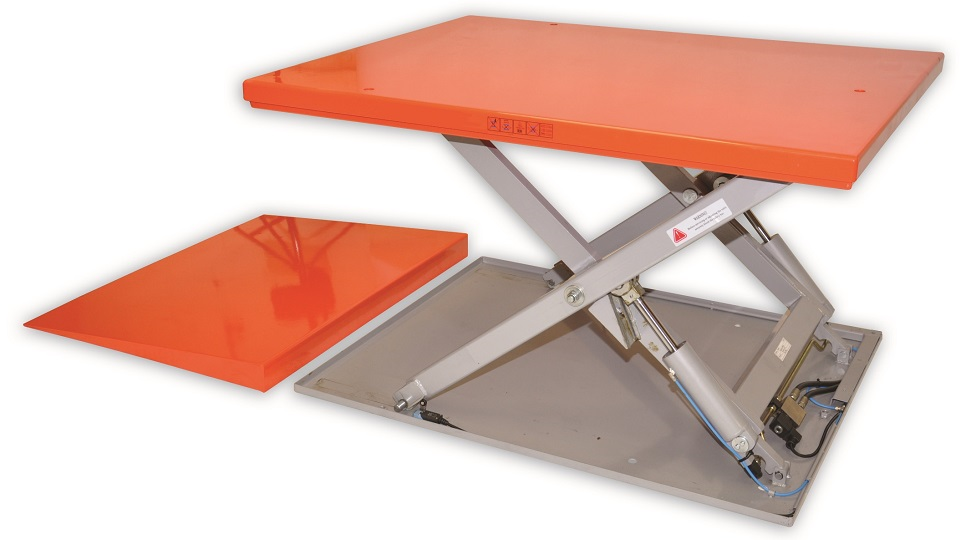

Low profile scissor lift table complete with loading ramp
> 1000kg capacity
> Lift height 760mm
> Closed height 82mm
> Platform size 1450 x 1140mm
> Size of ramp: 1140mm wide x 890mm long

> Remote power pack with pedestal and controls, all protected to IP54
> 24v control box with up, down and safety stop buttons
> Relief valve on power pack prevents overloading
> Tables are powered by AC380v/50Hz/3 phase mains
> Power pack 0.75 Kw
> Lifting cycle 20 seconds

> Compensated flow valve gives controlled lowering speed
> Hose burst safety valve stops table lowering in the event of a hose breakage
> Safety perimeter on platform prevents descent on contact with obstructions
> Removable lifting eyes to facilitate handling and installation
> Mechanical safety chocks are provided for maintenance
> Self lubricating bushes on axle pivot points

Specification

.tg {border-collapse:collapse;border-spacing:0;} .tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;} .tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;} .tg .tg-baqh{text-align:center;vertical-align:top} .tg .tg-e3zv{font-weight:bold} .tg .tg-hgcj{font-weight:bold;text-align:center} .tg .tg-yw4l{vertical-align:top}
Type 2546w
Capacity 1000kg
Lowered height 82mm
Raised height 760mm
Platform size 1450mm x 1140mm
Ramp size 1140mm x 890mm
Lifting time 18 secs
Lifting speed with load 42mm/sec
Lowering speed with load 48mm/sec
Motor 0.75kw
Power AC380v/50Hz/3 phase mains
Net weight 250kg
