Description

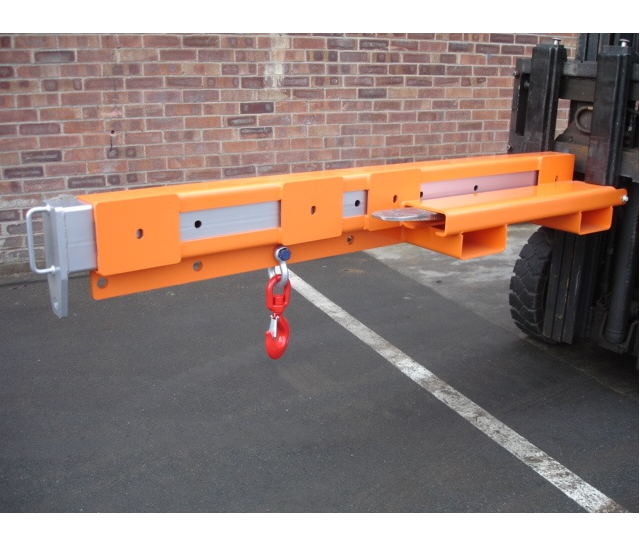

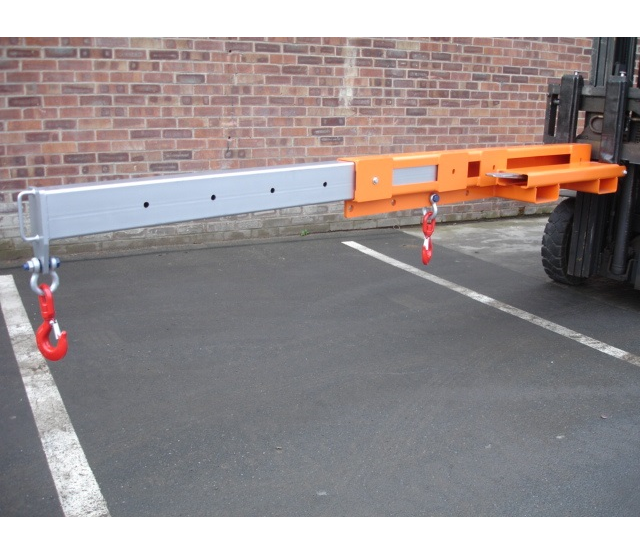

The Low Profile Extending Jib allows the movement of long and awkward loads from inaccessible locations but with up to 10 different lifting positions and with the added benefit of two hooks and shackles so as to ‘cradle’ your load.
Standard Features
- Multi hook positioning from 500-3000mm load centres
- Supplied complete with 2 No Swivel hooks and bow shackles
- Four way pocket entry for ease of storage
- Maximum fork section 150 x 50mm at 281mm centres.

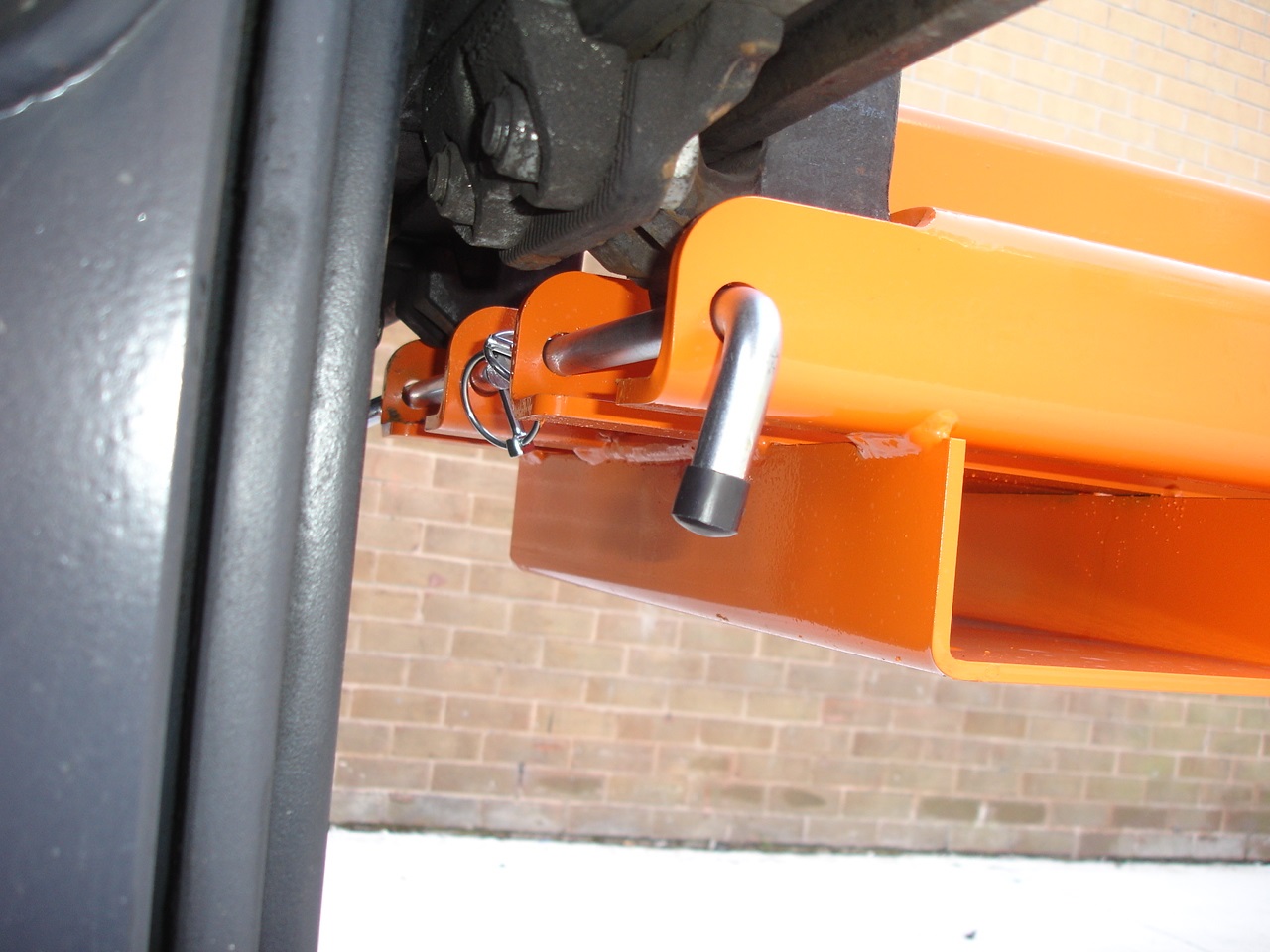

- Zinc plated heel pins for safe attachment to truck
- Painted bright orange for safety
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-bobw{font-weight:bold;text-align:center;vertical-align:bottom}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Capacities at centres shown |
Weight |
Type |
| 500mm |
1000mm |
1500mm |
1750mm |
2000mm |
2250mm |
2500mm |
2750mm |
3000mm |
| 1000kg |
700kg |
400kg |
300kg |
260kg |
230kg |
190kg |
150kg |
100kg |
95kg |
1105w |
| 1500kg |
1100kg |
650kg |
450kg |
400kg |
350kg |
300kg |
220kg |
150kg |
100kg |
1106w |
| 2000kg |
1600kg |
900kg |
600kg |
500kg |
400kg |
350kg |
280kg |
200kg |
109kg |
1107w |
| 3000kg |
2100kg |
1100kg |
850kg |
715kg |
620kg |
440kg |
320kg |
250kg |
127kg |
1108w |
| 4000kg |
3200kg |
1900kg |
1100kg |
975kg |
850kg |
650kg |
500kg |
400kg |
138kg |
1109w |
