Description

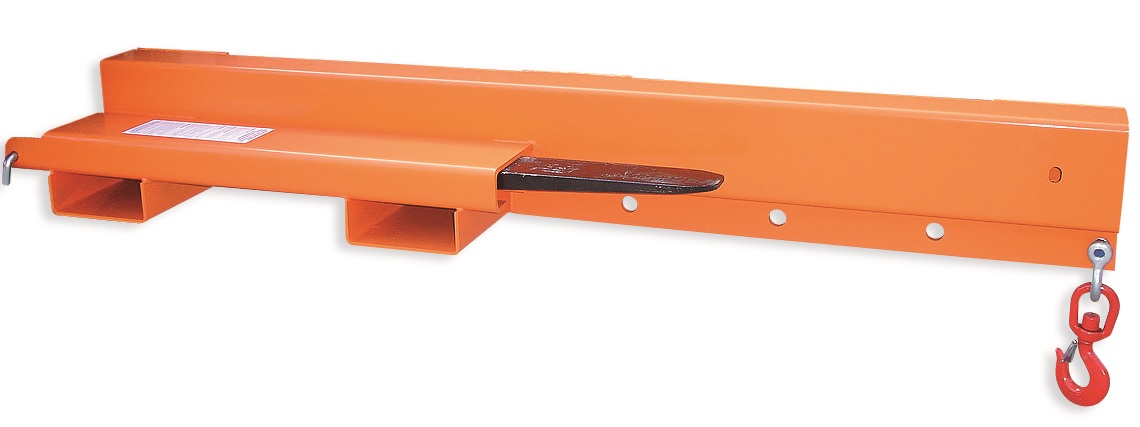

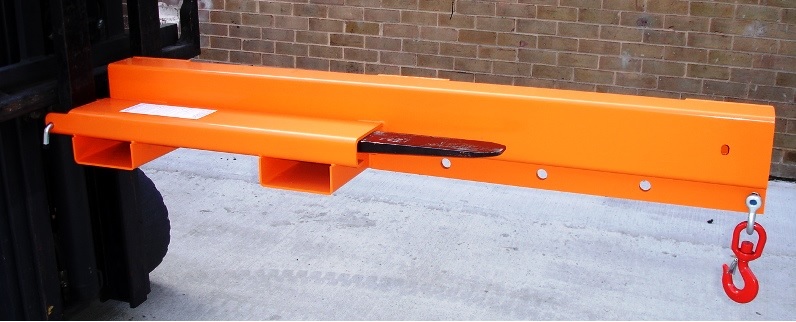

When height is at a premium the Low Profile Jib allows the movement of long and awkward loads from inaccessible locations, with the potential of 5 different lifting centres.
Standard Features
- Multi hook positioning from 500-1750mm load centres
- Supplied complete with swivel hook and bow shackles
- Four way pocket entry for ease of storage
- Maximum fork section 150 x 50mm at 281mm centres.
- Zinc plated heel pins for safe attachment to truck
- Painted bright orange for safety
DOWNLOAD PDF
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-uqo3{background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-s6z2{text-align:center}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-j4kc{background-color:#efefef;text-align:center}
| Capacities at centres shown |
Weight |
Type |
| 500mm |
1000mm |
1250mm |
1500mm |
1750mm |
| 1000kg |
700kg |
500kg |
400kg |
250kg |
75kg |
1100w |
| 1500kg |
1100kg |
900kg |
650kg |
450kg |
80kg |
1101w |
| 2000kg |
1600kg |
1200kg |
900kg |
600kg |
89kg |
1102w |
| 3000kg |
2100kg |
1600kg |
1100kg |
850kg |
107kg |
1103w |
| 4000kg |
3200kg |
2500kg |
1900kg |
1100kg |
118kg |
1104w |
