Description
– Suitable for supermarkets, offices, warehouses, narrow areas, etc.
– Lift: Manual Winch
– Lightweight design
– Very easy to operate
– Platform size L x W: 390 x 585mm (Galvanised and Steel)

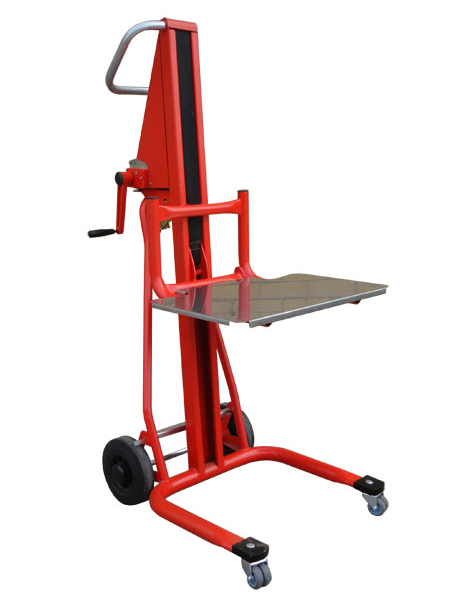

Mini Winch Stacker – 120kg
Price on application
Specification
.tg {border-collapse:collapse;border-spacing:0;} .tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; overflow:hidden;padding:10px 5px;word-break:normal;} .tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px; font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;} .tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top} .tg .tg-baqh{text-align:center;vertical-align:top} .tg .tg-0lax{text-align:left;vertical-align:top}| Type | 8683w |
| Capacity | 120kg |
| Load centre | 150mm |
| Max. lift height | 1090mm |
| Lowered fork height | 95mm |
| Platform L x W | 390 x 585mm |
| Overall length | 740mm |
| Overall lowered height | 1370mm |
| Overall width | 585mm |
| Wheels diameter | ΓΈ 200 x 50mm |
| Approx. weight | 25kg |
