Description

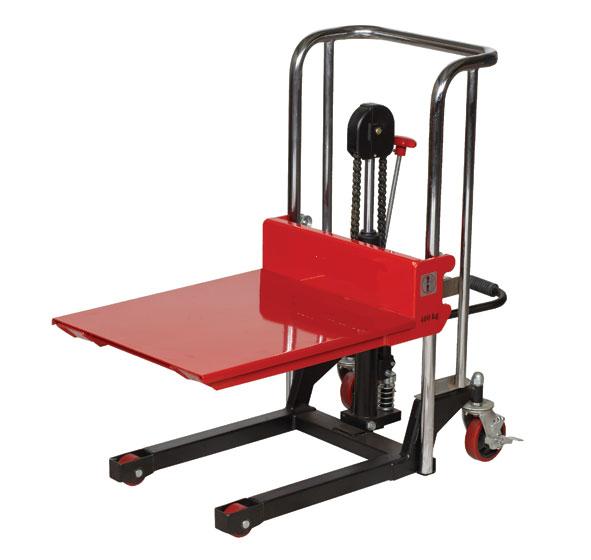

> Highly manoeuverable ministackers supplied with removable platform
> 400kg capacity
> Lift height 850mm, 1200mm and 1500mm available.
> Robust construction
> Smooth operating footpump for positive lifting
> Ø125mm polyurethane steering wheels and Ø75mm polyurethane load rollers

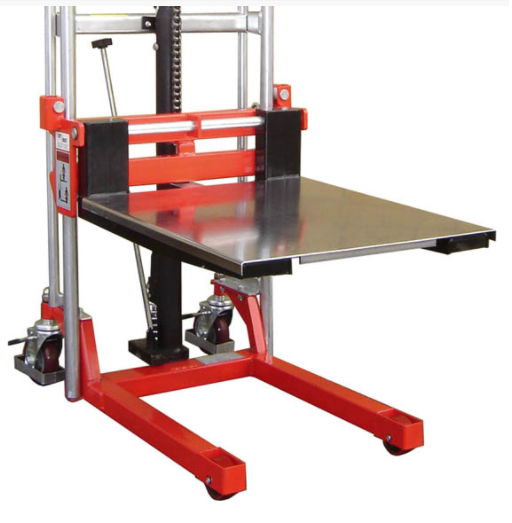

> Detachable platform size: 650m long x 576mm wide

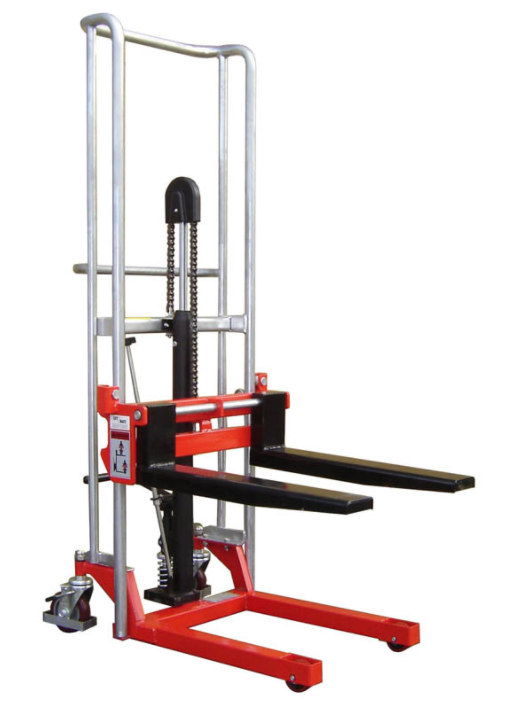

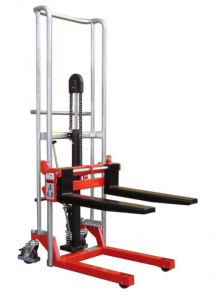

> Fixed forks: 650mm long x 576mm overall width, 110mm width of each fork
> Minimum platform height: 85mm
> Pressure relief/Overload valve
> CE marked with Certificate of conformity
PLEASE NOTE: COLOUR/APPEARANCE OF UNITS MAY DIFFER TO IMAGES SHOWN ABOVE
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| Capacity
| 400kg
|
| Max Platform height |
850mm |
1200mm |
1500mm |
| Min Platform height |
85mm |
| Forks |
1100mm long x 650mm wide |
| Gap between forks |
350mm |
| Platform L x W |
650 x 576mm |
| Overall L x W x H |
1100 x 600 x 1100mm |
1100 x 600 x 1430mm |
1100 x 600 x 1710mm |
| Gap between legs |
360mm |
| Steering wheels/front rollers |
∅127mm / ∅75mm |
| Nett Weight |
75kg |
81kg |
91kg |
| Type |

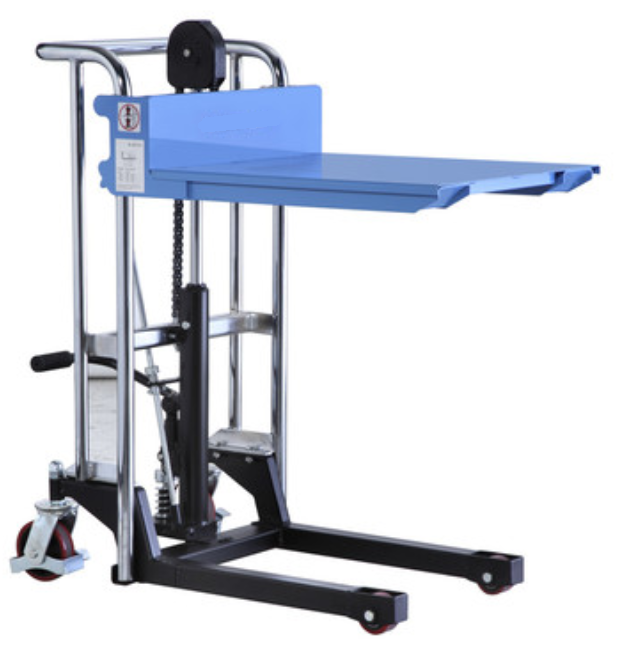

2561w |

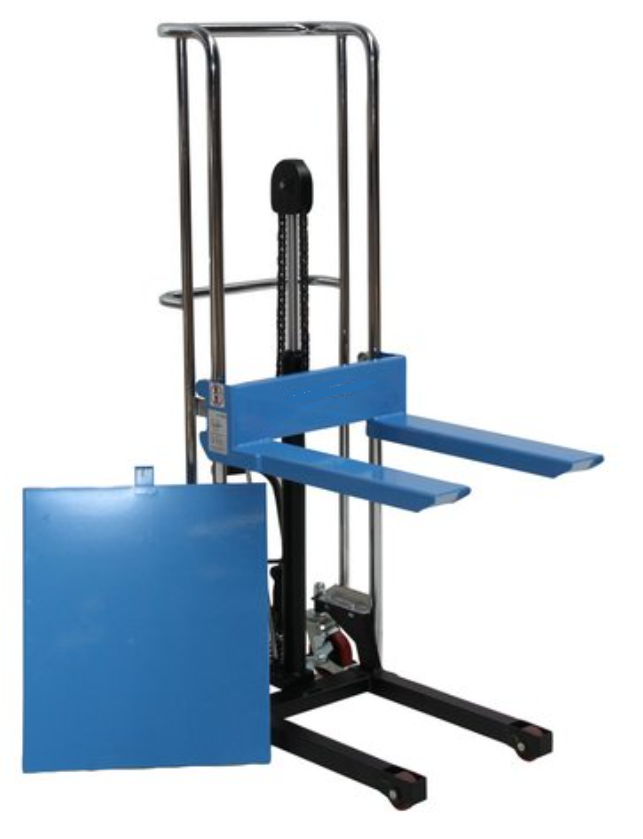

2562w |

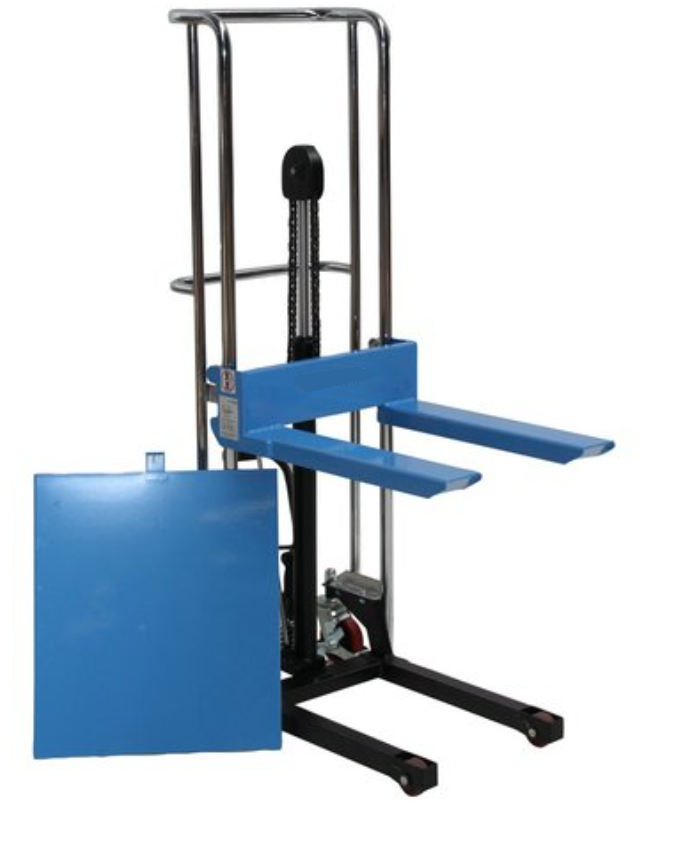

2563w |
