Description
> Robustly constructed Scissor lift trolleys, developed to withstand most arduous industrial environments
> Ideal for manoeuvring or positioning parts
> High quality positive feel hydraulics
> Fitted with 2 maintenance stops
> Foot operated pump with controllable hand operated lowering
> Overload relief and by-pass valves
> Larger table sizes are available on request
> Fully mobile on 2 fixed and 2 braked swivel guarded castors
> Fully compliant with BS EN1570 & CE marked
Please note: colour/appearance may differ from images shown
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-e3zv{font-weight:bold}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
| Type |
Capacity |
Lowered
Table
Height |
Raised
Table
Height |
Table Size
W x L |
Handle
Height |
Wheel dia |
No of
Strokes to full height |
Net
Weight |

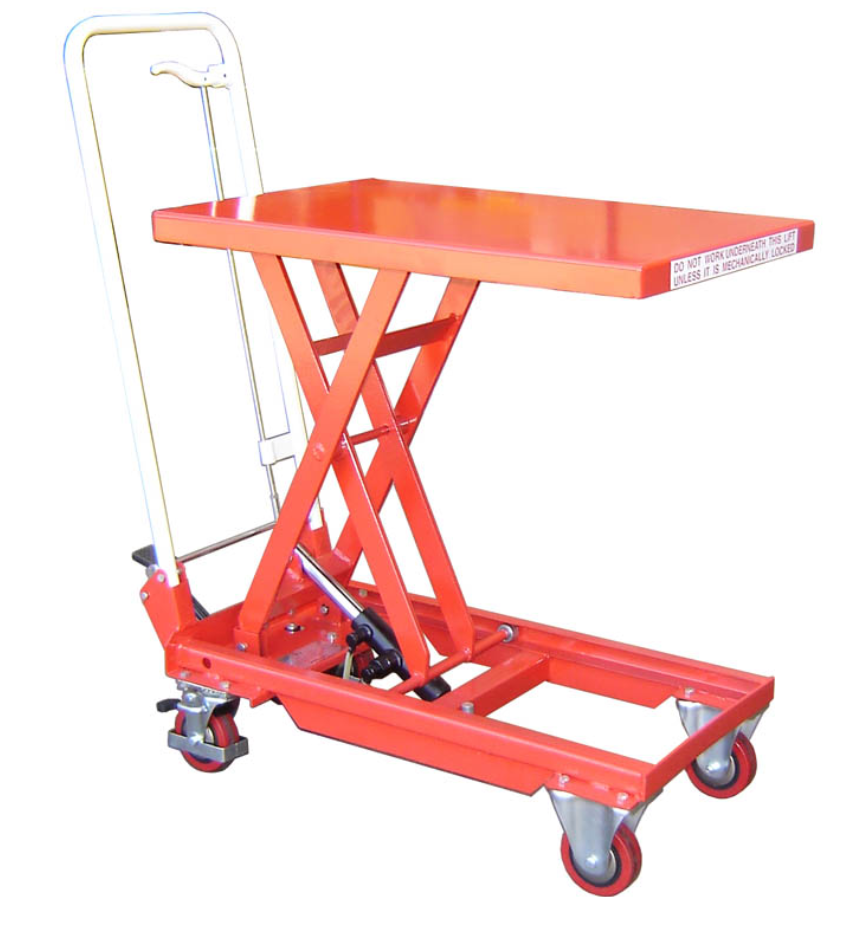

| 2531w |
150kg |
265mm |
700mm |
450 x 700mm |
1000mm |
100mm |
16 |
41kg |

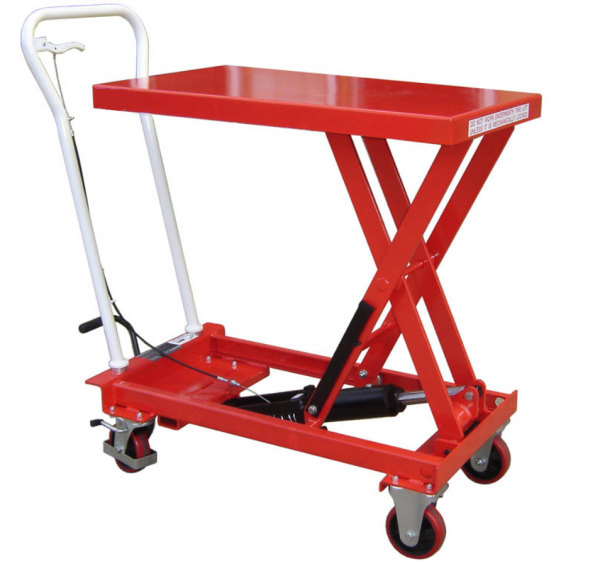

| 2532w |
250kg |
330mm |
910mm |
500 x 830mm |
1100mm |
125mm |
25 |
78kg |

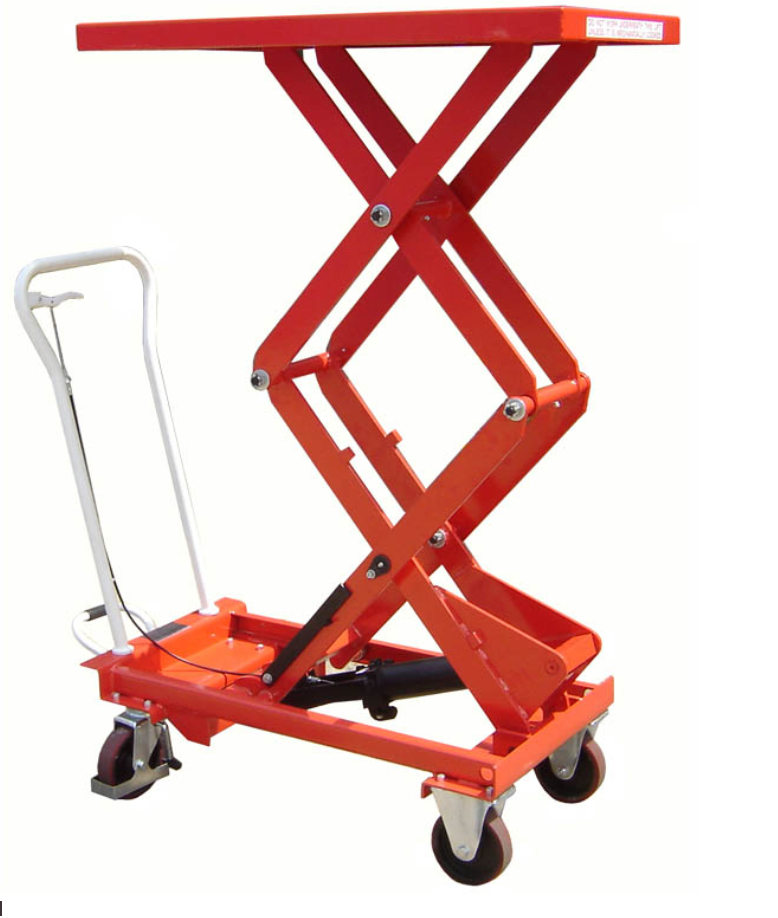

| 2533w |
300kg |
435mm |
1585mm |
520 x 1010mm |
1130mm |
150mm |
65 |
150kg |

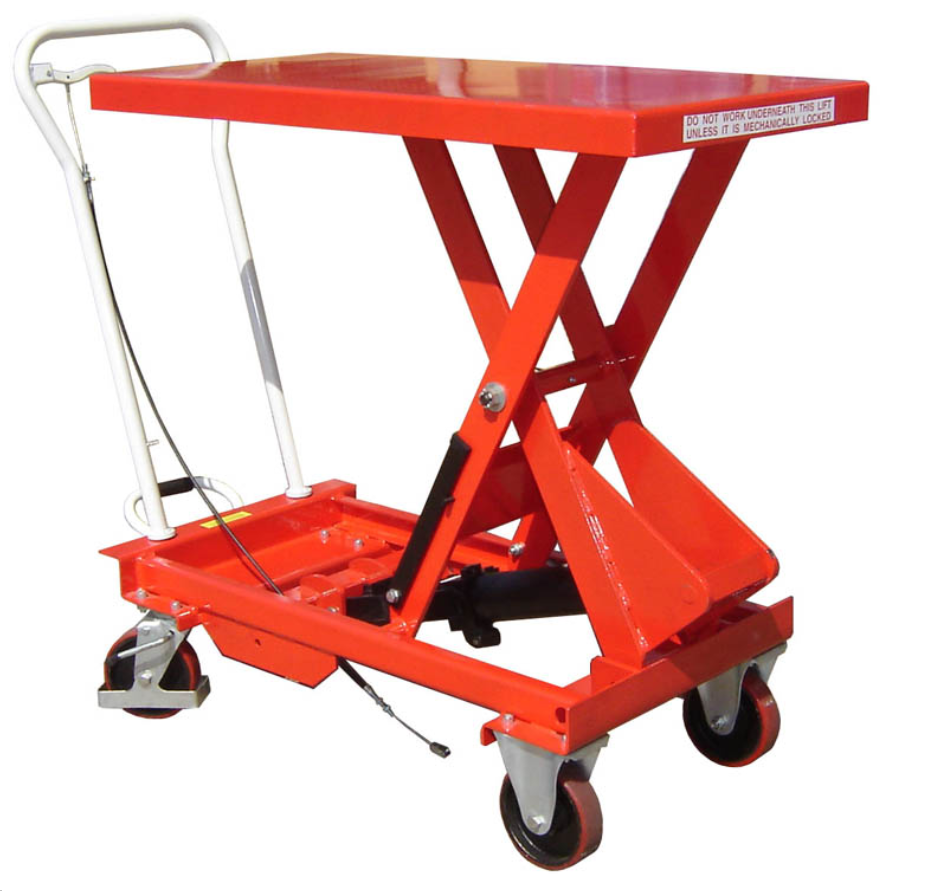

| 2534w |
500kg |
435mm |
1000mm |
520 x 1010mm |
1130mm |
150mm |
44 |
118kg |

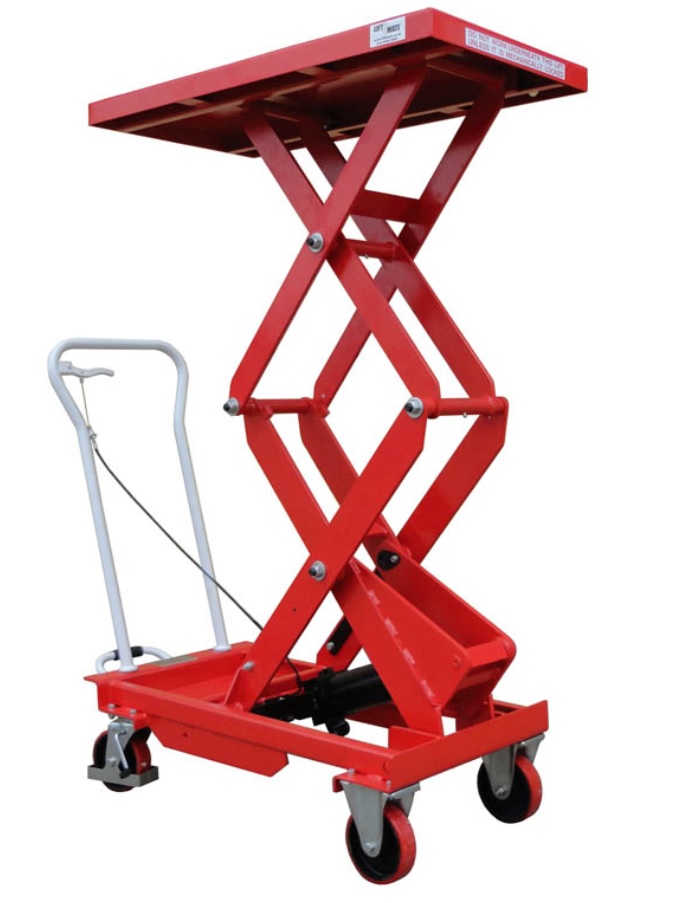

| 2535w |
500kg |
450mm |
1500mm |
520 x 1010mm |
1130mm |
150mm |
75 |
144kg |

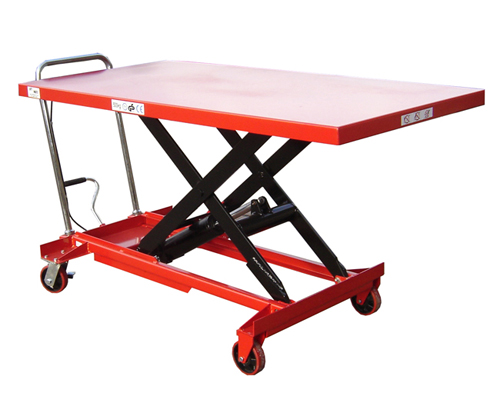

| 2536w |
500kg |
310mm |
910mm |
800 x 1600mm |
970mm |
125mm |
30 |
134kg |

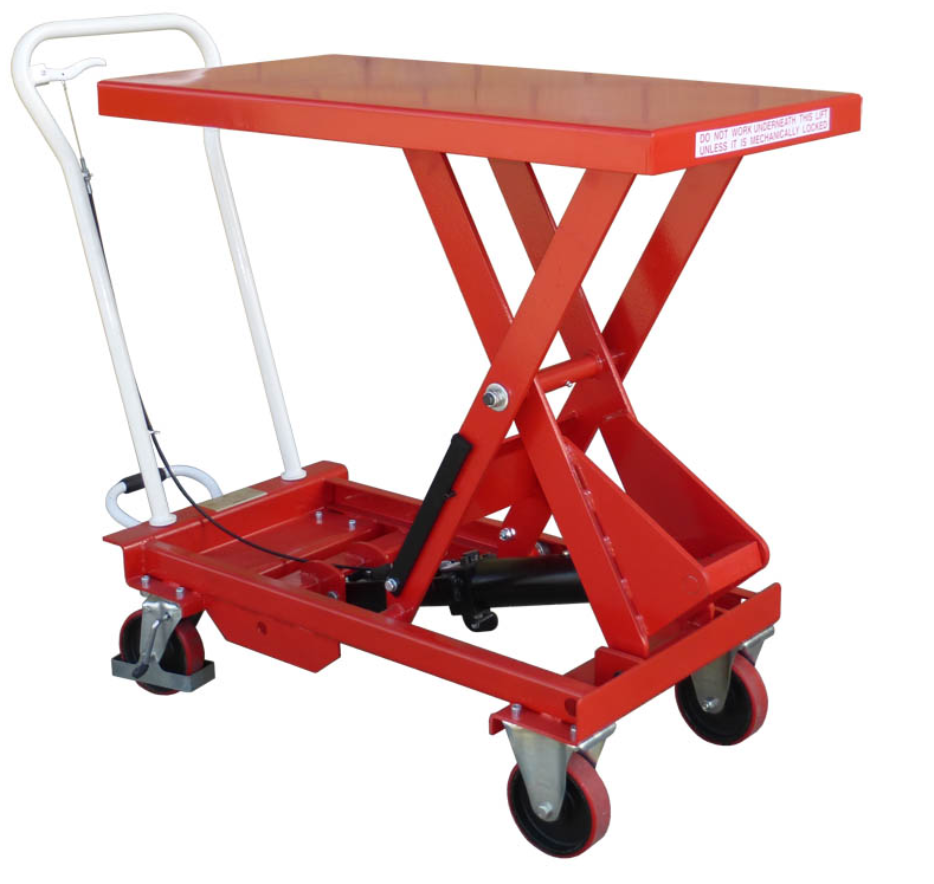

| 2537w |
750kg |
442mm |
1000mm |
520 x 1010mm |
1130mm |
150mm |
55 |
120kg |

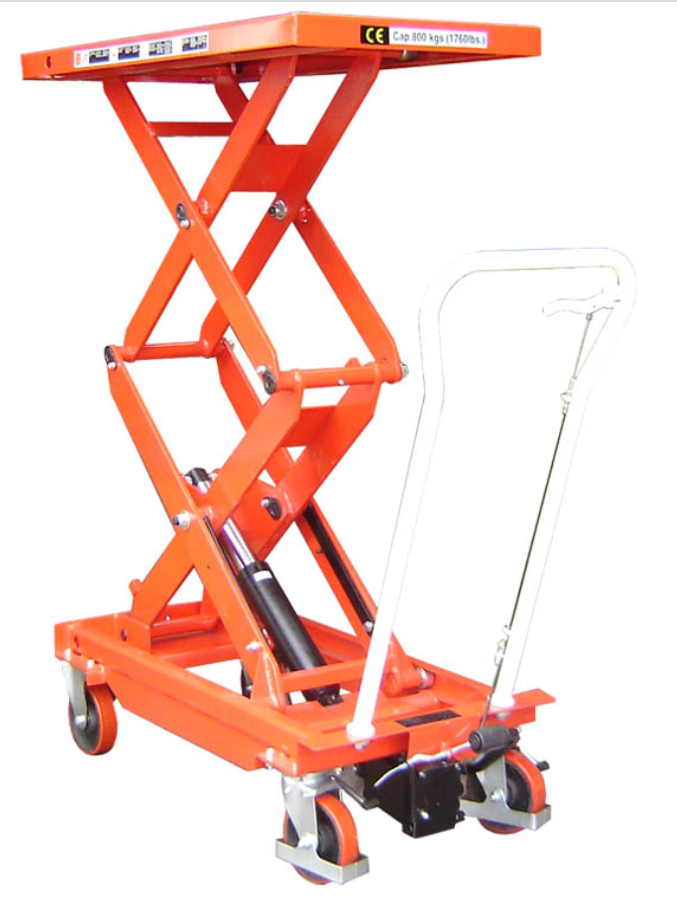

| 2538w |
800kg |
470mm |
1410mm |
520 x 1010mm |
1130mm |
150mm |
80 |
165kg |

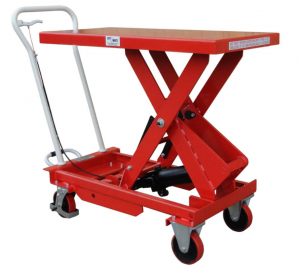

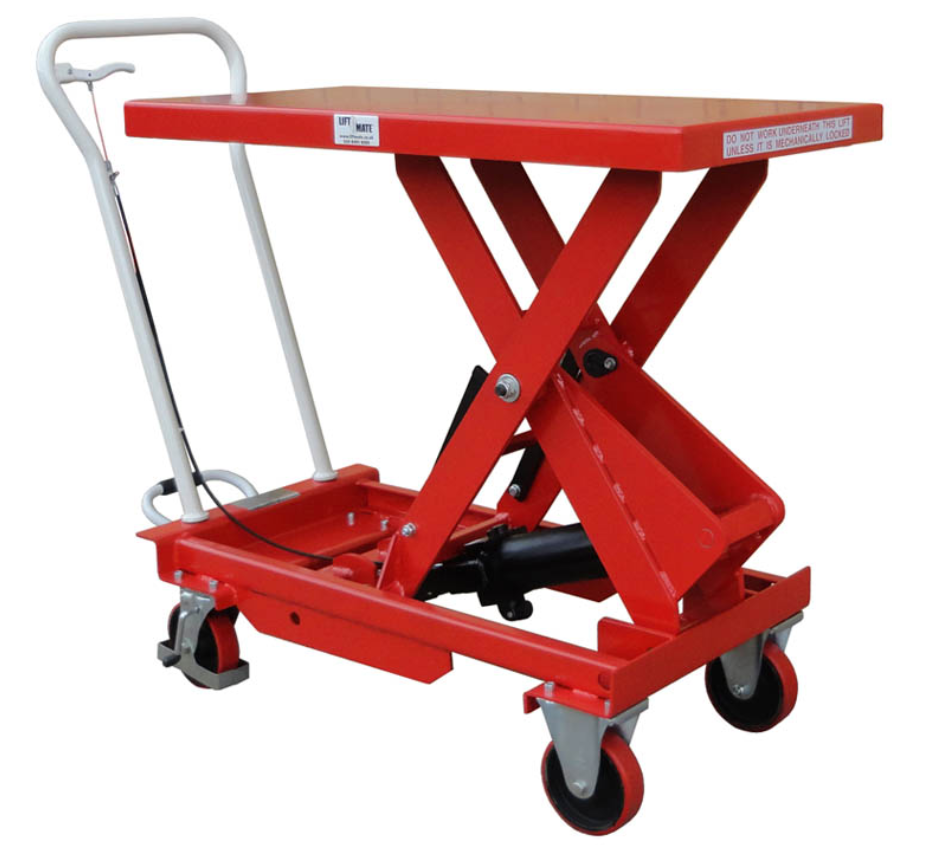

| 2539w |
1000kg |
445mm |
950mm |
520 x 1010mm |
1130mm |
150mm |
75 |
150kg |

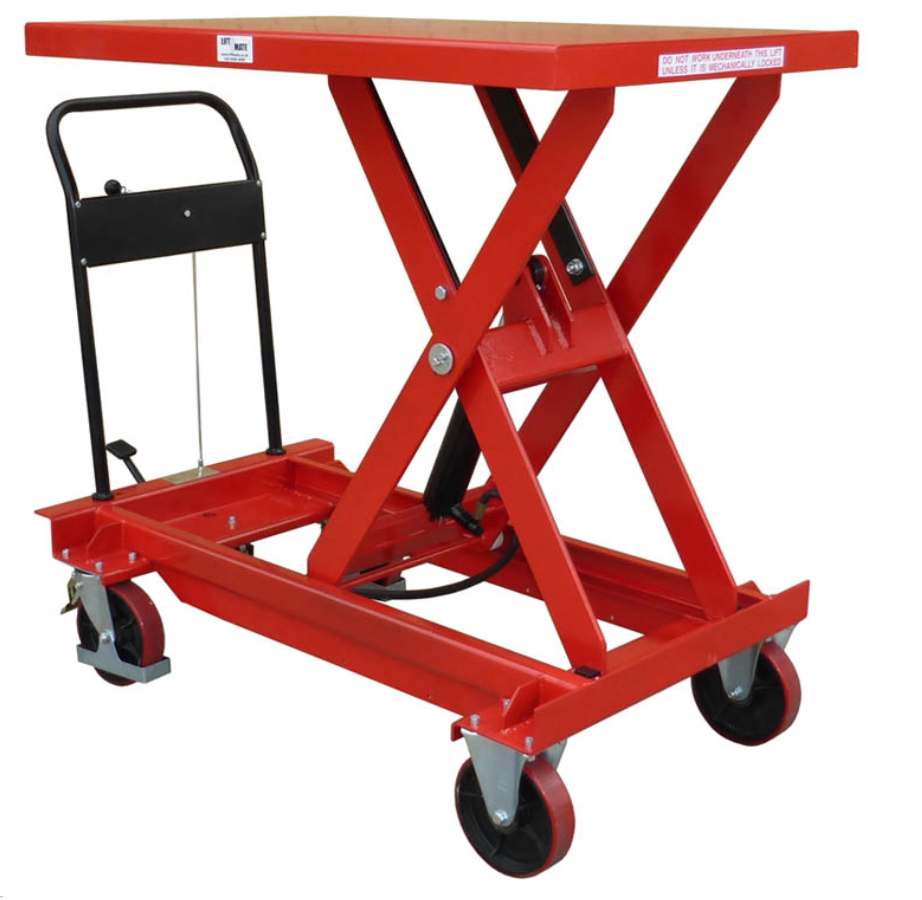

| 5131w |
1000kg |
425mm |
1225mm |
800 x 1200mm |
1080mm |
200mm |
90 |
163kg |

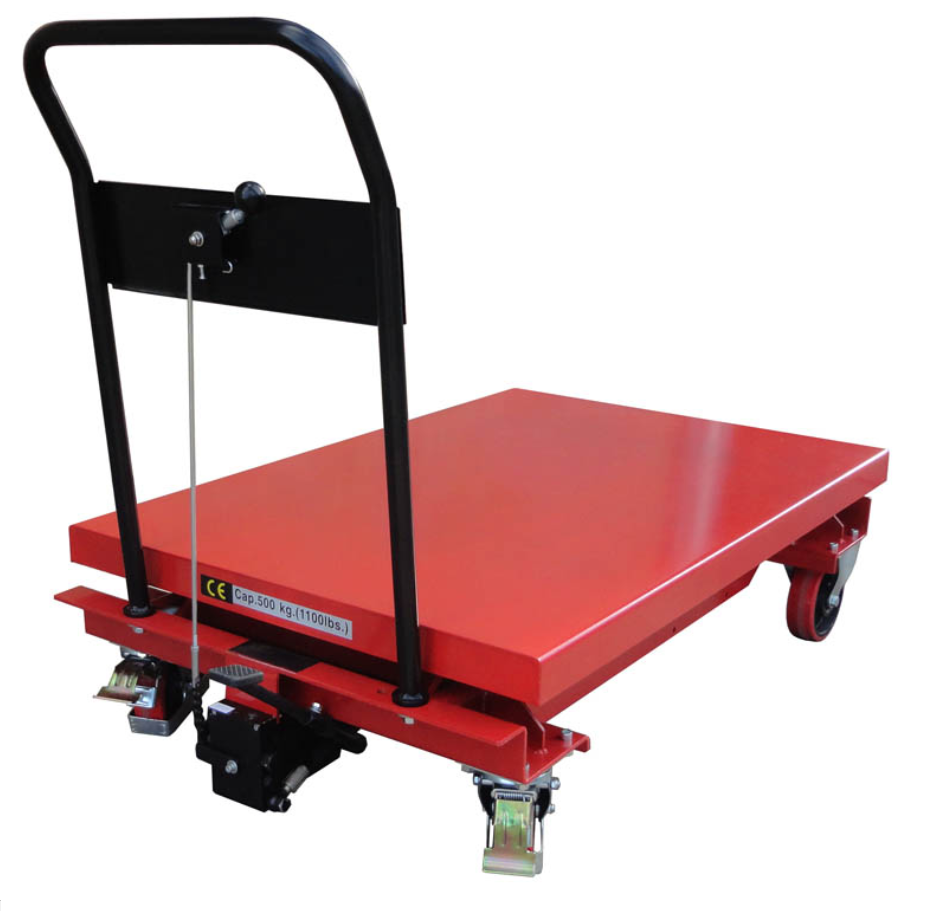

| 5132w |
500kg |
370mm |
1190mm |
800 x 1200mm |
1030mm |
160mm |
80 |
160kg |
