Open Front Indoor Bunded Stores

Price on Application

Description

Theses bunded stores are manufactured from 3mm steel plate and have RHS cross members, pressed ribs and a heavy duty RHS end frame with 2mm corrugated panels.

Available in 4 sizes:

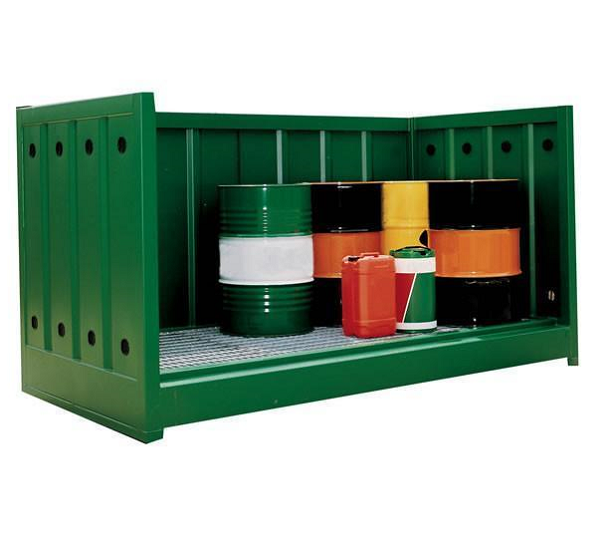

Type 2858w: To hold 8 x 205L drums vertically

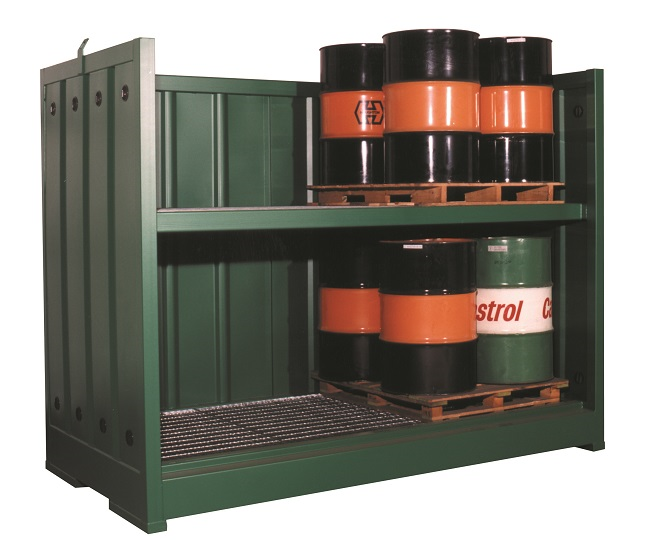

Type 2859w: To hold 16 x 205L drums vertically

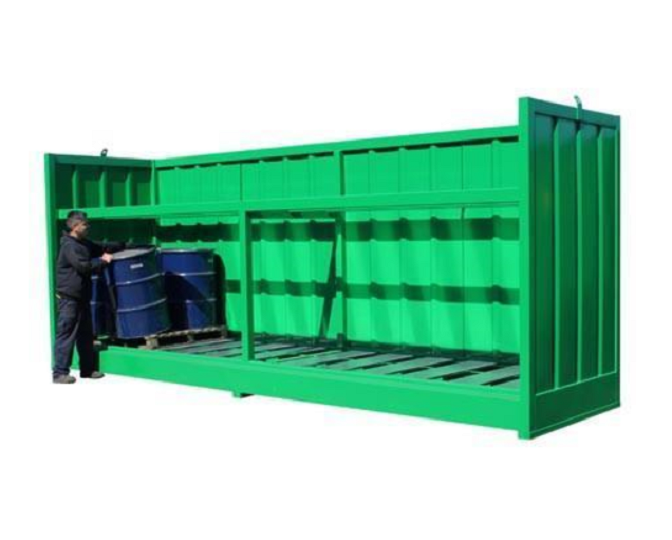

Type 2860w: To hold 32 x 205L drums vertically

NOTE: The “floor” area above the sumps (Type 2859w & 2860w only) is covered with galvanised steel channel sections so that loose drums or pallets can be stored directly on to it, while the upper shelf is an open, box section construction designed to support pallets

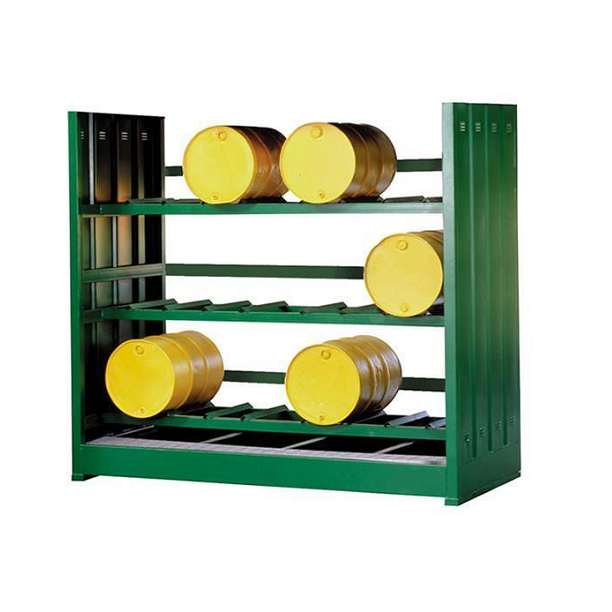

Type 2862w: 12 x 205L drums horizontally. The front of the store is open for ease of access and safety ‘stop rails’ at the back prevent drums from being pushed through.

With galvanised support channels and fully seam welded sumps the stores are fitted with plinths to eliminate contact with the ground and is shot blasted before being painted.

The sumps fully comply with all the UK regulations relating to sump capacities

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

Type 2858w 2859w 2860w 2862w
External size L x W x H 3000 x 1500 x 1723mm 3000 x 1500 x 2450mm 5920 x 1500 x 2450mm 3000 x 1500 x 2875mm
Number of containers 8 x 205L drums 16 x 205L 32 x 205L drums 12 x 205L drums
Drum position vertical vertical vertical horizontal
Sump capacity 1125L 1125L 2100L 1125L
Colour Green RAL 6029 Green RAL 6029 Green RAL 6029 Green RAL 6029
Tare weight 350kg 500kg 700kg 700kg
