Pallet Racking Protectors

Price on Application

Category:

Description

Pallet racking protectors are required for fixed racking installations where industrial trucks are used (except where they are guided by rails).

Pallet Racking Protectors provide the ideal solution in most situations.

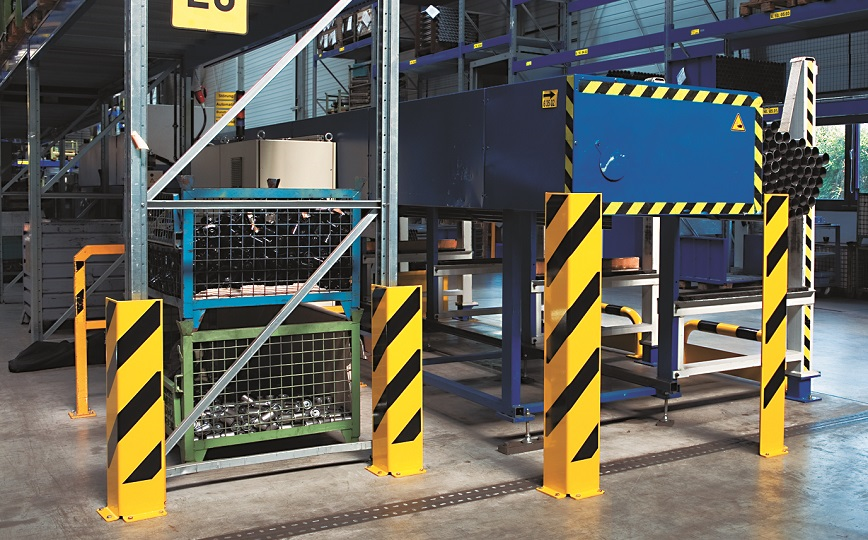

They can also be used to protect machinery, partition systems, rectangular columns etc.

Conform to standards BGR 234 and DIN 4844.

Variants:

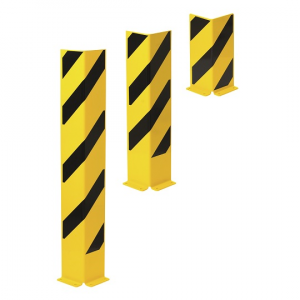

Right-angle: Two way protection.

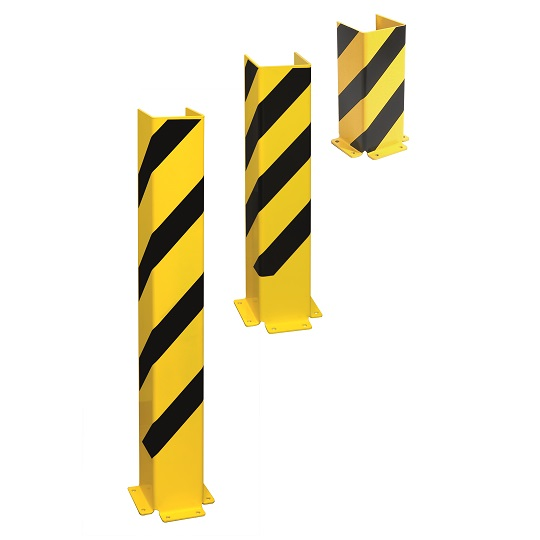

U-profile: Three way protection.

Surface treatment: Powder coated yellow with black striping.



DOWNLOAD PDF

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-4k42{background-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-4cox{background-color:#680100;color:#ffffff;text-align:center;vertical-align:top}
.tg .tg-nrix{text-align:center;vertical-align:middle}

Pallet Protectors Description H X W X D Thickness No Fixing Bolts required Weight Type
Image Right-angle 400 400 x 160 x 160mm 5mm 4 8kg 5806w
Right-angle 400 400 x 160 x 160mm 6mm 4 9kg 5807w
Image Right-angle 800 800 x 160 x 160mm 6mm 4 16kg 9024w
Image Right-angle 1200 1200 x 160 x 6mm 6mm 4 22kg 9025w
Image U-Profile 400 400 x 160 x 160mm 5mm 6 10kg 9026w
U-Profile 400 400 x 160 x 160mm 6mm 6 11kg 5808w
Image U-Profile 800 800 x 160 x 160mm 6mm 6 20kg 9027w
Image U-Profile 1200 1200 x 160 x 106mm 6mm 6 26kg 9028w
Fixings Description Pack quantity Dia x Height Type
Image Rawl Plug Pack of 4 8x 100mm 5821w
Pack of 6 8 x 100mm 5809w
Image Throughbolt Anchor Pack of 4 12 x 120mm 7646w
Pack of 6 12 x 120mm 7447w
