Straight Sided Protection Guards

Price on Application

Category:

Description

Protect property & machinery with Protection Guards.

• TUV Approved for build quality & strength
• Highly visible colour scheme.
• Easily installed with bolts.
• Strong & cost effective
• Seamless tube construction

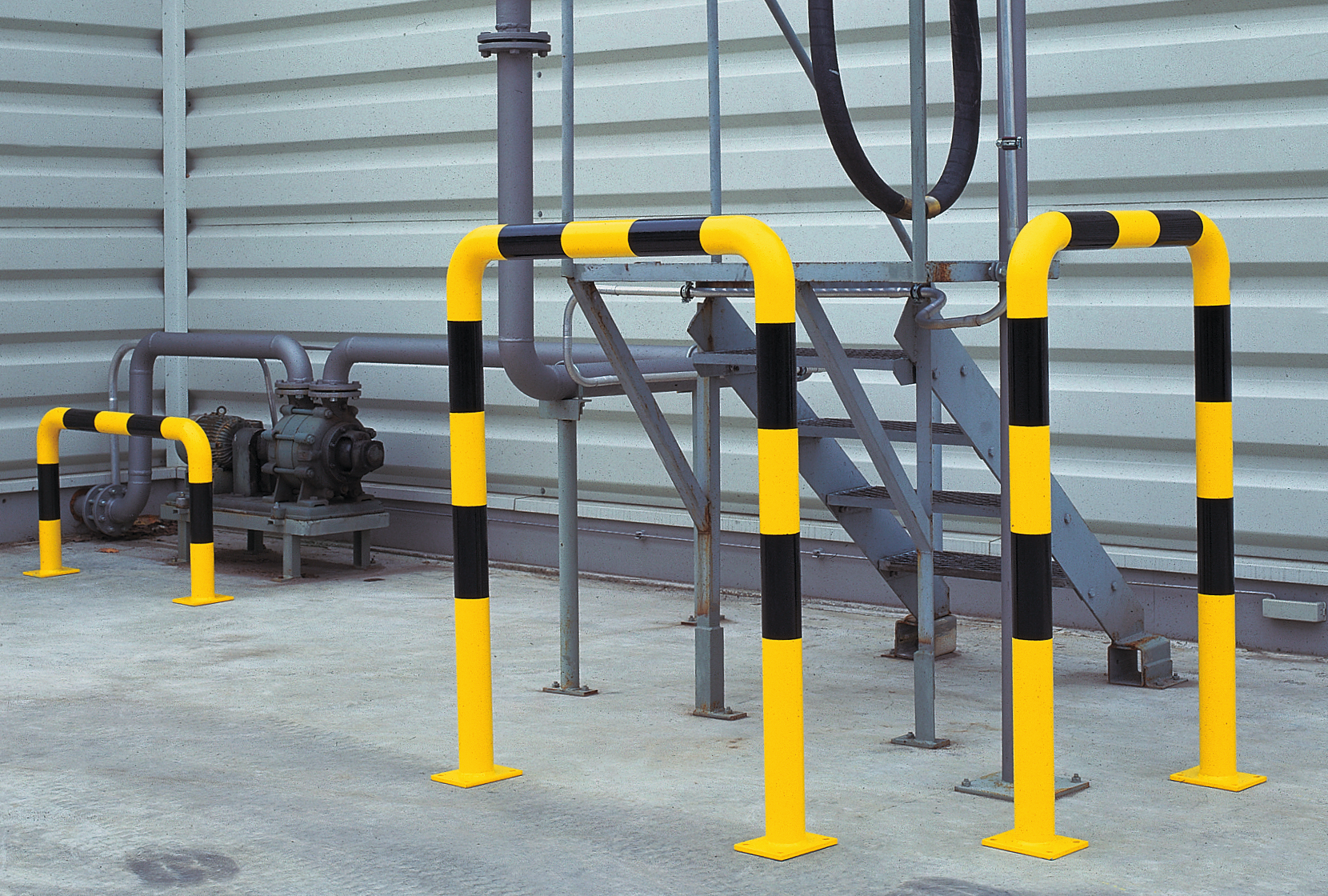

Applications: Protect stock, traffic routes & work areas, separate different traffic routes (for eg stacker lanes in warehouses & pedestrian traffic), machinery, supports, columns, shelving, loading ramps, equipment etc.

Finish – optional:
Interior: powder coated yellow with black striping (PC)

Exterior: hot dip galvanised, powder coated yellow with black striping (HDG & PC)

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-9wq8{border-color:inherit;text-align:center;vertical-align:middle}
.tg .tg-ee30{background-color:#ffffff;border-color:inherit;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-c3ow{border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-7bjv{background-color:#680100;border-color:inherit;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-nbj5{background-color:#FFF;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-4px2{background-color:#680100;border-color:inherit;color:#ffffff;text-align:center;vertical-align:top}
.tg .tg-rq3n{background-color:#ffffff;border-color:inherit;text-align:center;vertical-align:middle}
.tg .tg-3xi5{background-color:#ffffff;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-uzvj{border-color:inherit;font-weight:bold;text-align:center;vertical-align:middle}
.tg .tg-rcip{background-color:#FFF;border-color:inherit;text-align:center;vertical-align:middle}
.tg .tg-sb5n{background-color:#680100;border-color:inherit;color:#ffffff;font-weight:bold;text-align:center;vertical-align:middle}

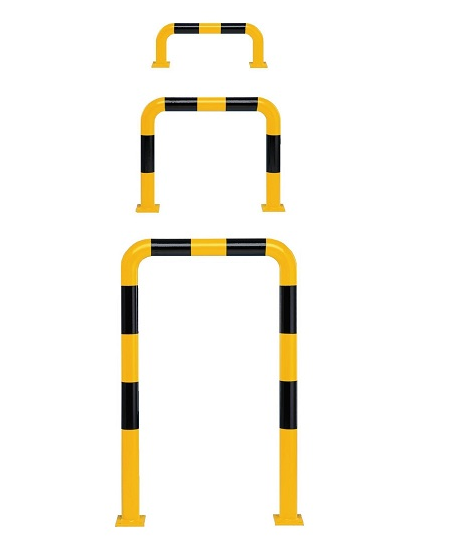

 Protection Guards,
3mm Wall Thickness
Surface Mounted		 Height Width Ø Finish Applications Weight Type
Image 350mm 750mm 76mm powder-coated indoor 12kg 5786w
hot-dip galvanised and powder-coated indoor and outdoor 5787w

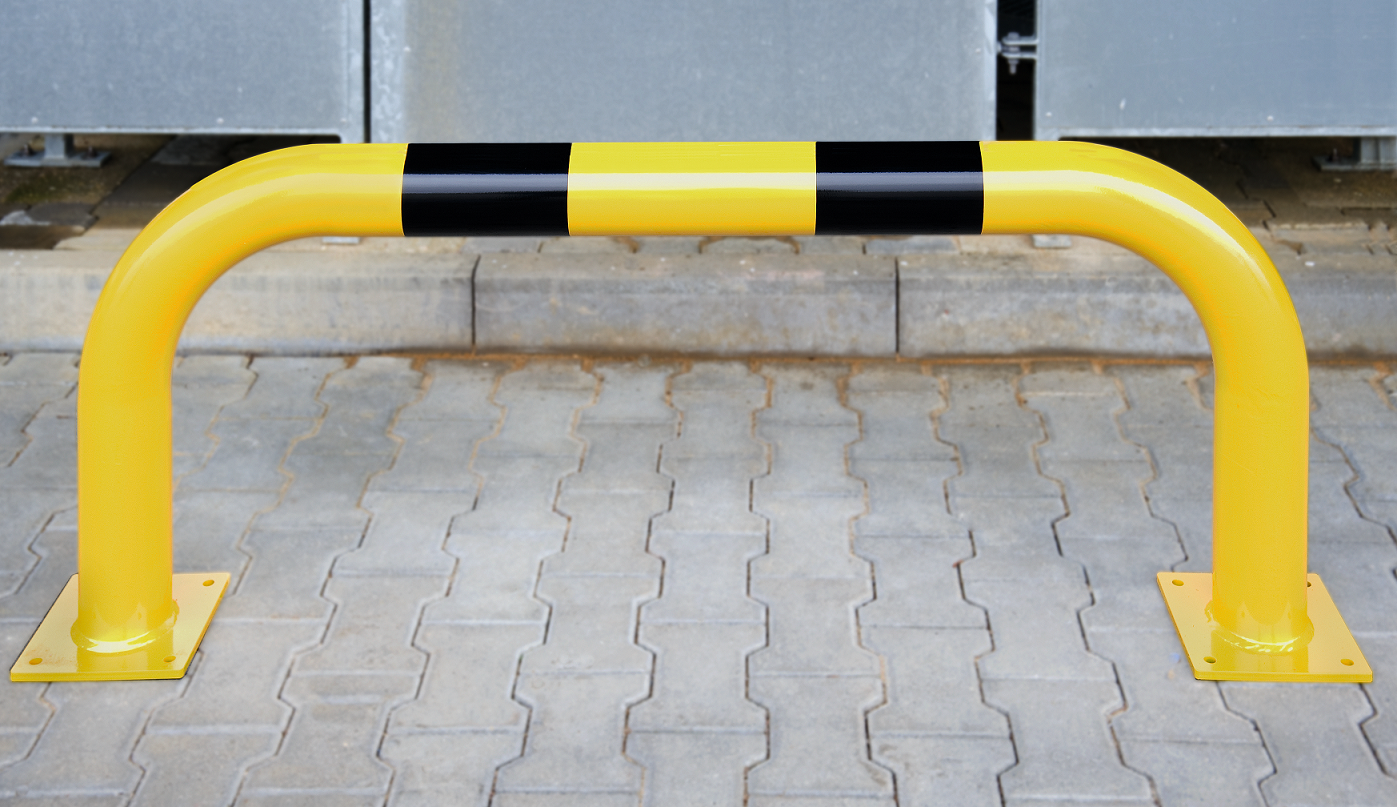

Image 350mm 1000mm 76mm powder-coated indoor 13kg 5788w
hot-dip galvanised and powder-coated indoor and outdoor 5789w
Image 350mm 2000mm 76mm powder-coated indoor 17kg 9762w
hot-dip galvanised and powder-coated indoor and outdoor 9763w
Image 600mm 750mm 76mm powder-coated indoor 14kg 5790w
hot-dip galvanised and powder-coated indoor and outdoor 5791w

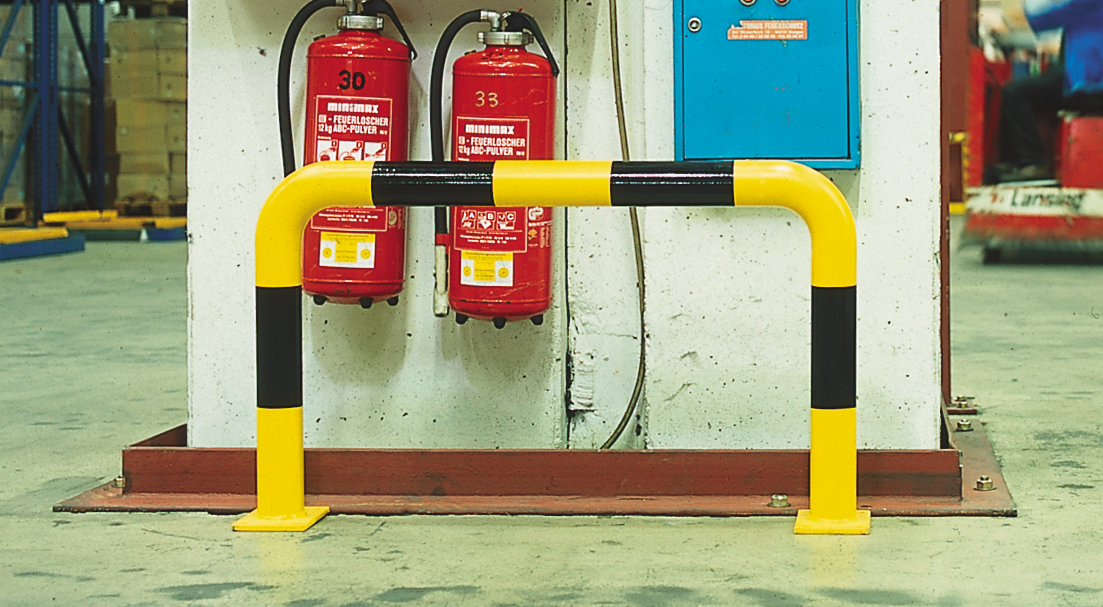

Image 600mm 1000mm 76mm powder-coated indoor 16kg 5792w
hot-dip galvanised and powder-coated indoor and outdoor 5793w
Image 600mm 2000mm 76mm powder-coated indoor 19kg 9764w
hot-dip galvanised and powder-coated indoor and outdoor 9765w
Image 1200mm 750mm 76mm powder-coated indoor 20kg 5794w
hot-dip galvanised and powder-coated indoor and outdoor 5795w
Image 1200mm 1000mm 76mm powder-coated indoor 22kg 5796w
hot-dip galvanised and powder-coated indoor and outdoor 5797w
Image 1200mm 2000mm 76mm powder-coated indoor 25.5kg 9766w
hot-dip galvanised and powder-coated indoor and outdoor 9767w
Fixings Description Type
Image Through Bolt Anchors 12 x 120mm
(Pack of 8)		 5798w
Image Rawl Bolts 8 x 100mm
(Pack of 8)		 5799w
