Description

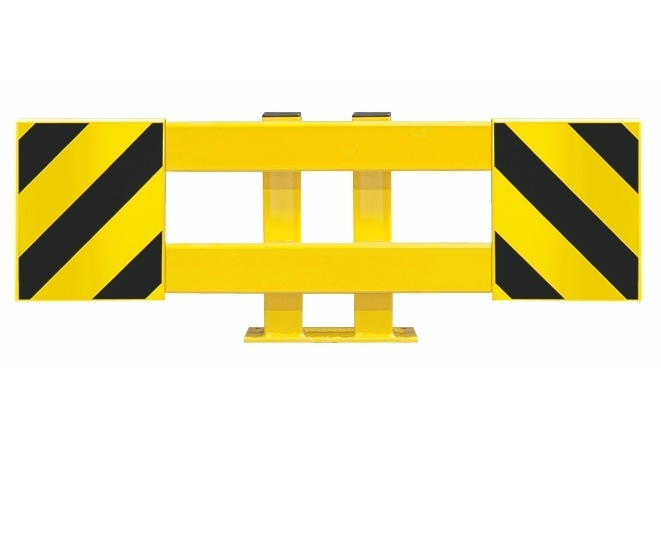

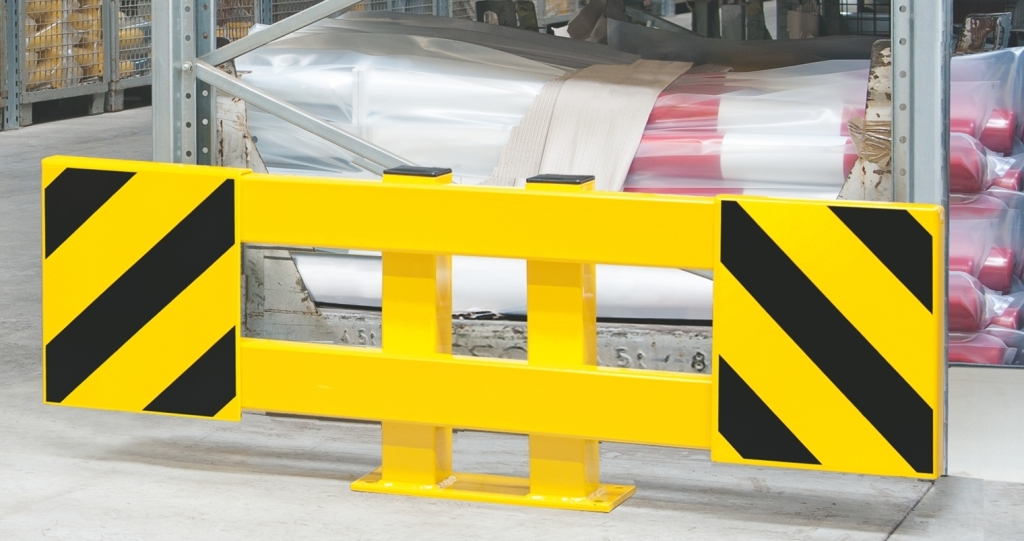

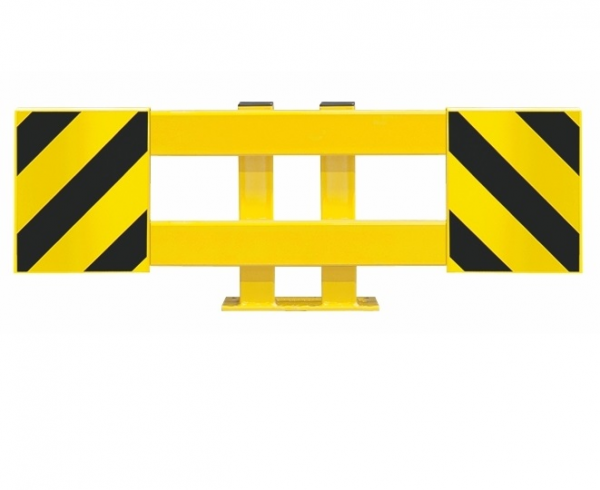

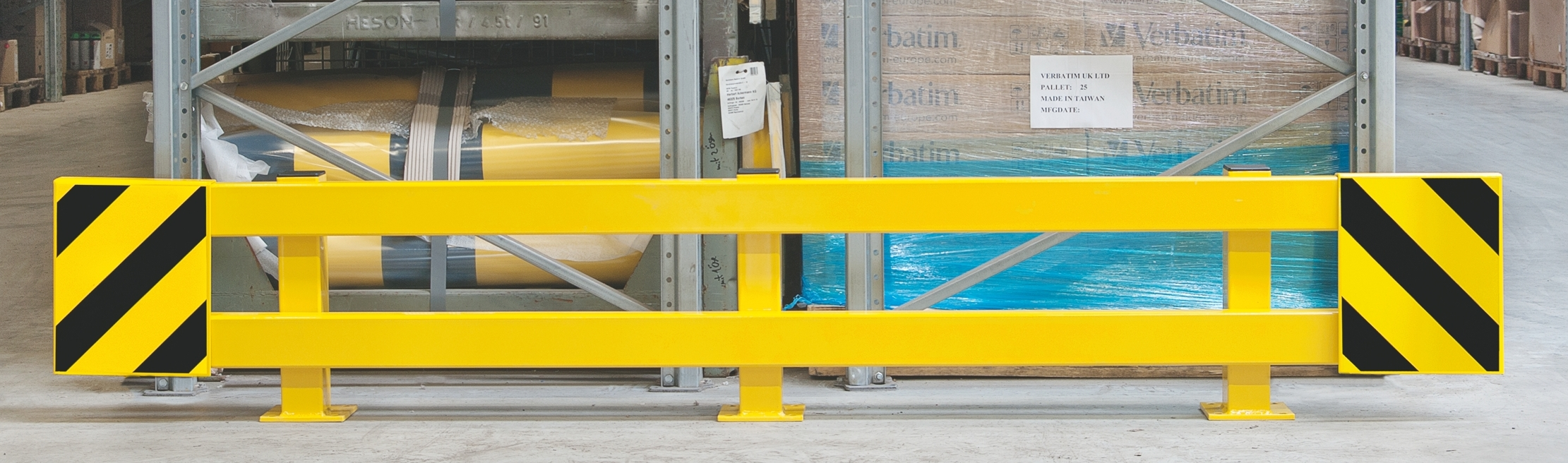

Racking End Frame Protectors provide protection for vulnerable Racking End Frames from potentially hazardous damage from forklift trucks or other vehicles. These strong adjustable protectors are easily installed and adjusted to your requirements.
• Highly visible.
• Strong effective protection.
• Adjustable to width.
• Easily installed with minimum loss of space.
Applications:
Warehouses, distribution depots, manufacturing units etc.
Specifications:
Dimensions
• Posts: 465mmH x 80 x 80mm Square
• Rails: ‘C’ Profile – 100D x 40W x 3mm Gauge
• Anchor plates: 160D x 140W x 10mm Gauge
• All sets: 465mm High x 160mm Deep
• Set 1 Adjustable Width: 900mm to 1,300mm
• Set 2 Adjustable Width: 1,700mm to 2,100mm
• Set 3 Adjustable Width: 2,300mm to 2,700mm
Material:
• Posts, rails & end plates: Steel
• Securing blocks: Aluminium
Finishes:
• Indoor: Powder Coated Yellow with Black stripes on End plates
Each Set comprises the following:
Set 1 – 900 to 1,300mm
• 1 x Double post on base
• 2 x Rails 900mmL (‘C’ Profile)
• 2 x End Plates

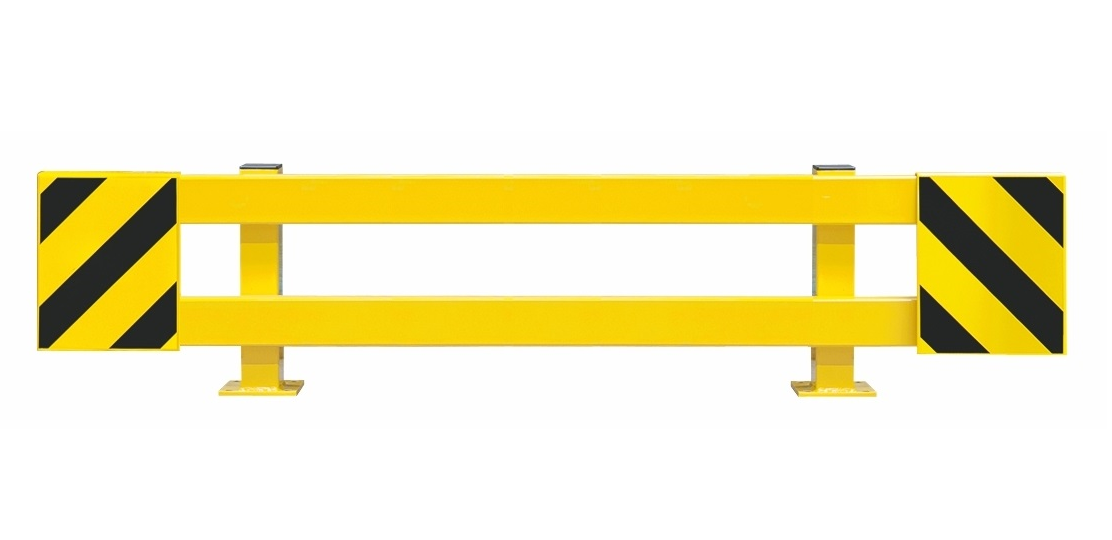

Set 2 – 1,700 to 2,100mm
• 2 x Posts
• 2 x Rails 1,800mL (‘C’ Profile)
• 2 x End Plates

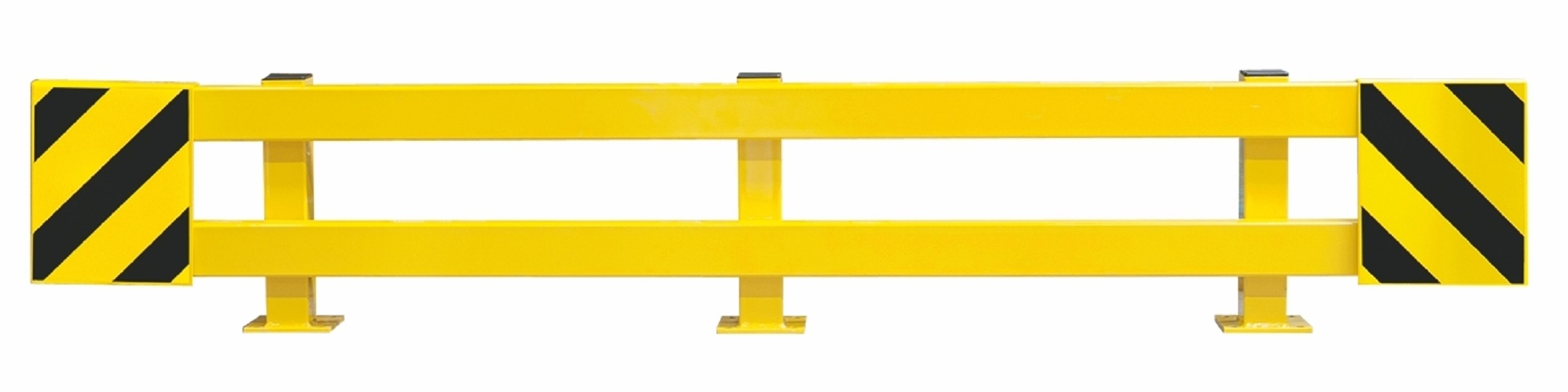

Set 3 – 2,300 to 2,700mm
• 3 x Posts
• 2 x Rails 2,300mmL (‘C’ Profile)
• 2 x End Plates
