Description

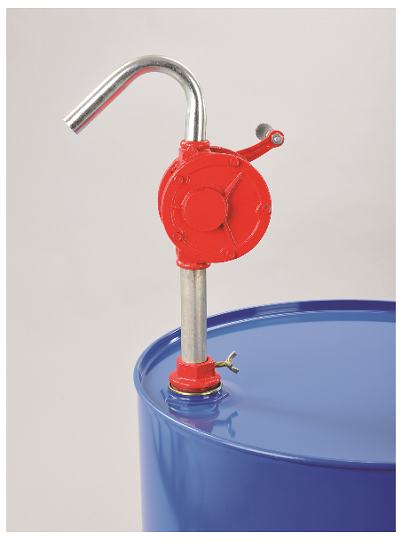

General purpose hand operated cast iron rotary barrel pumps for use with all petroleum products.

• Fluid: all grades of oil ~ diesel ~ petrol ~ anti-freeze ~ kerosene
• Flowrate: 25 litres per minute
• Viscosity: 440 cSt / SAE30
• Inlet/outlet mm: 30 / 25
• Wetted parts: cast iron ~ sinter steel ~ nitrile
• Fitting: 2″ BSP barrel adaptor
• Riser: rigid 1015mm long approx
• Weight: 4.8 kg

Additional information:

Insulated Anti-Static Grounding Wires:
Static electricity may be generated by the operation of hand pumps – particularly rotary pumps. In order to prevent sparking caused by static build-up, when pumping flammable liquids, a bonding wire must be used. ie. the container must be grounded to earth by means of a conductive earthing lead fastened between the container and a suitable grounded earth point.
