Description

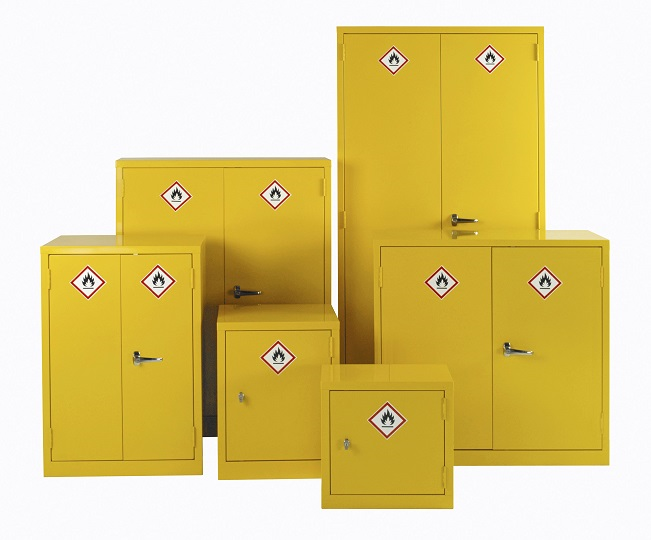

Hazardous Substance Storage Cabinets are designed to provide safe storage of Flammable Liquids, Chemicals, Paints, Pesticide and other Hazardous Substance.
Cabinets and bins comply with the requirements of:
• The guidelines set out in the Health and Safety Executive Guide HSG51 for the Storage of Flammable Liquids in Containers.
• The Highly Flammable Liquids and Liquid Gases Regulations, Section 5 (1,D) and the guide to regulation No. 5 (17)
• The factory inspectorates Certificate of Approval No. 1 parts 3 and 4.
• The Dangerous Substance and Explosive Atmospheres Regulations (DSEAR) Approved Code of Practice (ACoP) L136 paragraphs 94-96 along with Appendices A & B and paragraph 104.
Cabinet Specifications:

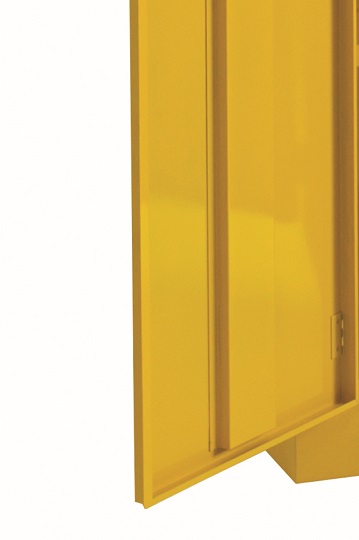

• Constructed in 1.2mm thick mild steel, with welded seams.

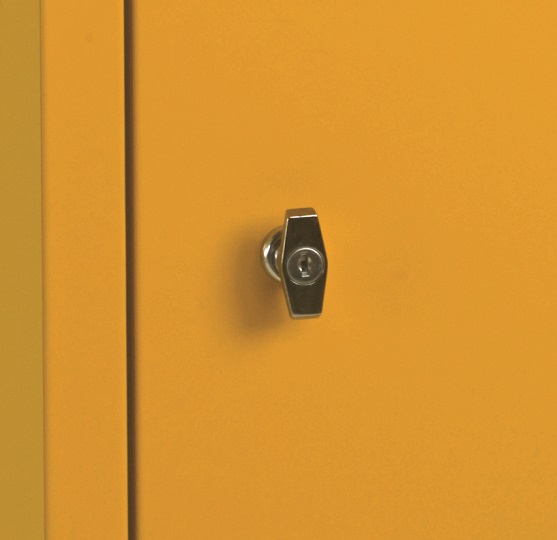

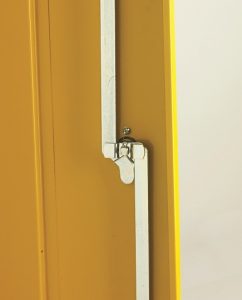

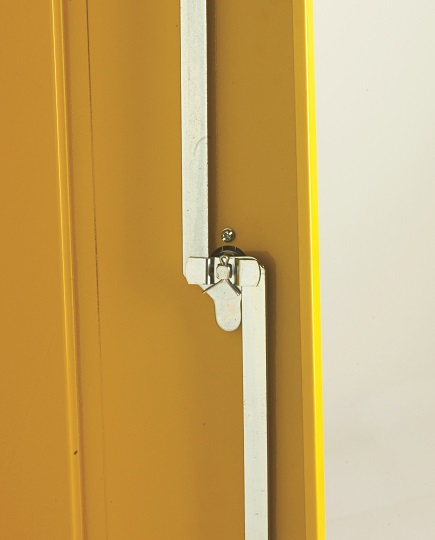

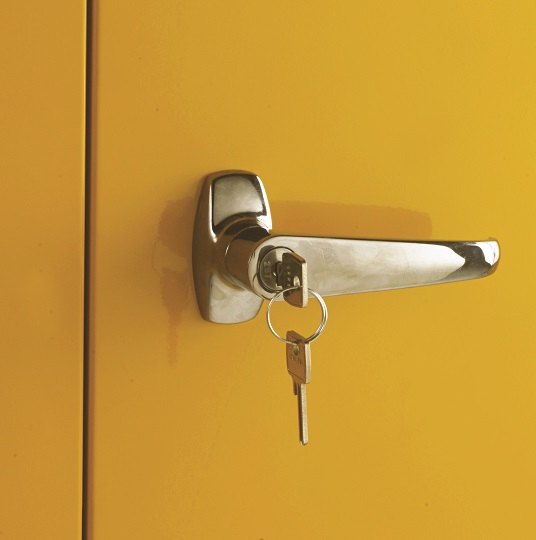

• Steel ‘L’ style lever handle and two steel locking rods top and bottom (supplied with two keys).
• Supplied with fully welded shelf trays (adjustable on 25mm pitches) to retain minor spills.
• Epoxy polyester powder coated in yellow.
• Supplied with the relevant warning labels displayed on the doors in accordance with BS5378.
• Integral, non-removable, spillage sump in the base of the cabinet/bin (50 – 100mm dependant upon cabinet size).
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
| Cabinet description
| Dimensions
| Type
|

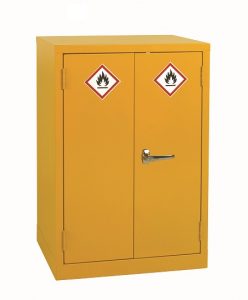

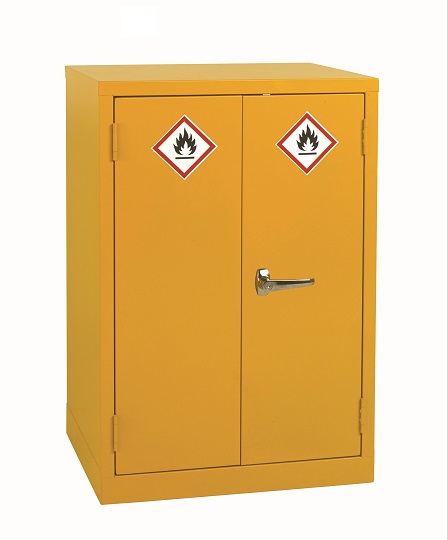

| With 1 Shelf |
H900 x W600 x D500mm |
9313w |

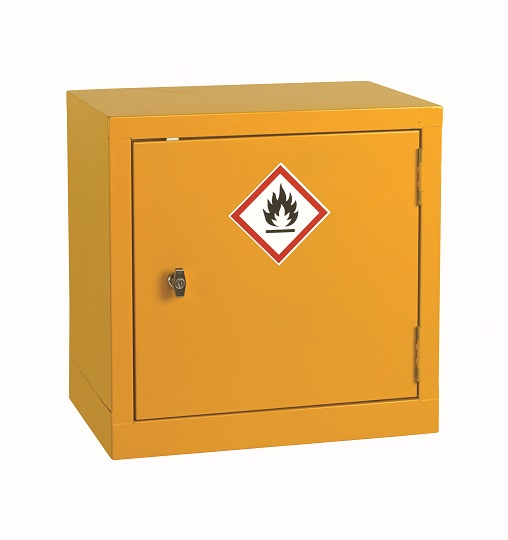

| With 1 Shelf |
H457 x W457 x D305mm |
9314w |

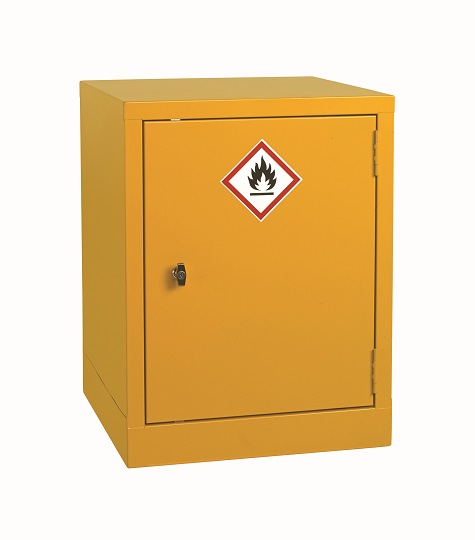

| With 1 Shelf |
H609 x W457 x D457mm |
9315w |

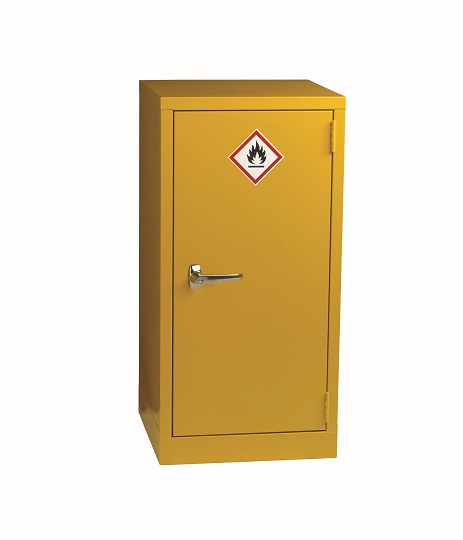

| With 1 Shelf |
H915 x W457 x D457mm |
9316w |

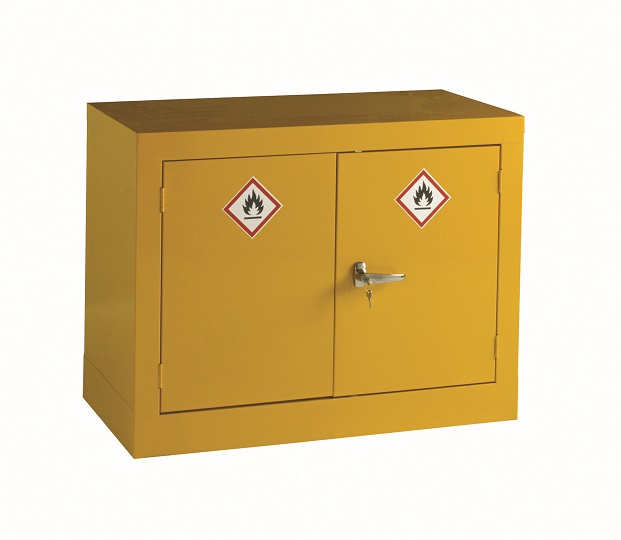

| With 1 Shelf |
H711 x W915 x D457mm |
9317w |

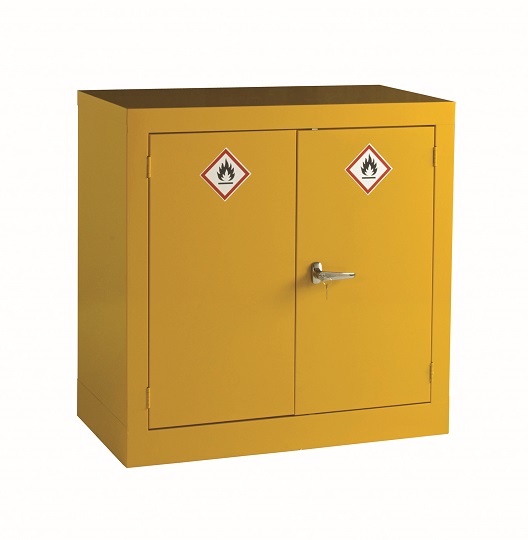

| With 1 Shelf |
H915 x W915 x D457mm |
9318w |

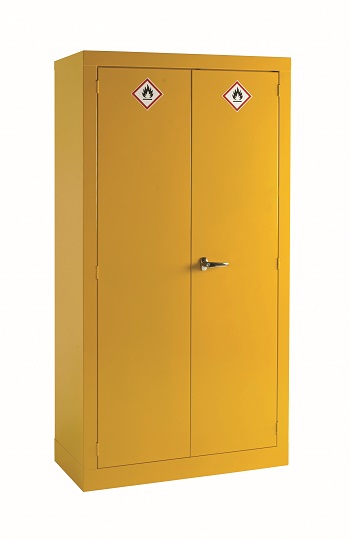

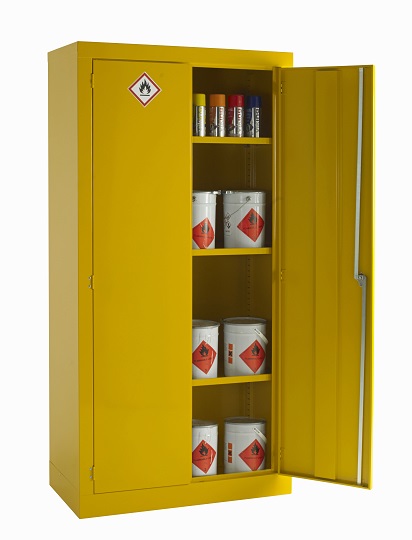

| With 3 Shelves |
H1829 x W915 x D457mm |
9319w |

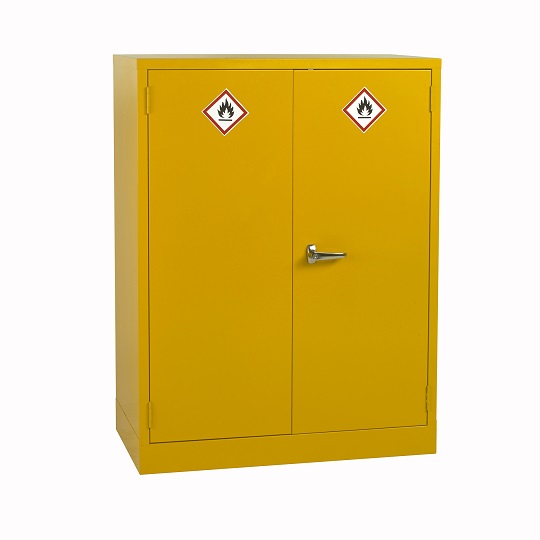

| With 2 Shelves |
H1219 x W915 x D457mm |
9323w |

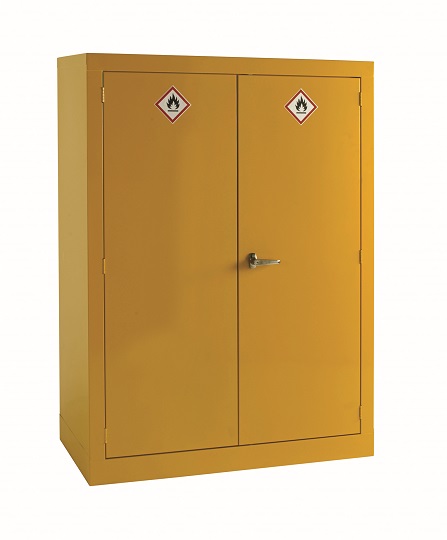

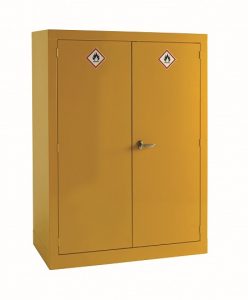

| With 2 Shelves |
H1524 x W915 x D457mm |
9324w |

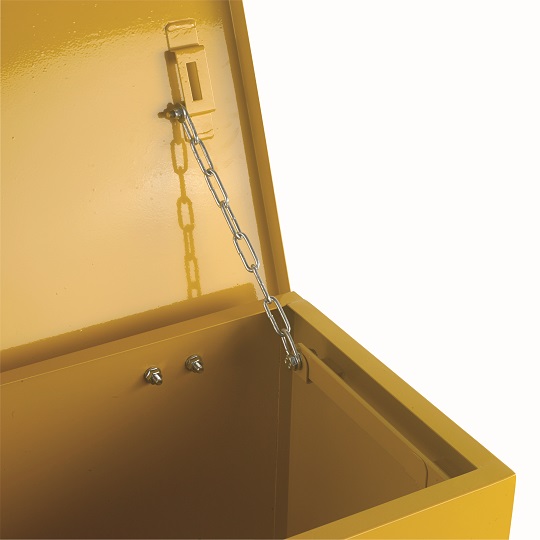

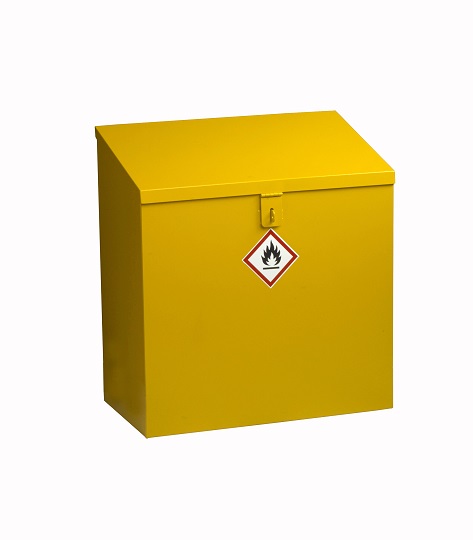

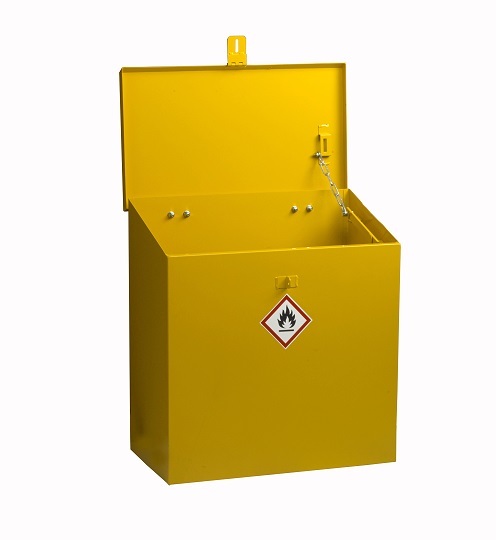

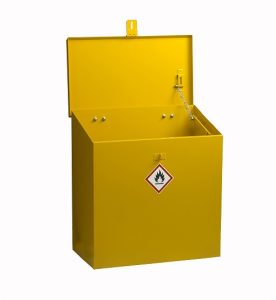

| Flat Top Storage Bin |
H508 x W609 x D330mm |
9325w |

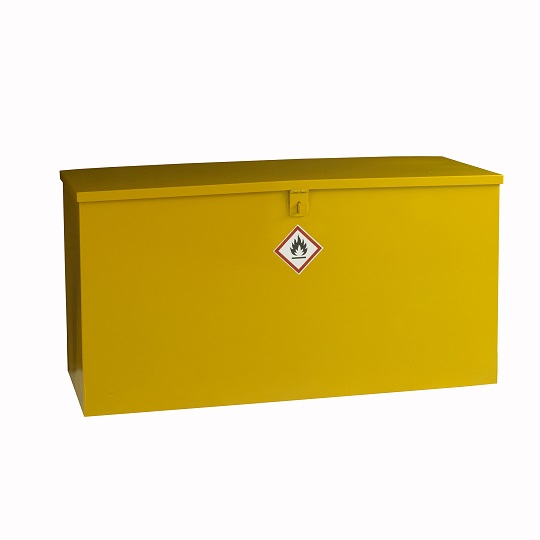

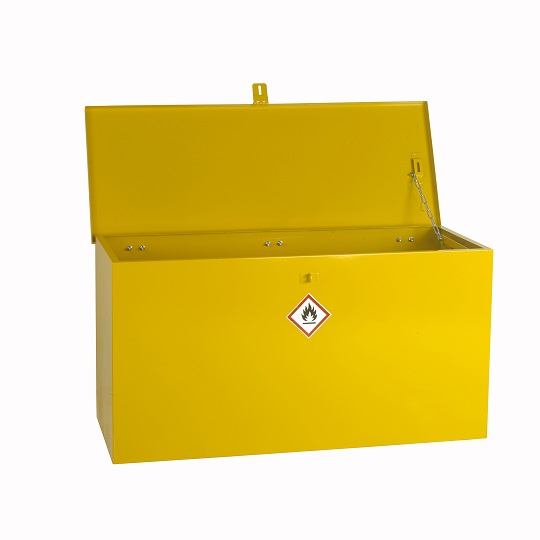

| Flat Top Storage Bin |
H609 x W1168 x D457mm |
9326w |
| Sloping Top Storage Bin |
H660 x W609 x D330mm |
9327w |

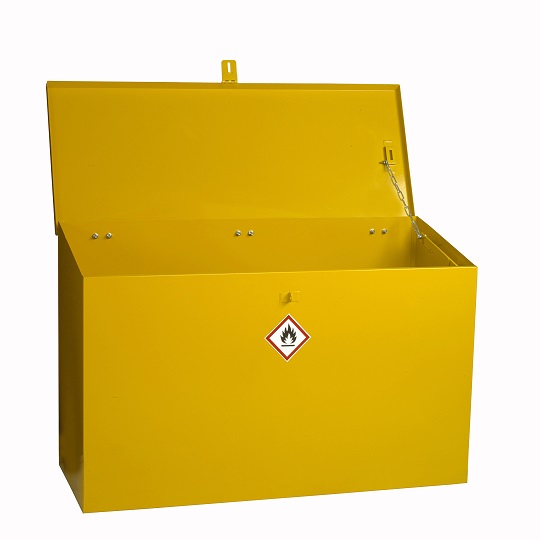

| Sloping Top Storage Bin |
H760 x W1170 x D460mm |
9328w |
| Accessories |
| Description |
Dimensions |
Type |

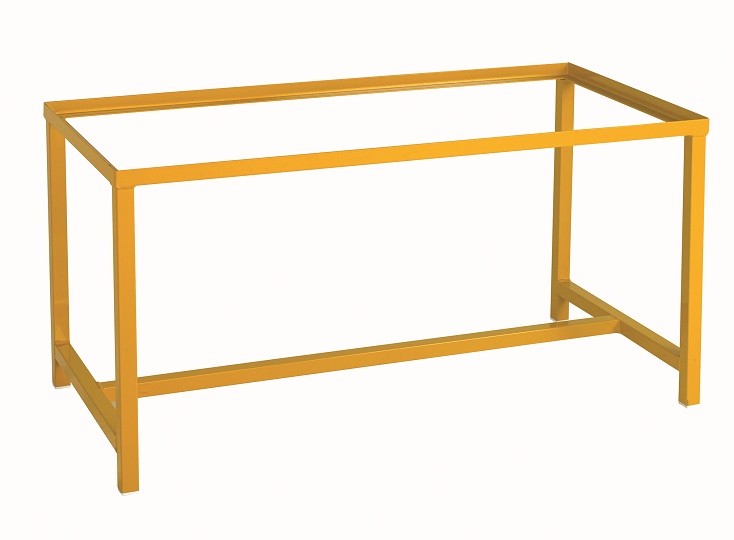

| Cabinet Stand for 9317w & 9318w |
H460 x W915 x D457mm |
9320w |

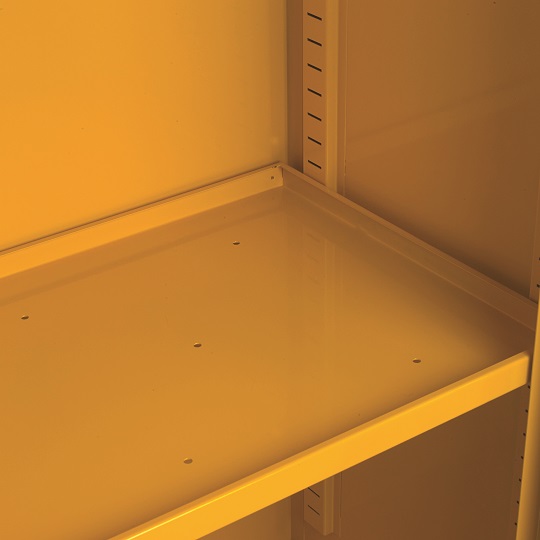

| Cabinet Additional Shelf |
W457 x D457mm |
9321w |
| Cabinet Additional Shelf |
W915 x D457mm |
9322w |
