Description
• Electric motor
• Electric overload protection
• Portable hand control unit on a cable
• Automatic battery charger
• Maintenance free batteries
• Come with nylon platform as standard
• Compact, lightweight and highly manoeuvrable
• Ideal for use in narrow aisles and confined spaces
Other interchangeable attachments are available – see illustrations above. Please note, attachments will be factory fitted to Work Positioner at time of order.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-ekg0{background-color:#EFEFEF;font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-y42o{background-color:#680100;color:#FFF;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-kxn2{background-color:#EFEFEF;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
SEMI ELECTRIC WORK POSITIONERS |
Type |

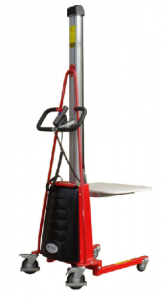

2386w** |

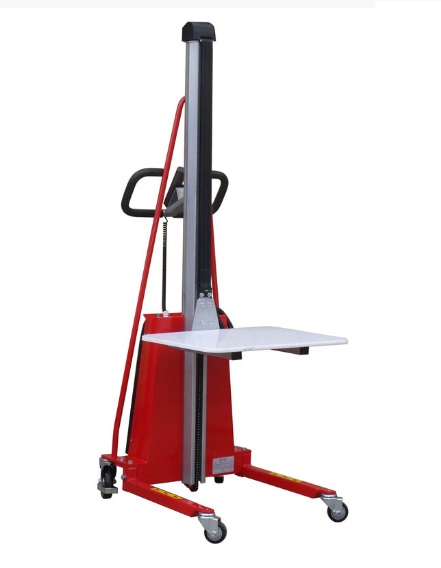

2557w** |

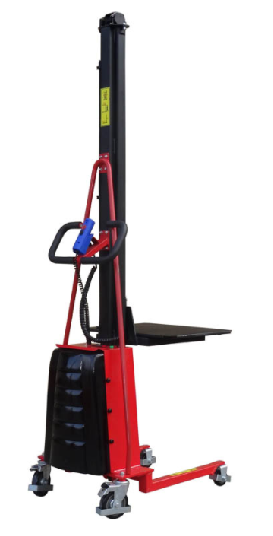

9773w* |

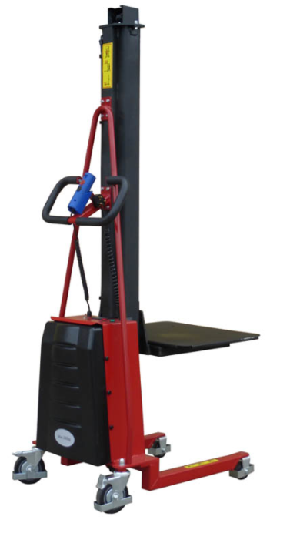

9774w* |
Capacity |
100kg |
150kg |
250kg |
300kg |
Load centre |
235mm |
235mm |
200mm |
200mm |
Min height to platform |
130mm |
130mm |
130mm |
130mm |
Max height to platform |
1700mm |
1500mm |
1905mm |
1500mm |
Platform L x W |
475 x 600mm |
475 x 600mm |
475 x 610mm |
475 x 600mm |
Width between legs |
480mm |
480mm |
480mm |
480mm |
Overall width of legs |
560mm |
560mm |
560mm |
565mm |
Height to top of legs |
110mm |
110mm |
120mm |
120mm |
Wheel Material |
Polyurethane |
Polyurethane |
Polyurethane |
Polyurethane |
Load wheels |
75mm dia |
75mm dia |
75mm dia |
75mm dia |
Steering wheels |
125mm dia |
125mm dia |
125mm dia |
125mm dia |
Overall L x W |
840 x 600 |
840 x 600mm |
840 x 600mm |
870 x 740mm |
Overall height |
1980mm |
1780mm |
2220mm |
1940mm |
Battery |
24v, 12AH |
24v, 12AH |
24v, 20AH |
24v, 20AH |
Weight |
66kg |
63kg |
90kg |
105kg |
OPTIONAL EXTRAS TO FIT ALL OF THE ABOVE |
Attachment |
Type |
Size |
Reel Boom |
2558w |
50mm dia x 600mm long |
Double Spindle |
2559w |
47mm dia each x 450mm long |
‘V’ Block |
8438w |
74mm dia, 100kg rated |
Ball Transfer unit |
9712w |
610 x 480mm, 100kg capacity |
Roller Platform (no stops) |
9713w |
500 x 420mm, 100kg capacity |
Roller Platform (with stops) |
9714w |
500 x 420mm, 100kg capacity |
Raised platform |
9715w |
200mm high |
Jib & Hook |
9716w |
100kg capacity, 500mm long |
* 2 swivel castors / 2 fixed front castors
** 4 swivel castors
