Small Parts Storage/Binning Units

Price on Application

Category:

Description

  • Small parts storage units are ideal for use in workshops and assembly areas
  • Smaller units can be sited on benches
  • Raised bin fronts provide secure and accessible compartments that are easy to pick from and restock
  • Strong cold rolled steel construction won’t warp, twist or sag
  • Fully welded construction
  • Powder coated finish
  • Optional base unit is available



Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}

Bins per unit Bin W x D x H OA W x D x H Weight Type

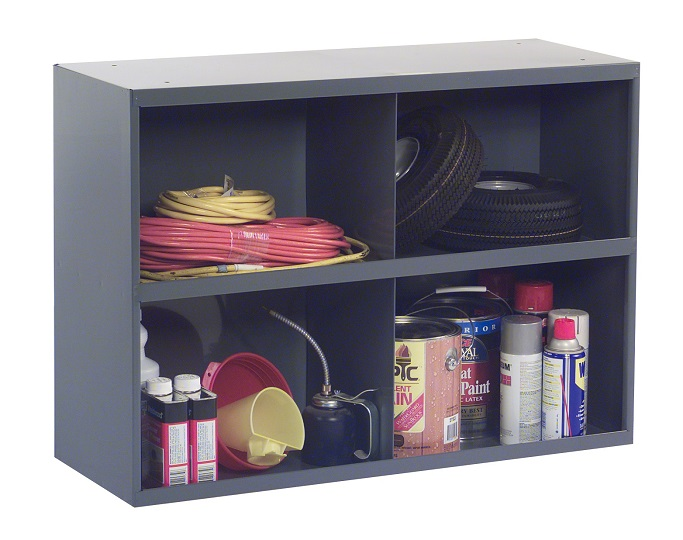

4 425 x 302 x 302mm 857 x 305 x 606mm 18kg 4122w

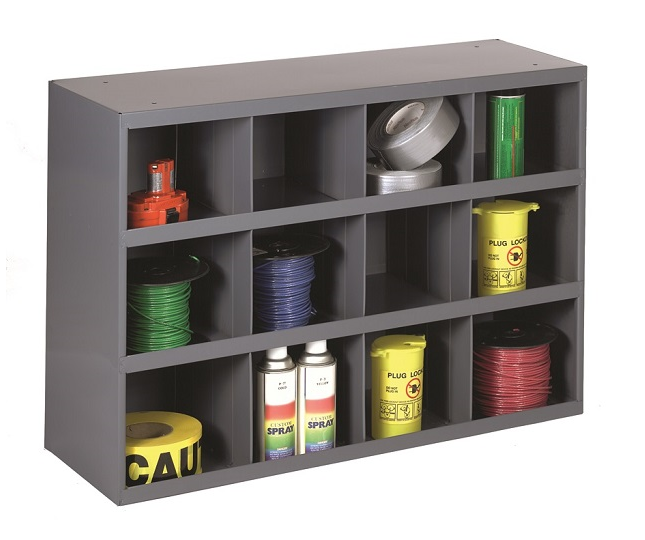

12 203 x 302 x 168mm 857 x 305 x 606mm 16kg 4123w
20 203 x 302 x 216mm 857 x 305 x 1067mm 25kg 4124w

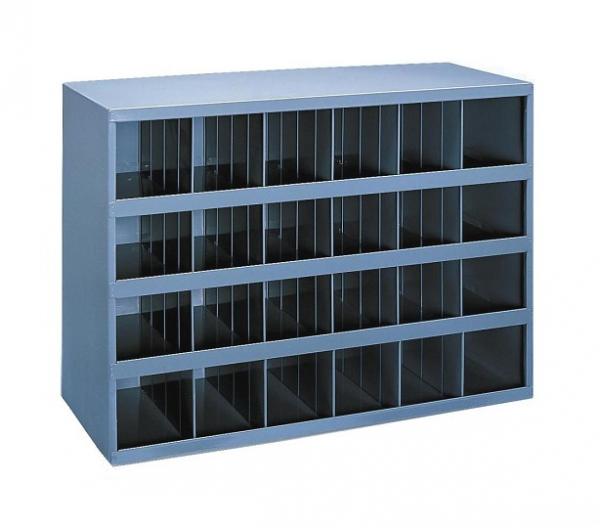

24 203 x 302 x 140mm 857 x 305 x 606mm 20kg 4125w
40 102 x 302 x 114mm 857 x 305 x 606mm 23kg 4126w
42 203 x 302 x 140mm 857 x 305 x 1067mm 32kg 4127w

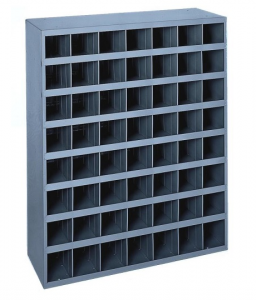

56 225 x 302 x 130mm 857 x 305 x 1067mm 34kg 4128w

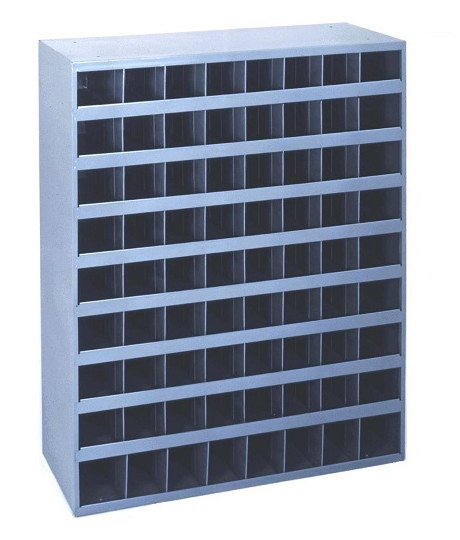

72 102 x 302 x 114mm 857 x 305 x 1067mm 36kg 4129w
OPTIONAL EXTRA
Description Type

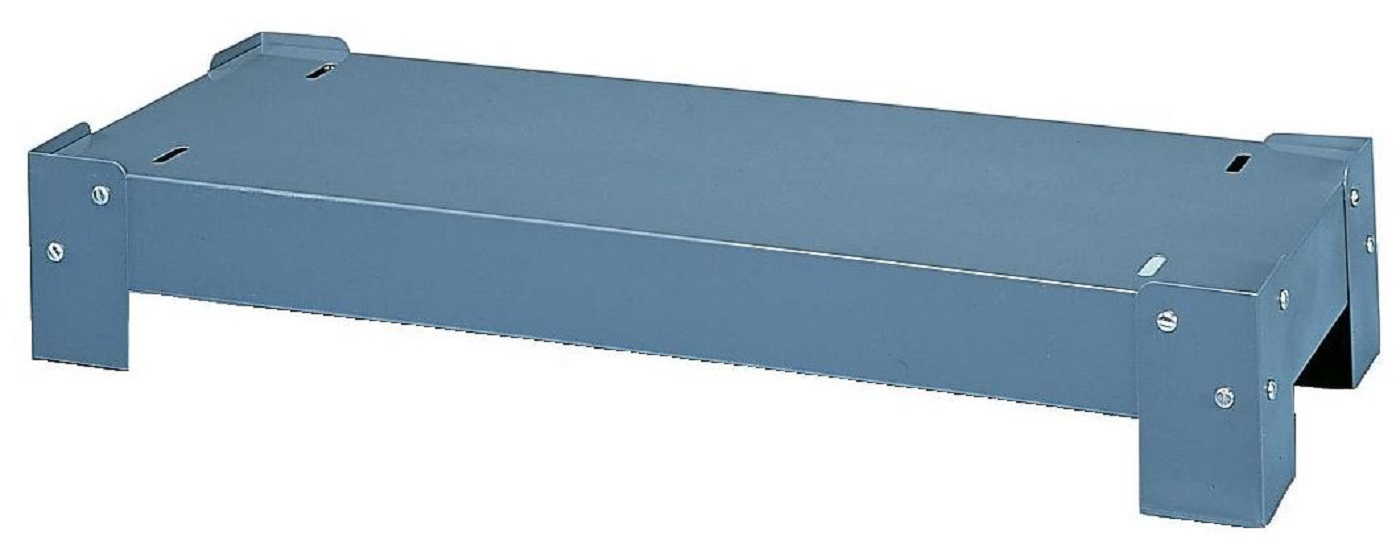

Base unit 4130w
