Description

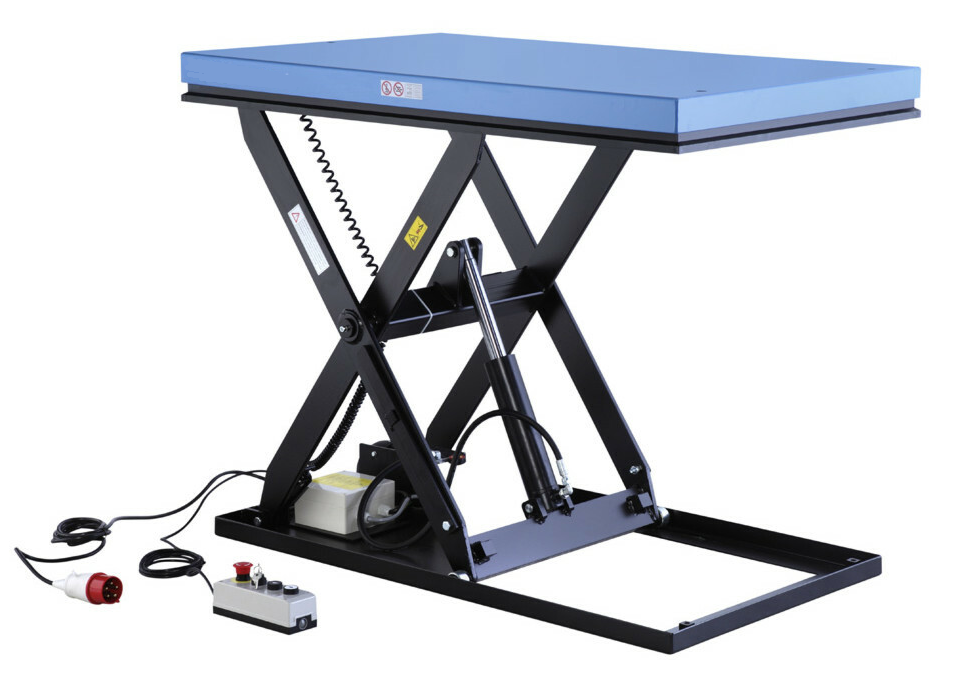

Mains Operated Static Lift Tables with 500kg capacity
- Voltage: 380v, 16A, 3 phase
- Lifting Motor: 0.7kw
- Safety cut off bars
- Safety cut off valve in the event of power failure
- High quality powder coating
- Robust steel construction
- German design and components
- Can be fixed or sunk into the ground
- CE certified
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
| Type
| 7524w
|
| Capacity |
500kg |

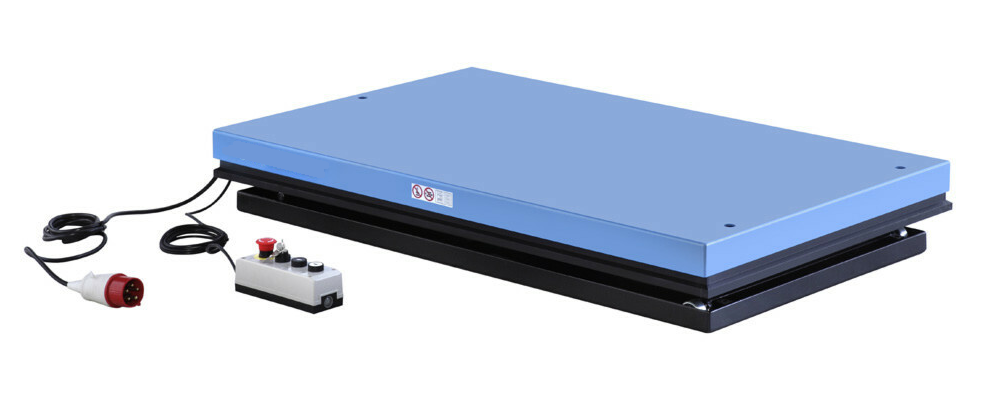

| Lowered height to top of table |
190mm |
| Raised height to top of table |
1010mm |
| Platform size W x L |
800 x 1300mm |
| Lifting speed |
55mm/sec |
| Lift motor |
0.75kW |
| Operation |
380v, 16A, 3 phase |
| Weight |
160kg |
