Price on Application
• Simple and easy installation
• Triple ridge barrier for strength and rigidity
• Rolled top and bottom edges help eliminate sharp edges

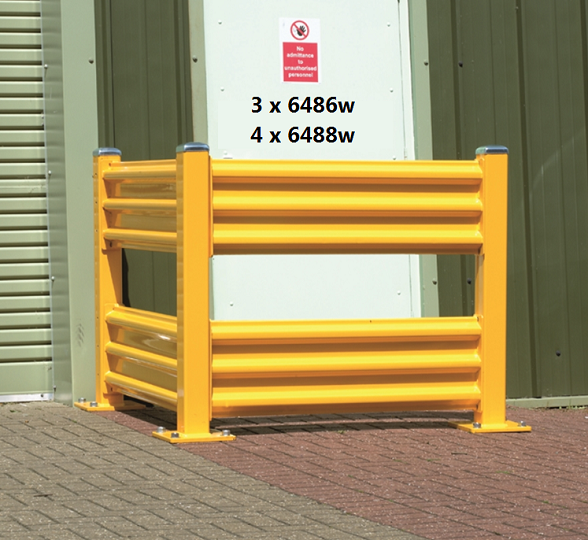

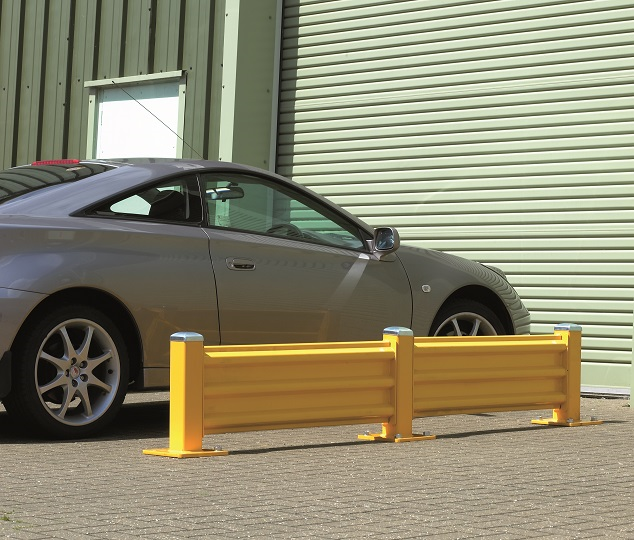

• This system is available with single & double height posts
• Double height posts further deter access to machinery etc
• The posts are suitable for use as both “In Line” posts & Corner posts
• Tailor make your own barrier
• Mounting plate 254mm x 254mm
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-7fle{background-color:#efefef;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-4k42{background-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
| POSTS | ||||
|---|---|---|---|---|
| Description | Post W x D x H | Mounting plate W x D | Weight | Type |

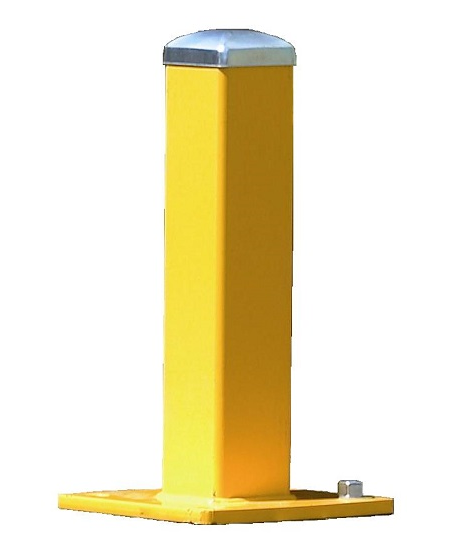

| Single height post | 100 x 100 x 483mm | 254 x 254mm | 16.5kg | 6485w |

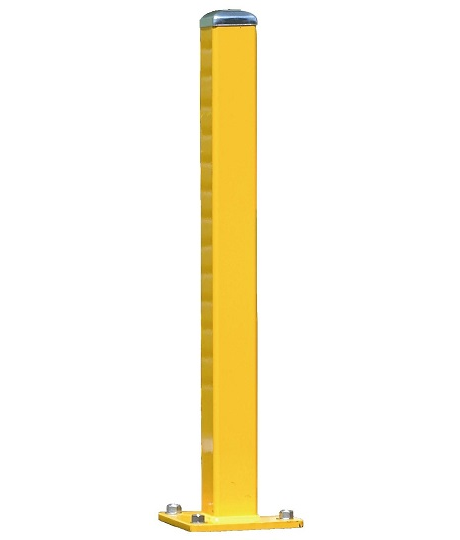

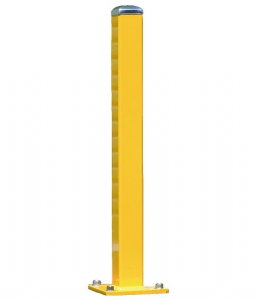

| Double height post | 100 x 100 x 1093mm | 254 x 254mm | 27.5kg | 6486w |
| BARRIERS | ||||
| Barrier length | Barrier H x D | Weight | Type | |
| 508mm | 375 x 90mm | 10kg | 6487w | |
| 1118mm | 375 x 90mm | 18kg | 6488w | |
| 1728mm | 375 x 90mm | 26kg | 6489w | |
| 2337mm | 375 x 90mm | 34.5kg | 6490w | |
