Steel Drum Band Heaters

Price on Application

Description

>Steel drum band heaters are suitable for heating 120L and 210L drums.
> Can heat a drum from 5°C to 27°C in 5 hours depending upon drum contents
> Band heaters have multiple uses; they can be used to prevent freezing, melt solids, heat liquids and maintain a constant temperature

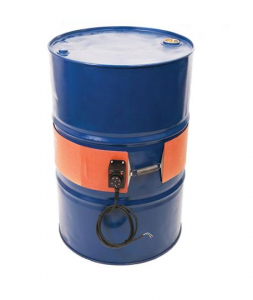

> The band is simply wrapped around the drum and fastened into position. The heating element then efficiently and safely conducts heat to the drum. Multiple bands can be used to speed up the heating process and increase temperature

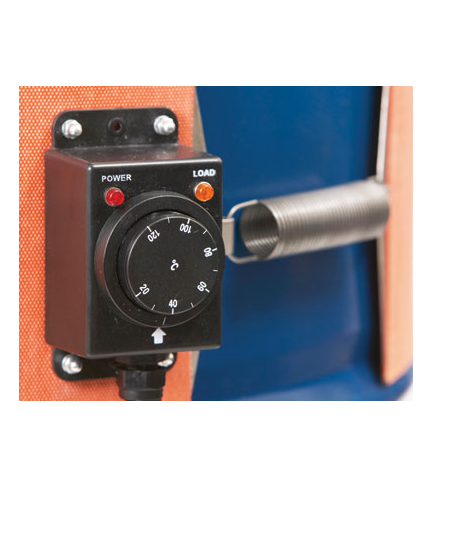

> A built in fully adjustable thermostat gives a temperature range of 20°C to 120°C

> Band heating element is housed in a flexible fibreglass reinforced silicone rubber which is resistant to temperature extremes, moisture and chemical attack

> Manufactured to BS EN 60335-1 and double insulated with class 2 electrical protection

> Note: All heaters supplied without plugs.

DOWNLOAD PDF

Specification

.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

Drum capacity 105L 200L
Electric supply 110V AC 230V AC 110V AC 230V AC 230V AC
Electric output 800W 800W 1000W 1000W 1500W
Overall L x W 1300 x 125mm 1665 x 180mm
Type 2178w 2179w 2180w 2181w 2182w
