Description

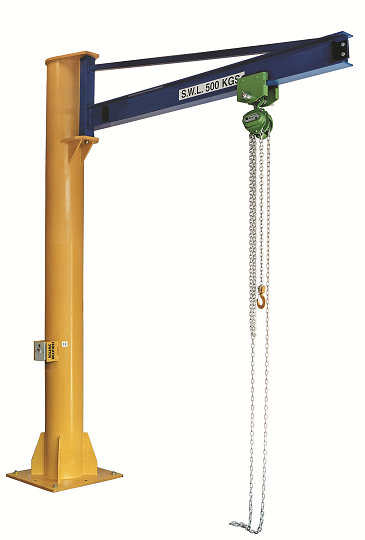

> Overbraced Swing jib cranes are available from 3m height x 3m radius upto 4m height x 4m radius,
> Can be used for inside or outside applications
> Locate around in factory or production areas (sound flooring conditions are required to anchor the jib in place)
> Floor fixings can be supplied on request
> Standard 180°, 270° or 360° slew available.
> Manual or Electric Hoists and travel trolleys not supplied as standard but are available
> Specials sizes can be developed for specific applications
> Instructions are supplied
PRICE: ON APPLICATION
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-7fle{font-weight:bold;background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-erlg{font-weight:bold;background-color:#efefef;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-9hbo{font-weight:bold;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}
| Height |
3m |
3m |
3m |
3.5m |
3.5m |
3.5m |
4m |
4m |
| Radius |
3m |
3.5m |
4m |
3m |
3.5m |
4m |
3m |
4m |
| Capacity |
Type |
Type |
Type |
Type |
Type |
Type |
Type |
Type |
| 125kg |
3952w |
3956w |
3960w |
3964w |
3968w |
3972w |
3976w |
3980w |
| 250kg |
3953w |
3957w |
3961w |
3965w |
3969w |
3973w |
3977w |
3981w |
| 500kg |
3954w |
3958w |
3962w |
3966w |
3970w |
3974w |
3978w |
3982w |
| 1000kg |
3955w |
3959w |
3963w |
3967w |
3971w |
3975w |
3979w |
3983w |
