Description

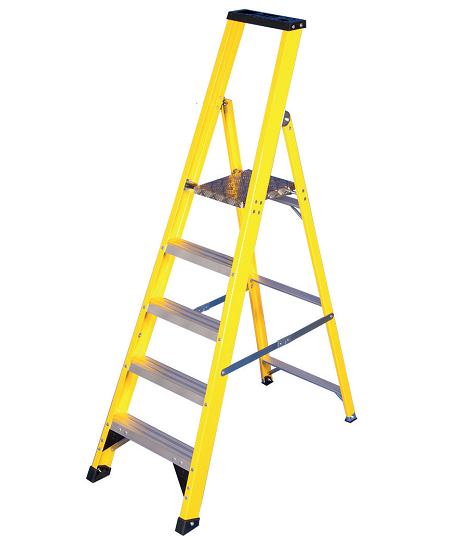

The fibreglass stepladder range incorporates a multi-functional tool tray with non-conductive stiles, making them ideal for working around electricity.
The combination of super-strong C-section fibreglass stiles and reinforced aluminium treads gives you a durable yet lightweight and easy to handle ste,p that is perfect for the busy tradesman.
Product Features
- Non-conductive stiles insulated to 30,000v (EN61478), ideal for working around electricity
- Integrated multi-function tool tray

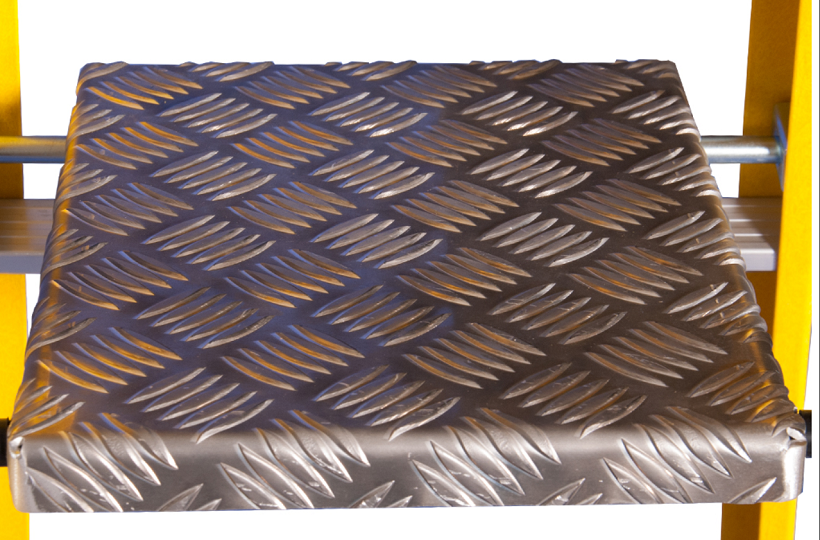

- Reinforced 320 x 248mm checker-plate platform (Platform steps only)

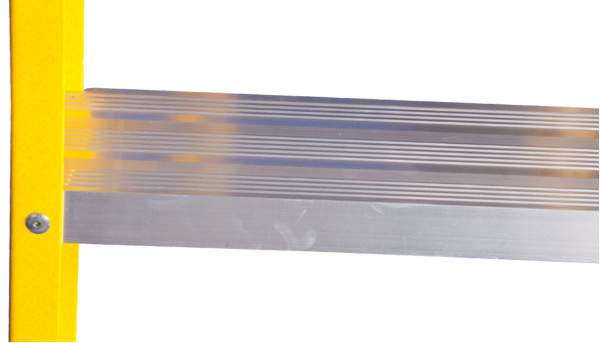

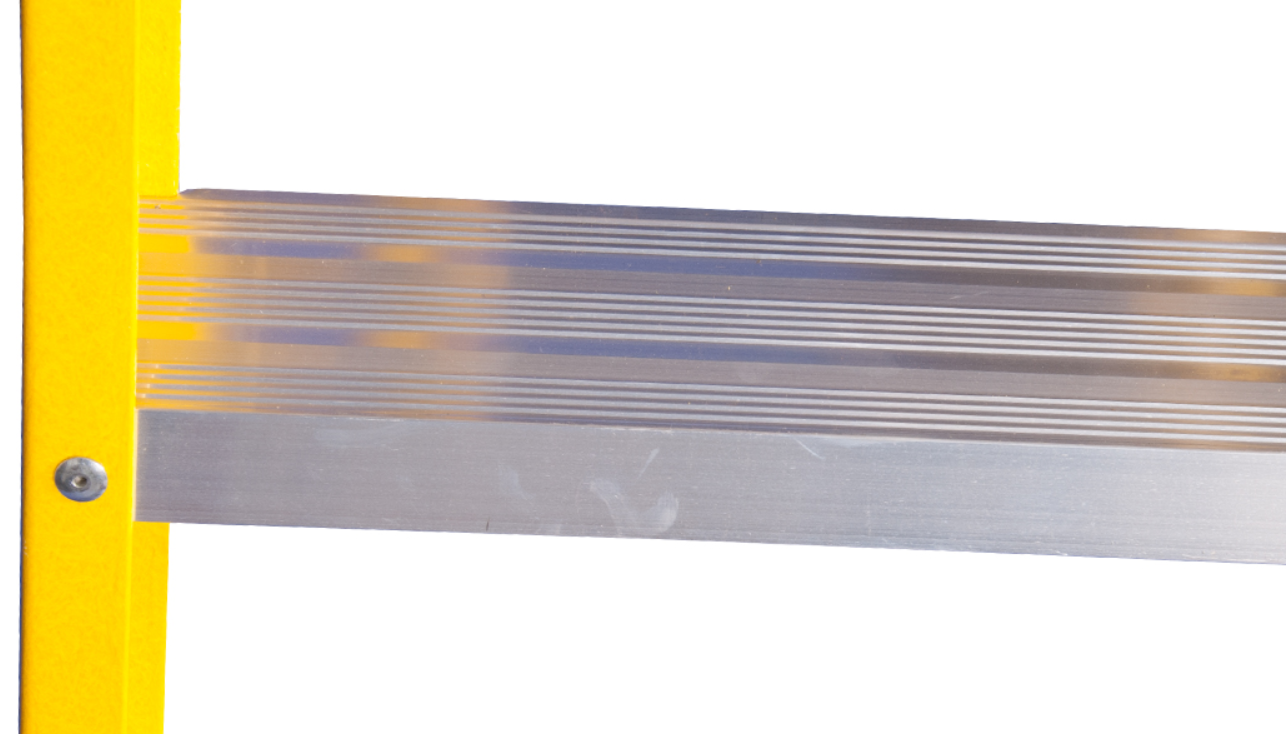

- Comfortable 80mm treads

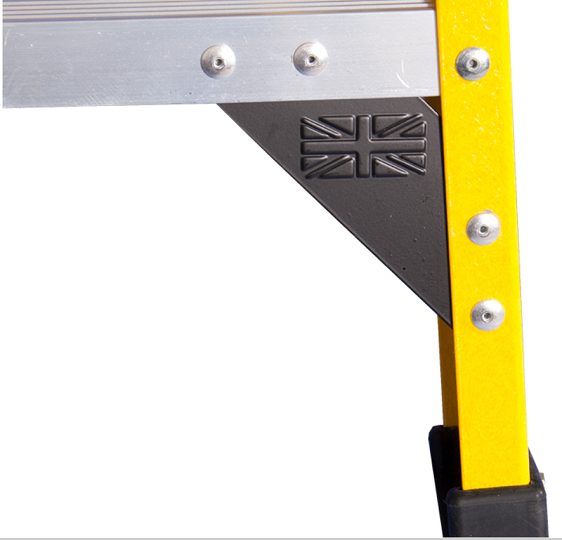

- Hinged metal locking stays provide optimal stability

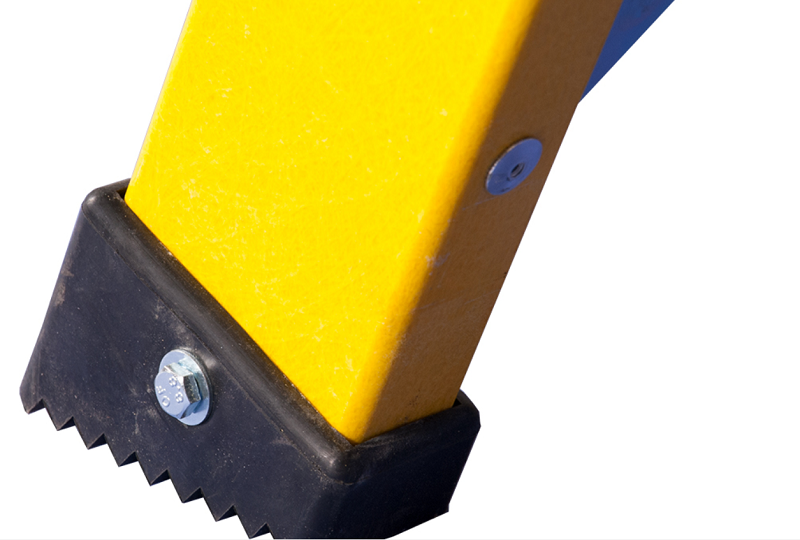

- Large feet angled to maximise ground contact and reduce slip
- 3-year warranty
- Max Load 150kg
- EN131
DOWNLOAD PDF
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:black;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}
No of Treads
| Platform height
| Approx Working Height**
| Open height
| Closed height
| Width
| Open Depth
| Weight
| Type
|
4 |
900mm |
2500mm |
1500mm |
1700mm |
500mm |
1000mm |
9kg |
4207w |
5 |
1200mm |
2800mm |
1800mm |
2000mm |
500mm |
1100mm |
10kg |
9116w |
6 |
1400mm |
3000mm |
2000mm |
2200mm |
600mm |
1300mm |
11kg |
4208w |
8 |
1900mm |
3500mm |
2500mm |
2700mm |
600mm |
1600mm |
14.5kg |
4209w |
** Working height is calculated as 1,600mm plus the height of the platform or last climbing tread, whichever is appropriate.
*Tread count includes top platform step.
