Description

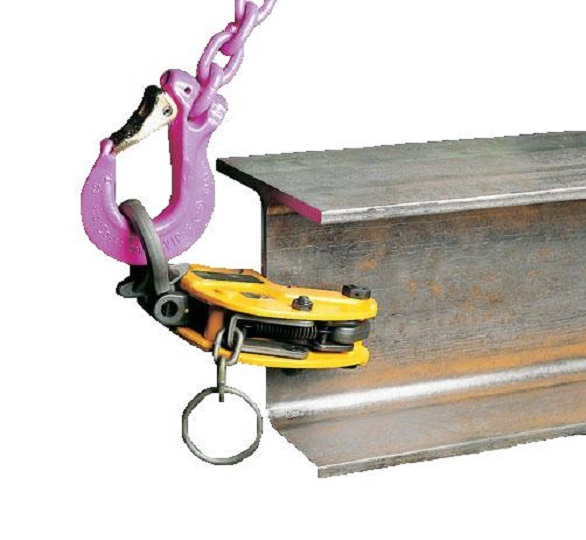

For turning and transportation of steel plates and sections
Capacity available: 500kg – 3000kg
Compact heavy duty design
Safety snap bolt mechanism locks clamp to load
Universal Clamps
Price on Application
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-amwm{font-weight:bold;text-align:center;vertical-align:top}

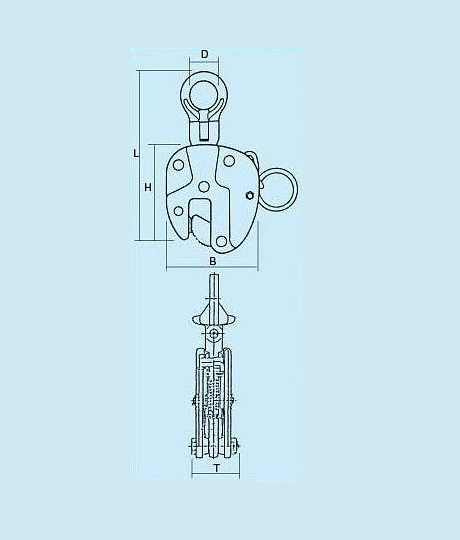

| Capacity | Range | B | D | H | L | T | Weight | Type |
|---|---|---|---|---|---|---|---|---|
| 500kg | 0-16mm | 100mm | 26mm | 110mm | 157-176mm | 49mm | 1.5kg | 2080w |
| 1000kg | 0-19mm | 125mm | 30mm | 125mm | 180-204mm | 55mm | 2kg | 2081w |
| 1500kg | 0-25mm | 160mm | 35mm | 160mm | 223-257mm | 65mm | 4kg | 2082w |
| 2000kg | 0-28mm | 174mm | 45mm | 174mm | 254-290mm | 74mm | 5.5kg | 2083w |
| 3000kg | 0-32mm | 194mm | 55mm | 194mm | 292-335mm | 76mm | 7kg | 2084w |
