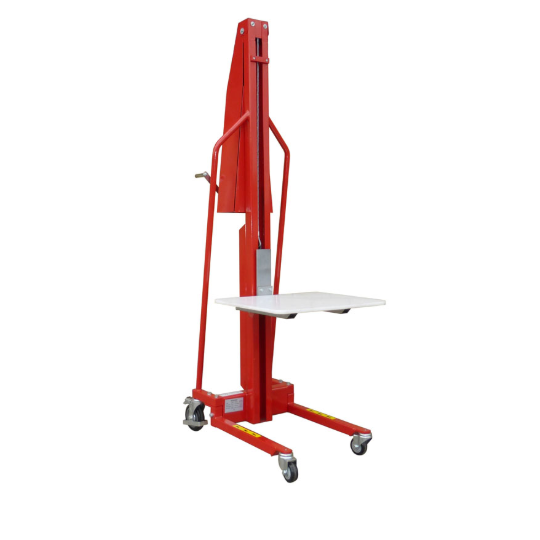

Description
Manual winch lift operation with automatic brake
• 200kg capacity @ 235mm LC
• Maximum lift 1500mm
• Supplied complete with detachable nylon platform plate as standard.
• Compact, lightweight and highly manoeuvrable
• Ideal for use in narrow aisles and confined spaces
• Mounted on four swivel castors, 2 x 75mm dia load wheels, 2 x 125mm dia steer wheels with wheel guards
Other interchangeable attachments are available – see illustrations above. Please note, attachments will be factory fitted to Work Positioner at time of order.
Specification
.tg {border-collapse:collapse;border-spacing:0;}
.tg td{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
overflow:hidden;padding:10px 5px;word-break:normal;}
.tg th{border-color:black;border-style:solid;border-width:1px;font-family:Arial, sans-serif;font-size:14px;
font-weight:normal;overflow:hidden;padding:10px 5px;word-break:normal;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-uqo3{background-color:#efefef;text-align:center;vertical-align:top}
.tg .tg-096r{color:#000000;text-align:left;vertical-align:top}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-kftd{background-color:#efefef;text-align:left;vertical-align:top}
.tg .tg-4cox{background-color:#680100;color:#ffffff;text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
.tg .tg-4k42{background-color:#680100;color:#ffffff;font-weight:bold;text-align:center;vertical-align:top}
| WORK POSITIONER |
| Type |
2556w |
| Capacity |
200kg |
| Load centre |
235mm |
| Min height to platform |
130mm |
| Max height to platform |
1500mm |
| Platform L x W |
470 x 600mm |
| Width between legs |
370mm |
| Overall width of legs |
455mm |
| Load wheels |
75mm dia |
| Steering wheels |
125mm dia |
| Overall L x W x H |
970 x 600 x 1920mm |
| Weight |
approx. 60kg |
| OPTIONAL EXTRAS |
| Attachment |
Type |
Size |
| Reel Boom |
2558w |
50mm dia x 600mm long |
| Double Spindle |
2559w |
47mm dia each x 450mm long |
| ‘V’ Block |
8438w |
74mm dia, 100kg rated |

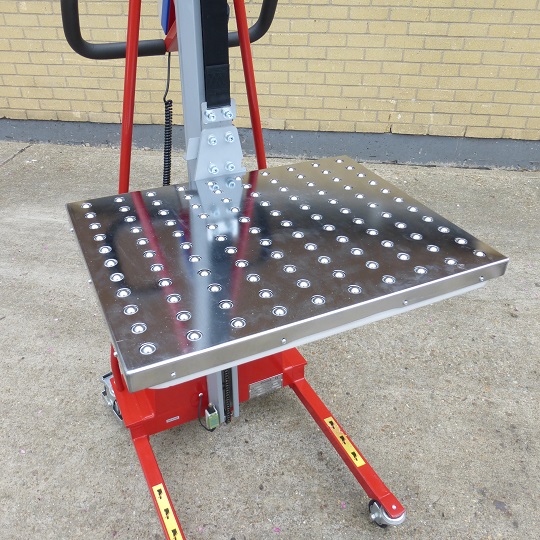

| Ball Transfer unit |
9712w |
610 x 480mm, 100kg capacity |
| Roller Platform (no stops) |
9713w |
500 x 420mm, 100kg capacity |
| Roller Platform (with stops) |
9714w |
500 x 420mm, 100kg capacity |
| Raised platform |
9715w |
200mm high |
| Jib & Hook |
9716w |
100kg, 500mm long |
